Name: Busch-Jaeger White 2CKA001724A4377 1 pc(s)
Brand: Busch-Jaeger
SKU: 3833629

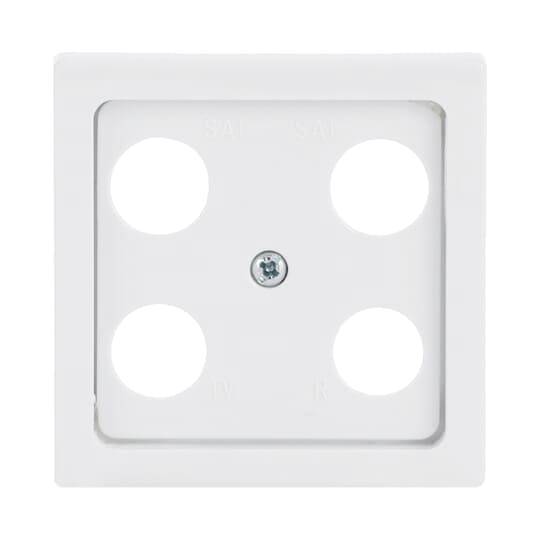

White square wall plate with four circular cutouts and a central screw, likely a cover for electrical or media outlets.

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Central disc studio white cover 1743-04-84

Busch & Jaeger Switch Product Range

Technical specifications

Usage: For data-connection casing
Mounting method: Fixing with screw
Material quality: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Surface design: Glossy
Antibacterial treatment: No.
Mounting type: Flush-mounted
Transparent: No.
Min Depth of the device socket 32 mm
Assembly: Base element with housing top
Device width 71 mm
Device height 71 mm
Device depth 55.39999999 mm
Bearing ring: Yes
With dust protection: No.
With hinged cover: No.
Exhaust direction: Sloped
Labelling field: With labeling field
With imprint: No.
Number of modules (for modular design): 1
With sockets/couplings: No.
Suitable for number of sockets/couplings: 2
With strain relief: No.
Shielded sockets: No.
Shielded housing: No.
Connector strip: No.
With illumination: No.

Type: Central disc studio white cover 1743-04-84

Product type: Main panel

Factory colour: White

Content: 1 pc(s)

Similar RAL: 9010

Material: Plastic

Mounting type: Flush mount

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3833629 Busch-Jaeger White 2CKA001724A4377 1 pc(s)

Description

As a cover for 4-way antenna socket EVU 02 F, GEVU 15 S from Hirschmann. Only suitable for use with spacer ring no. 1746-xxx, 1746/10-xxx. Design without hinged cover. (cf. 1746-xxx). Design line: Platform 63, future® linear, Busch-aXcent®, solo®, karat® design line Variant: Future®, future® linear, Busch-aXcent®, Busch-aXcent® pure

This text is machine translated.
