Name: CellPack 127403 Heatshrink Black 56 mm 16 mm Shrinkage:3:1 1 pc(s)
Brand: CellPack
SKU: 3782624
Availability: BackOrder

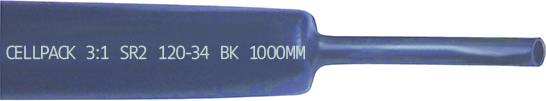

Blue insulated electrical connector labeled 'CELLPACK 3:1 SR2 120-34 BK 1000MM' with a long heat-shrink tube extending to the right.

Product type

Heatshrink

Nominal inside diameter (pre-shrinkage)

56 mm

Nominal diameter (post-shrinkage)

16 mm

Content

1 pc(s)

Factory colour

Black

Dispatches on Thu 29 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 10

Multiple: 10

Total (€ 40.99 / piece)

€ 409.90

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Heat shrink hose medium-walled, halogen-free, shrink ratio 3 : 1, without adhesive

1 pc(s)
Shrinkage: 3:1
Black
Nominal inside diameter (pre-shrinkage): 56 mm

Technical specifications

Product type: Heatshrink

Nominal inside diameter (pre-shrinkage): 56 mm

Nominal diameter (post-shrinkage): 16 mm

Factory colour: Black

Shrinkage: 3:1

Content: 1 pc(s)

Material: Polyolefin

Shrink temperature (min.): 125 °C

Min. temperature: -40 °C

Max. temperature: 120 °C

Manufacturer part #: 127403

Length: 1 m

Type: R2-SRH2

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3782624 CellPack 127403 Heatshrink Black 56 mm 16 mm Shrinkage:3:1 1 pc(s)

Description

The heat shrink tubes of type SR2/SRH2 are medium walled, without / with thermoplastic adhesive with a shrink ratio of 3:1. Typical areas of application are the pressure and moisture protection of cables as well as the use in shrink sleeves and shrink sleeves.

This text is machine translated.

Features

Main description: Medium-walled heat-shrink tubing
Additional description: Halogen-free, shrink rate 3 : 1, without adhesive
Family description: The SR2/SRH2 heat shrink tubing is medium-walled, without/with thermoplastic adhesive with a shrink ratio of 3:1. Typical areas of application are the pressure and moisture protection of cables as well as the use in shrink sleeves and shrink sleeves.
Notes: Standard lengths on roll can contain pieces, additional lengths on request.
Properties: Medium-walled, inscribable, resistant against chemical influences, stabilized against UV-rays, free of substances interfering with paint wetting, non-corrosive, non-melting, halogen-free, very good electrical properties, high tensile strength, cold-flow resistant (heat stable)
Applications: Insulation, pressure and moisture protection, suitable for heat-shrink sleeves and shrink sleeves

Description

Features

Main description: Medium-walled heat-shrink tubing
Additional description: Halogen-free, shrink rate 3 : 1, without adhesive
Family description: The SR2/SRH2 heat shrink tubing is medium-walled, without/with thermoplastic adhesive with a shrink ratio of 3:1. Typical areas of application are the pressure and moisture protection of cables as well as the use in shrink sleeves and shrink sleeves.
Notes: Standard lengths on roll can contain pieces, additional lengths on request.
Properties: Medium-walled, inscribable, resistant against chemical influences, stabilized against UV-rays, free of substances interfering with paint wetting, non-corrosive, non-melting, halogen-free, very good electrical properties, high tensile strength, cold-flow resistant (heat stable)
Applications: Insulation, pressure and moisture protection, suitable for heat-shrink sleeves and shrink sleeves
