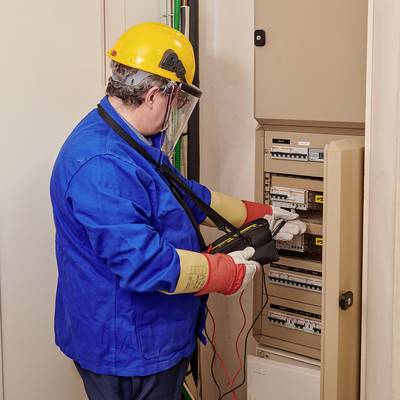

An electrician in blue workwear and a yellow hard hat is conducting tests on an open electrical cabinet using a multimeter.

1/6

Chauvin Arnoux

Datasheet (PDF)

7 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 410.92 / piece)

€

Only 7 Piece(s) available

Report legal concerns

Highlights & Details

C.A 6528 insulation meter

Insulation test below 250 / 500 / 1000 V.
Insulation resistance up to 11 GΩ
Manual, continuous or timer mode
Voltage measurement AC and AC+DC up to 700 V.
Continuity measurement with 200 mA
Optical alarm, blue/red display illumination

Technical specifications

Product type: Insulation tester

Test voltage: 250 V
500 V
1000 V

Reading type: Insulation resistance
AC voltage
DC voltage
Resistance

Continuity testing: 40 Ω

: Manufacturer's standards (no certificate)

Reading range - resistance: 50 kΩ to 11 GΩ

: IP40

Dim: (L x W x H) 63 x 218 x 95 mm

Weight: 760 g

Display type: Digital (LCD)

Insulation resistance (max.): 11 GΩ

Voltage reading range (max.): 700 V

Voltage reading range (min.): 1 V

Reading category: CAT IV 600 V

Width: 218 mm

Height: 95 mm

Length: 63 mm

Documents & Downloads

Datasheet

Datasheet 2255067 Chauvin Arnoux C.A 6528 Insulation tester 250 V, 500 V, 1000 V 11 GΩ

User & Safety Instructions

User & Safety Instructions 2255067 Chauvin Arnoux C.A 6528 Insulation tester 250 V, 500 V, 1000 V 11 GΩ

Description

The insulation tester CA 6528 was developed especially for field use: It is light, compact, robust and very easy to use, even with gloves.

Its use is optimally simple and comfortable:
- the particularly easy-to-read digital display shows the insulation resistance and the actual test voltage in two lines at the same time
- it has a two-color good/bad display
- the shock protection cover fits well in the hand
- the folding support ensures stable standing on flat surfaces
- the carrying case provides space for the measuring accessories and is equipped with a carrying strap for hands-free working
- the automatic shut-off function extends the battery life
- The test result is immediately visible through programmable alarm thresholds

The CA 6528 offers high security. The presence of dangerous voltages is detected automatically.

Because the insulation tester is designed for insulation resistance measurements below 250 V / 500 V / 1000 V, it is suitable for a large number of applications, especially in the safety inspection of electrical systems.

This text is machine translated.

Features

Transport bag for hands-free operation
HOLD button for holding a measurement
Large TEST start button
Rotary switch with 7 positions
Illuminated LCD display
4 Function buttons

Scope of delivery

1 carrying case for hands-free operation
1 set of test leads
1 red alligator clip
1 black test tip
6 LR6 or AA batteries
1 Safety data sheet
1 Quick start guide
1 test confirmation

Frequently Bought Together

(^*All information is plus legal VAT)

Chauvin Arnoux C.A 6528 Insulation tester 250 V, 500 V, 1000 V 11 GΩ

Chauvin Arnoux C.A 6528 Insulation tester 250 V, 500 V, 1000 V 11 GΩ

Conrad Electronic

VOLTCRAFT Industrial LR6 AA battery Alkali-manganese 3000 mAh 1.5 V 24 pc(s)

VOLTCRAFT Industrial LR6 AA battery Alkali-manganese 3000 mAh 1.5 V 24 pc(s)

Conrad Electronic

Fluke TPAK Magnetic holder Compatible with (details) Fluke digital multimeter series 110/170/180/280, 87 V, 1587

Fluke TPAK Magnetic holder Compatible with (details) Fluke digital multimeter series 110/170/180/280, 87 V, 1587

Conrad Electronic

Total price:

€ 490.74^*

What kind of Insulation Testers are you looking for?

Fluke isolation tester

Accessories

(^*All information is plus legal VAT)

The necessary accessories are required to use the article as described.

VOLTCRAFT Industrial LR6 AA battery Alkali-manganese 3000 mAh 1.5 V 24 pc(s)

VOLTCRAFT Industrial LR6 AA battery Alkali-manganese 3000 mAh 1.5 V 24 pc(s)

Conrad Electronic

VOLTCRAFT Industrial LR6 AA battery Alkali-manganese 3000 mAh 1.5 V 1 pc(s)

VOLTCRAFT Industrial LR6 AA battery Alkali-manganese 3000 mAh 1.5 V 1 pc(s)

Conrad Electronic

More interesting products

(^*All information is plus legal VAT)

Chauvin Arnoux C.A 6524 Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 200 GΩ

Chauvin Arnoux C.A 6524 Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 200 GΩ

Conrad Electronic

VOLTCRAFT ET-100 Insulation tester 125 V, 250 V, 500 V, 1000 V 400 MΩ

VOLTCRAFT ET-100 Insulation tester 125 V, 250 V, 500 V, 1000 V 400 MΩ

Conrad Electronic

VOLTCRAFT ET-200 Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 20 GΩ

VOLTCRAFT ET-200 Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 20 GΩ

Conrad Electronic

VOLTCRAFT ET-240 PV Insulation tester 125 V, 250 V, 500 V, 1000 V 4000 MΩ

VOLTCRAFT ET-240 PV Insulation tester 125 V, 250 V, 500 V, 1000 V 4000 MΩ

Conrad Electronic

HT Instruments PV-ISOTEST Insulation tester 100 MΩ

HT Instruments PV-ISOTEST Insulation tester 100 MΩ

Conrad Electronic

Fluke 1587 FC Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 2 GΩ

Fluke 1587 FC Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 2 GΩ

Conrad Electronic

Fluke 1503 Insulation tester 500 V, 1000 V 2 GΩ

Fluke 1503 Insulation tester 500 V, 1000 V 2 GΩ

Conrad Electronic

Megger MIT410/2 Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 100 GΩ

Megger MIT410/2 Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 100 GΩ

Conrad Electronic

Kyoritsu KEW-3125B Insulation tester 250 V, 500 V, 1000 V, 2500 V, 5000 V 1 TΩ

Kyoritsu KEW-3125B Insulation tester 250 V, 500 V, 1000 V, 2500 V, 5000 V 1 TΩ

Conrad Electronic

Extech MG320 Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 20 GΩ

Extech MG320 Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 20 GΩ

Conrad Electronic

Fluke 1507 Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 10 GΩ

Fluke 1507 Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 10 GΩ

Conrad Electronic

HT Instruments M70 Insulation tester 250 V, 500 V, 1000 V 4 GΩ

HT Instruments M70 Insulation tester 250 V, 500 V, 1000 V 4 GΩ

Conrad Electronic

Fluke 1587/I400 FC Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 2 GΩ

Fluke 1587/I400 FC Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 2 GΩ

Conrad Electronic

Kyoritsu KEW-3005A Insulation tester 250 V, 500 V, 1000 V 2000 MΩ

Kyoritsu KEW-3005A Insulation tester 250 V, 500 V, 1000 V 2000 MΩ

Conrad Electronic

Gossen Metrawatt M 540 C Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 400 MΩ

Gossen Metrawatt M 540 C Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 400 MΩ

Conrad Electronic

Megger MIT320 Insulation tester 250 V, 500 V, 1000 V 999 MΩ

Megger MIT320 Insulation tester 250 V, 500 V, 1000 V 999 MΩ

Conrad Electronic

Sonel MIC-5005 Insulation tester Calibrated to (ISO standards) 250 V, 500 V, 1000 V, 2500 V, 5000 V 15 TΩ

Sonel MIC-5005 Insulation tester Calibrated to (ISO standards) 250 V, 500 V, 1000 V, 2500 V, 5000 V 15 TΩ

Conrad Electronic

Megger S1-1568/2-EU EXPERT 15kV IRT 2024 PIP Insulation tester 250 V, 500 V, 1000 V, 2500 V, 5000 V, 10000 V, 15000 V 35

Megger S1-1568/2-EU EXPERT 15kV IRT 2024 PIP Insulation tester 250 V, 500 V, 1000 V, 2500 V, 5000 V, 10000 V, 15000 V 35

Conrad Electronic

Fluke 1587/MDT FC Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 2 GΩ

Fluke 1587/MDT FC Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 2 GΩ

Conrad Electronic

Sonel MIC-10k1 Insulation tester Calibrated to (ISO standards) 50 V, 100 V, 250 V, 500 V, 1000 V, 2500 V, 5000 V, 10000

Sonel MIC-10k1 Insulation tester Calibrated to (ISO standards) 50 V, 100 V, 250 V, 500 V, 1000 V, 2500 V, 5000 V, 10000

Conrad Electronic

Chauvin Arnoux C.A 6534 Insulation tester 10 V, 25 V, 100 V, 250 V, 500 V 50 GΩ

Chauvin Arnoux C.A 6534 Insulation tester 10 V, 25 V, 100 V, 250 V, 500 V 50 GΩ

Conrad Electronic

Chauvin Arnoux C.A 6532 Insulation tester 50 V, 100 V 20 GΩ

Chauvin Arnoux C.A 6532 Insulation tester 50 V, 100 V 20 GΩ

Conrad Electronic

Chauvin Arnoux C.A 6522 Insulation tester 250 V, 500 V, 1000 V 40 GΩ

Chauvin Arnoux C.A 6522 Insulation tester 250 V, 500 V, 1000 V 40 GΩ

Conrad Electronic

Extech MG310 Insulation tester 250 V, 500 V, 1000 V 5.5 GΩ

Extech MG310 Insulation tester 250 V, 500 V, 1000 V 5.5 GΩ

Conrad Electronic

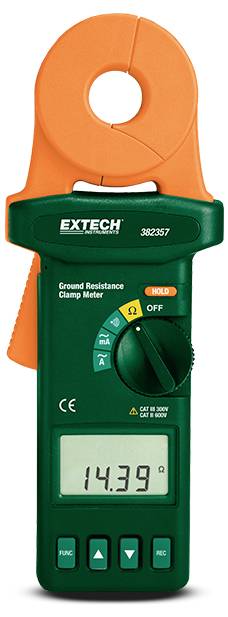

Extech 382357 Earth ground meter
