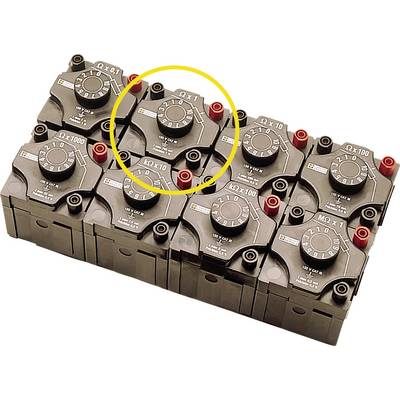

Chauvin Arnoux Decade box Resistance 1 %
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 172.26 / piece)
€ 172.26
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Resistance decade 1...10 ohms
- Simple decade of resistance for use in training, laboratories, research and development and maintenance
- Casing with 1 decade capacitor with 11-digit selector switch (0 = short circuit) and with 3 safety sockets Ø 4 mm
- Decade: Ω x 1
- Range 1 to 10 Ω
- I max. 750 mA
- Accuracy 1% ± 5 mΩ
Technical specifications
- Tolerance 1% ± 5mΩ
- Decade box - max. Current
- 0.1 to 1 Ω - 1 A
- 1 to 10 Ω -750 mA
- 10 to 100 Ω - 250 mA
- 100 to 1000 Ω - 75 mA
- 1 to 10 kΩ - 25 mA
- 10 to 100 kΩ - 7.5 mA
- 100 to 1000 kΩ - 2 mA
- 1 to 10 MΩ - 0.2 mA
- Adjustment range
1 to 10 Ω
- Steps
1 Ω
- Max. supply voltage
7.5 V
- Dim
(L x W x H) 72 x 90 x 72 mm
- Weight
220 g
- Height
72 mm
- Length
72 mm
- Width
90 mm
Manufacturer's standards (no certificate)
- Functions
Resistance
- Tolerance
1 %
- Plastic free packaging
Plastic-free packaging
- Product type
Decade box
Documents & Downloads
Datasheet
Datasheet 2793070 Chauvin Arnoux Decade box Resistance 1 %
User & Safety Instructions
User & Safety Instructions 2793070 Chauvin Arnoux Decade box Resistance 1 %
Warranty Terms
Warranty Terms 2793070 Chauvin Arnoux Decade box Resistance 1 %
Description
Resistance decades with a decade according to safety standards.
This text is machine translated.
This text is machine translated.
Features
- Components for mechanical and electrical structures
- - Selection via rotary switch
- - Stop prevents accidental turning from 10 to 1
- - Safe earth contact
- - Output: Safety sockets with Ø 4mm
- - Typical accuracy: 0.5%
