Buy Cosinus R1-1000 Decade box Resistance 1 %

'Mini Ω Decade R1 - 1000' Resistance decade with rotary switches and measurement terminals, suitable for resistance measurements up to 4 MΩ.

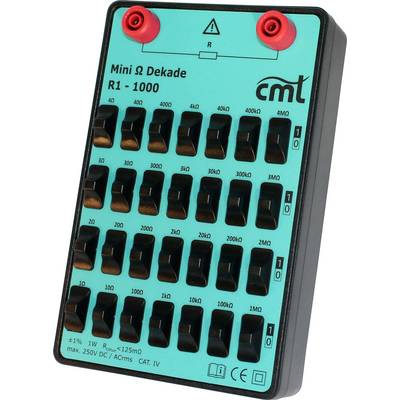

Black resistance switches on green panel with label 'Mini Ω Decade R1 - 1000'; maximum 250V DC/ACrms, Category IV.

1/2

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 318.49 / piece)

€ 318.49

plus VAT.

Only 3 Piece(s) available

Report legal concerns

Highlights & Details

R1-1000 Resistance Decade

Range 1 Ω - 11.11111 MΩ
Load 1 W
Max. 250 V (AC/DC)

Technical specifications

Tolerance: 1%
Load 1 W
Residual resistance 125 mΩ
Max. 250 V/AC/DC
Temperature coefficient: 50 ppm

Adjustment range: 1 Ω - 11.11111 M Ω

Steps: 1 Ω

Max. supply voltage: 250 V

Dim: (L x W x H) 170 x 110 x 23 mm

Weight: 285 g

Height: 23 mm

Length: 170 mm

Width: 110 mm

: Manufacturer's standards (no certificate)

Functions: Resistance

Reading category: CAT IV 300 V

Tolerance: 1 %

: - input/output voltage 1 W

Accuracy: - input/output voltage 1 %

Type: Decade resistor

Connection: 4 mm safety sockets

Product type: Decade box

Documents & Downloads

Datasheet

Datasheet 101389 Cosinus R1-1000 Decade box Resistance 1 %

User & Safety Instructions

User & Safety Instructions 101389 Cosinus R1-1000 Decade box Resistance 1 %

Description
