Name: Circuit breakers 3-pin 250 A 8 makers, 8 breakers 690 V AC Siemens 3KF33254LF11
Brand: Siemens
SKU: 1704762
Availability: BackOrder

Siemens electrical circuit breaker, grey housing and switch, suitable for controlling and protecting electrical circuits.

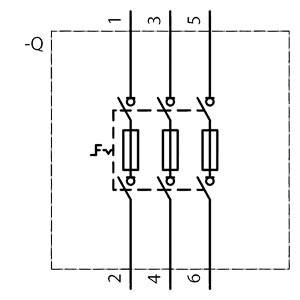

Circuit diagram shows an electromechanical switch with three parallel resistors, labelled from 1 to 6.

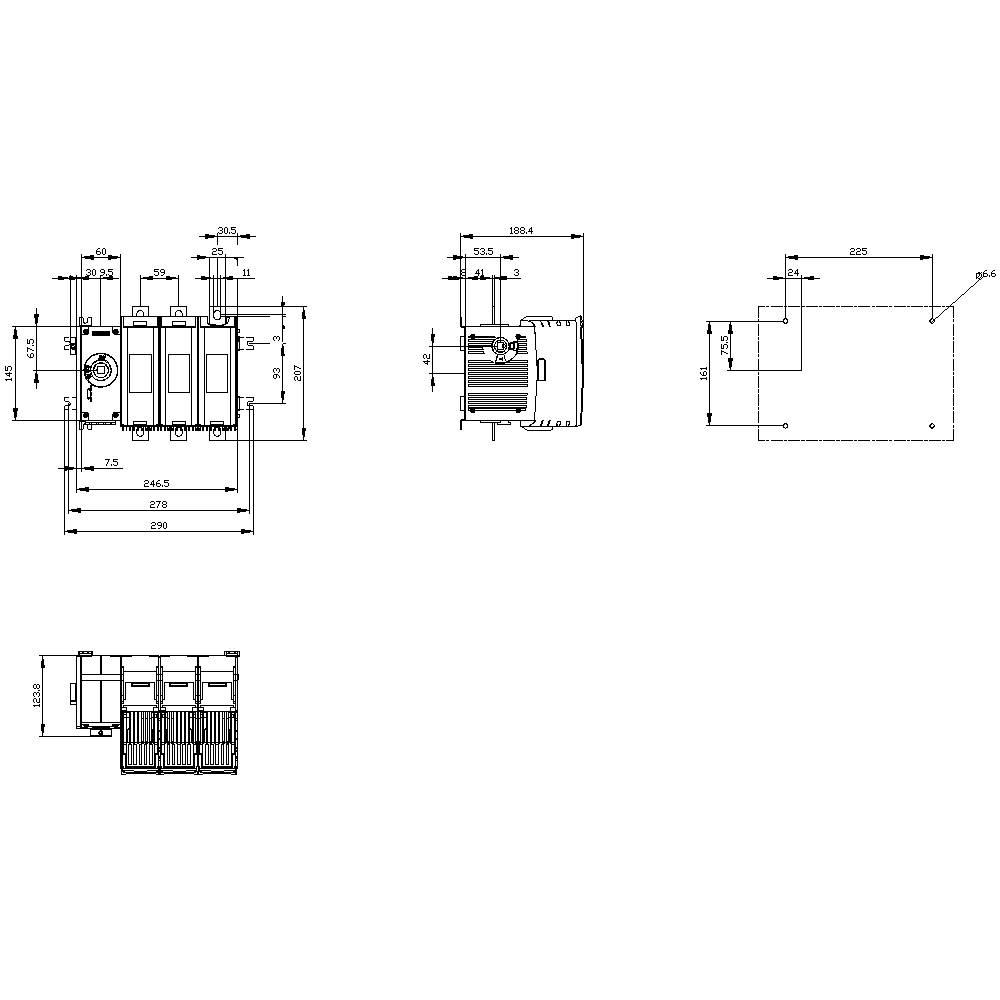

Technical drawing of a device with multiple views and dimensions, showing various dimensions and technical details.

1/3

Image similar

Product type

Circuit breakers

Nominal voltage

690 V AC

Number of pins

Nominal current - rounded value

250 A

Contact type

8 makers

8 breakers

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 6 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 475.00 / piece)

€ 475.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Protection class: IP20
Isolation voltage: 1000 V
Ambient temperature: -25 °C to +70 °C
Surge voltage resistance: 12 kV
Mechanical life: 10000
Electrical life: 5000
Mounting type: floor mounting
Design of the electrical connection: flat connector
Size of the switch disconnector: 3
Power loss: 121.5 W

Product type: Circuit breakers

Contact type: 8 makers
8 breakers

Operating voltage: 690 V AC

Nominal voltage: 690 V AC

Number of pins: 3

Dim: (W x H x D) 249.5 x 207 x 188.5 mm

Nominal current: 250 A

Nominal current - rounded value: 250 A

Type: Switch disconnectors with fuses 3 KF

Width: 249.5 mm

Height: 207 mm

Depth: 188.5 mm

: Other

: 250 A

: 3

: 100 kA

: IP00

: NH0, NH1

: FALSE

: Flat plug-in connection

: TRUE

: Other

: TRUE

: TRUE

: 132 kW

: 8 kA

: TRUE

: FALSE

: FALSE

: 690 V

: FALSE

: FALSE

: Left

UKCA: yes
