Name: Circuit breakers 4-pin 800 A 8 makers, 8 breakers 690 V AC Siemens 3KF54800LF11
Brand: Siemens
SKU: 1744556
Availability: BackOrder

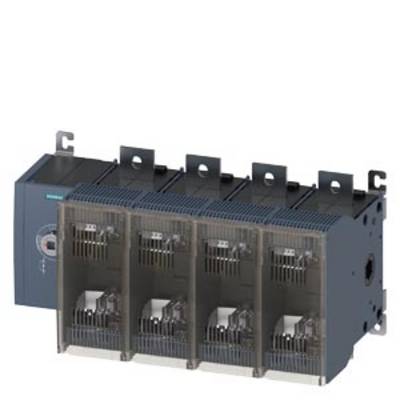

A module for energy distribution and control with multiple connections and visible ventilation slots.

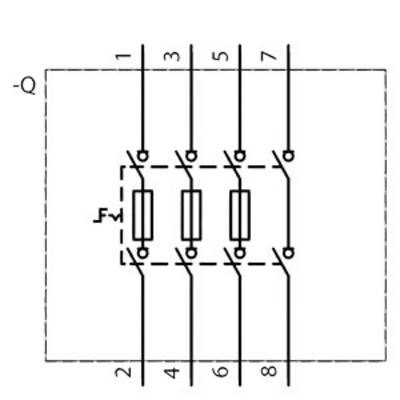

Switching symbol shows four resistors connected in parallel within a rectangle. Numbered connections: 1 to 8, with arrangement of 1-2, 3-4, 5-6, 7-8.

Circuit breakers 4-pin 800 A 8 makers, 8 breakers 690 V AC Siemens 3KF54800LF11-2

1/3

Image similar

Product type

Circuit breakers

Nominal voltage

690 V AC

Number of pins

Nominal current - rounded value

800 A

Contact type

8 makers

8 breakers

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 6 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2,095.00 / piece)

€ 2,095.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Protection class: IP20
Isolation voltage: 1000 V
Ambient temperature: -25 °C to +70 °C
Surge voltage resistance: 12 kV
Mechanical life: 6000
Electrical life: 1500
Mounting type: floor mounting
Design of the electrical connection: flat connector
Size of the switch disconnector: 5
Power loss: 330 W

Product type: Circuit breakers

Contact type: 8 makers
8 breakers

Operating voltage: 690 V AC

Nominal voltage: 690 V AC

Number of pins: 4

Dim: (W x H x D) 492 x 270 x 262 mm

Nominal current: 800 A

Nominal current - rounded value: 800 A

Type: Switch disconnectors with fuses 3 KF

Width: 492 mm

Height: 270 mm

Depth: 262 mm

: Other

: 800 A

: 4

: 100 kA

: IP00

: NH2, NH3

: FALSE

: Flat plug-in connection

: TRUE

: Other

: TRUE

: TRUE

: 400 kW

: 22 kA

: TRUE

: FALSE

: FALSE

: 690 V

: FALSE

: FALSE

: Front side

UKCA: yes
