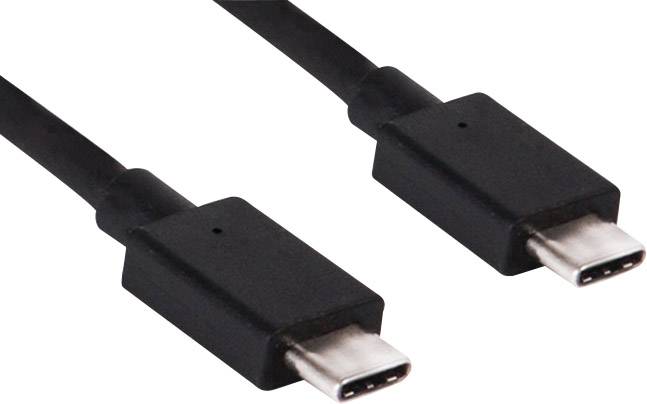

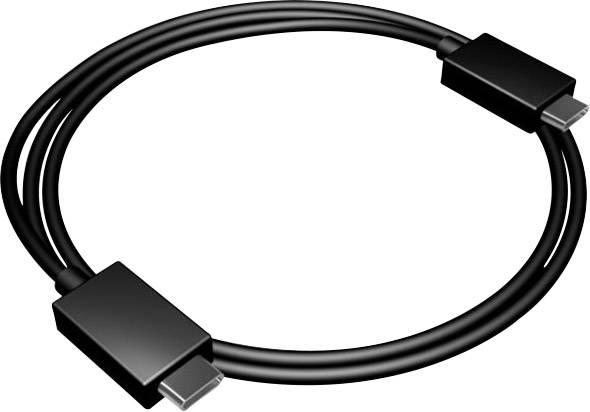

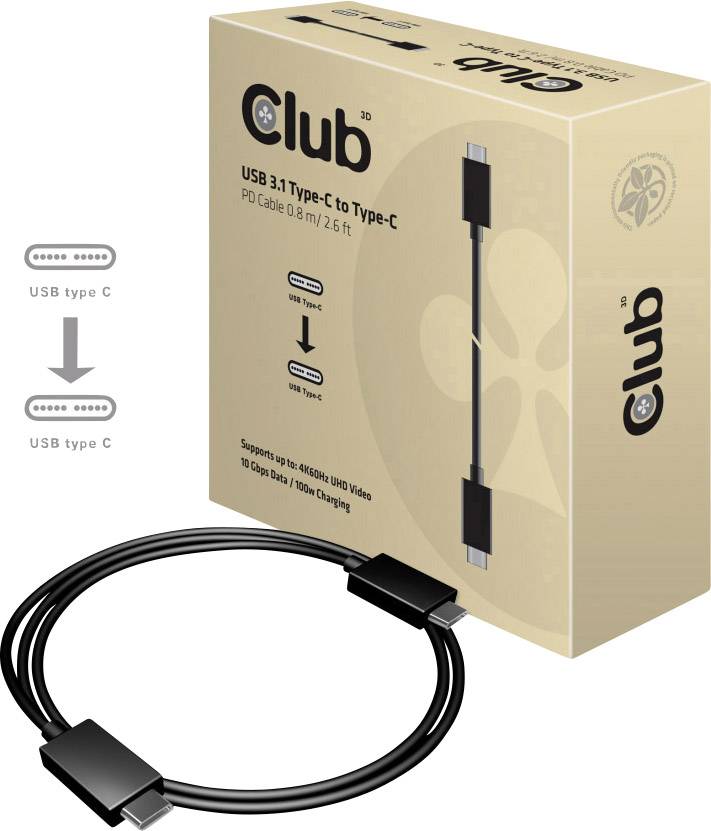

club3D USB cable USB 3.2 1st Gen USB-C® plug, USB-C® plug 0.80 m Black CAC-1522
Product type
USB cable
Cable specs
USB 3.2 1st Gen
Version
Cable
Connection type
USB-C® to USB-C®
Connections
USB-C® plug
USB-C® plug
EAN:
Part number:
Item no:
Total (€ 20.99 / piece)
€ 20.99
incl. VAT
14-day return policy included
Highlights & Details
Club 3D USB 3.1 connection cable USB-C™/USB-C™ 0.8 m
- USB 3.1 video, data, and the loading with a single cable.
- Equipped with E-marker chip for best performance and compatibility
- Supports resolutions up to 4K Ultra HD 3840 x 2160 @ 60 Hz and 3D video
- Supports USB 3.1 Gen 2 Super Speed + up to 10 Gbps
- Supports USB Power Delivery 2.0, max. 20 V/5 A or 100 Watt
Technical specifications
- Product type
USB cable
- Cable specs
USB 3.2 1st Gen
- Version
Cable
- Connection type
USB-C® to USB-C®
- Connections
USB-C® plug
USB-C® plug
- Factory colour
Black

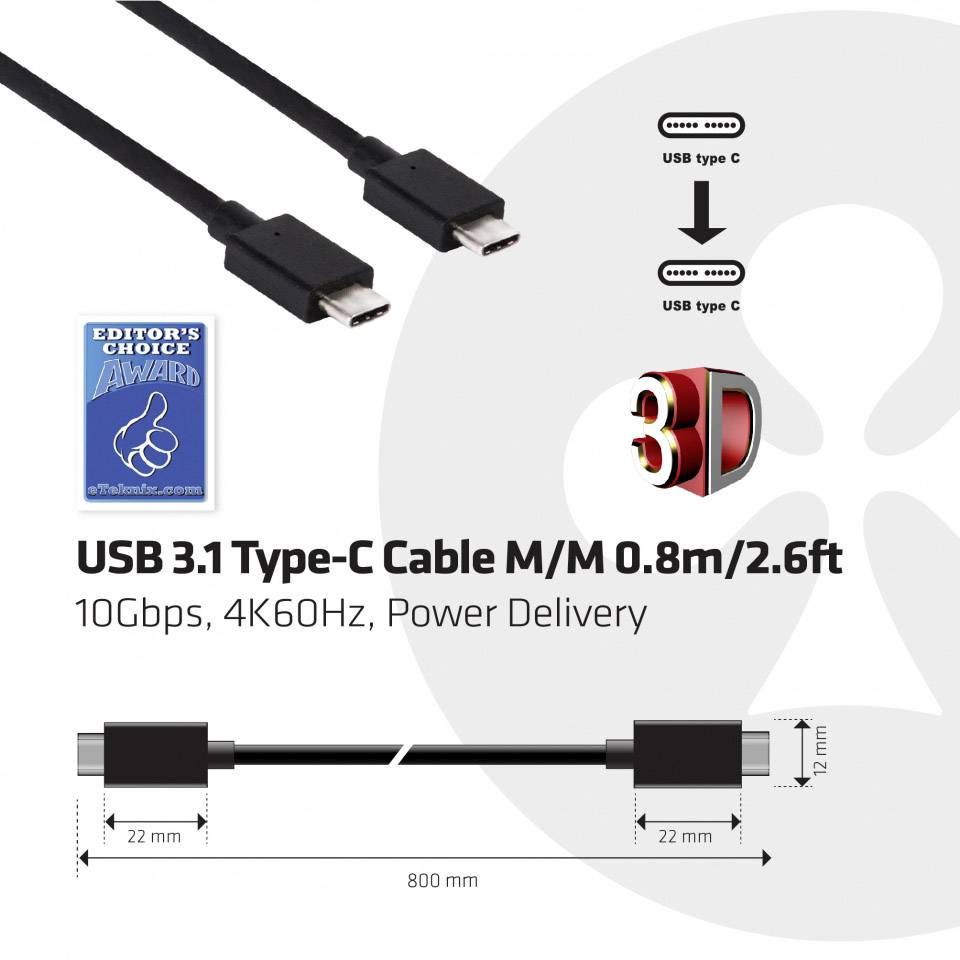

- Cable length
0.80 m
- Cable design
Round
- Connector version
straight
- Transfer rate (max.)
10 GBit/s
- Max. power
100 W @ 20 V / 5.0 A
- Connection type
USB
- Type A
USB-C® plug
- Type B
USB-C® plug
- No. of A connectors
1 x
- No. of B connections
1 x
- Cable use
USB 3.2 1st Gen (USB 3.0)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1494435 club3D USB cable USB 3.2 1st Gen USB-C® plug, USB-C® plug 0.80 m Black CAC-1522
Description
The Club 3D USB 3.1 USB-C™ PD cable enables the connection of your notebook, tablet or smart phone with USB-C™ output with the latest USB-C™ peripheral products, accessories and charging devices. It offers video, data, and power via a single cable and is equipped with an E-marker chip. The E-marker is an integrated circuit, which makes it possible to recognize the connected products, the capabilities of the cable.
This feature provides the optimum performance between the connected products. Supports up to 4 K 60 Hz ULTRA HD video, USB 3.1 SuperSpeed + data and up to 10 Gbps, as well as up to 5 A output or a maximum loading capacity of 100 Watts for charging or operation of your USB-C™ enabled notebooks, tablets or smartphones. For Video is DisplayPort™ old mode support during the source is required.
This text is machine translated.
This feature provides the optimum performance between the connected products. Supports up to 4 K 60 Hz ULTRA HD video, USB 3.1 SuperSpeed + data and up to 10 Gbps, as well as up to 5 A output or a maximum loading capacity of 100 Watts for charging or operation of your USB-C™ enabled notebooks, tablets or smartphones. For Video is DisplayPort™ old mode support during the source is required.
This text is machine translated.
Features
- Symmetrical USB-C™ plug on both sides
- Compatible with Thunderbolt 3
