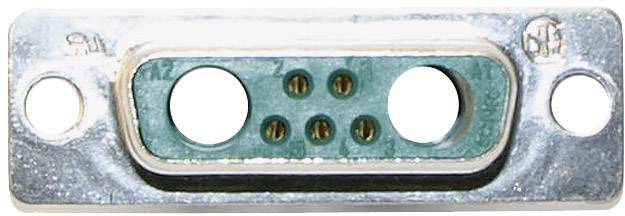

Conec 7W2 3007W2SCM99A10X D-SUB hybrid 180 ° Solder bucket 1 pc(s)
Product type
D-SUB hybrid
Connector type
Socket, vertical vertical
Connection
Solder bucket
Content
1 pc(s)
Type
3007W2SCM99A10X
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 5.99 / piece)
€ 5.99
incl. VAT
14-day return policy included
Highlights & Details
Conec 7W2 3007W2SCM99A10X D-SUB hybrid 180 ° Solder bucket 1 pc(s)
- D-SUB hybrid
Technical specifications
- Type
3007W2SCM99A10X
- Product type
D-SUB hybrid
- Connector type
Socket, vertical vertical
- Connection
Solder bucket
- Connection angle
180°
- Content
1 pc(s)
- Layout
2 high current/coaxial pins
5 signal pins
- Manufacturer part #
3007W2SCM99A10X
- Material (details)
Zinc-plated steel
- RoHS-compliant
- Features
+ clearance hole
- Temperature range
-55 - +125 °C
- Type
7W2
- Type
7 Signal-/2 special contacts
- Connection
-
Documents & Downloads
Datasheet
Datasheet 732872 Conec 7W2 3007W2SCM99A10X D-SUB hybrid 180 ° Solder bucket 1 pc(s)
User & Safety Instructions
User & Safety Instructions 732872 Conec 7W2 3007W2SCM99A10X D-SUB hybrid 180 ° Solder bucket 1 pc(s)
Description
Scope of delivery
- Without high current contacts (with signal contacts)
- This text is machine translated.
