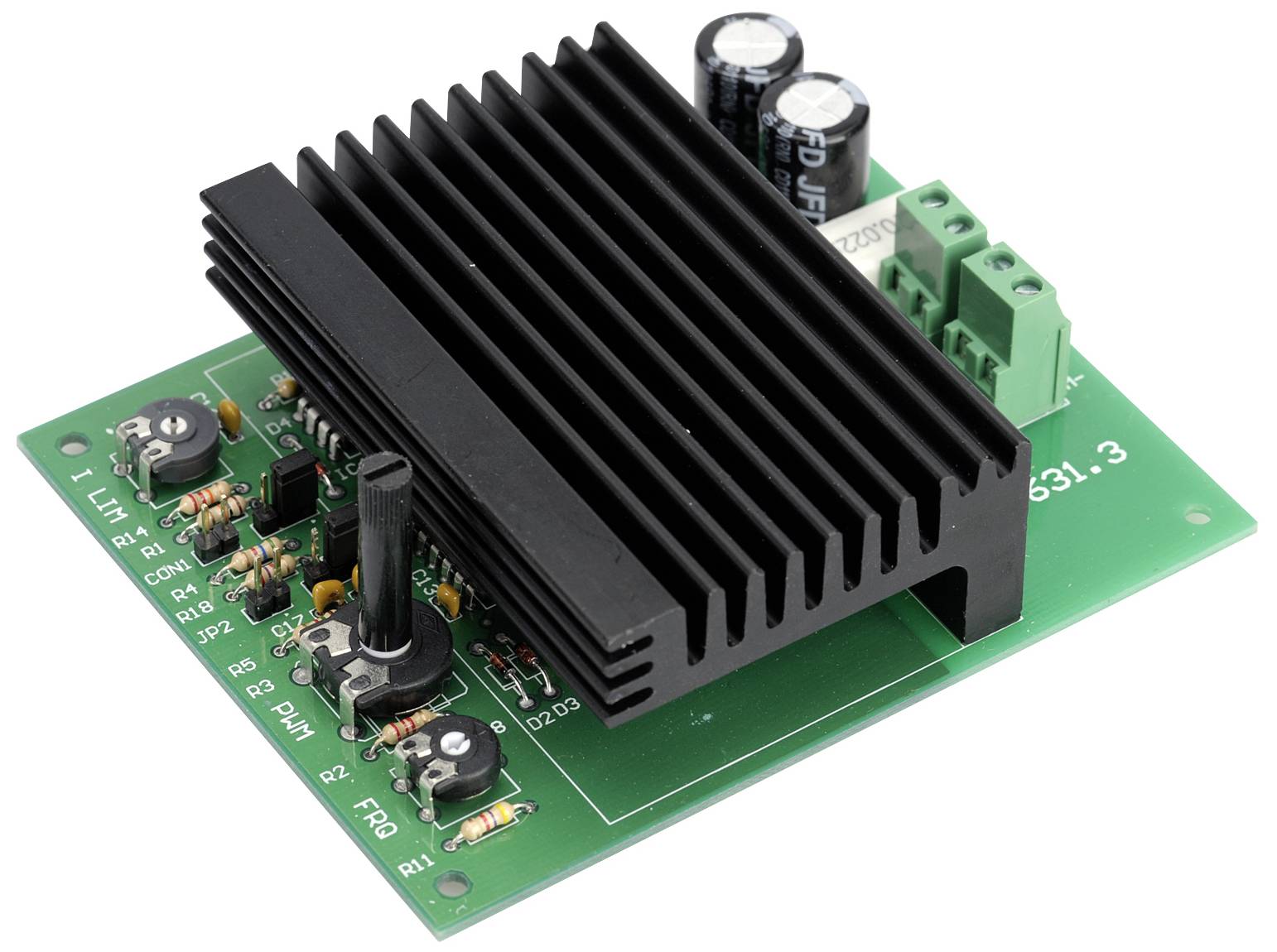

Conrad Components 192287 DC speed controller Assembly kit 12 V DC, 24 V DC 10 A

Conrad Components 192287 DC speed controller Assembly kit 12 V DC, 24 V DC 10 A-0
Three red WIMA capacitors, each marked with '0.1 100-'. They are arranged side by side with two terminals at the bottom.
'Electrical component with three terminals: input, output and ground. Number above: 14 71 09.'
Sketch shows two horizontal distances of '26' each with an intermediate spacing of '3.9'. Diameters at the top 'Ø 1.6' and 'Ø 0.6'.
Conrad Components 192287 DC speed controller Assembly kit 12 V DC, 24 V DC 10 A-4

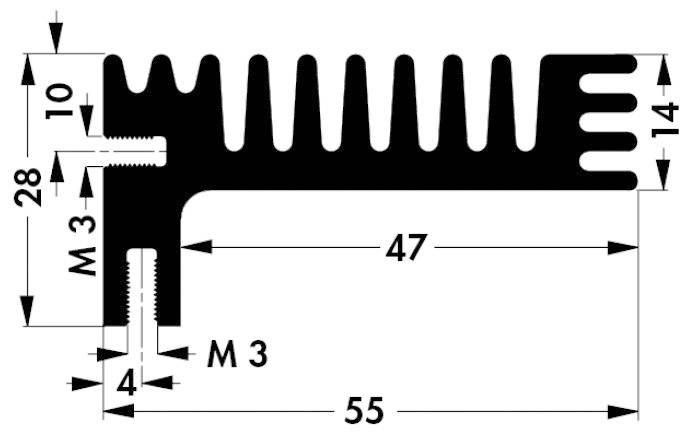

Heatsink profile with dimensions: Width 55 mm, Height 28 mm, vertical fins 14 mm high, horizontal fins 10 mm high. M3 screw thread.
Five technical drawings of mounting rings with dimensions in millimetres. Differences in diameters and heights are visible.
Technical drawing of a connector with dimensions: diameter 9 mm and 3.7 mm, various lengths and detailed views.
Technical drawing of a component with dimensions in millimetres. Left: semi-circular shape, 10.3 wide. Right: circle with 4 mm diameter, holes.
Technical drawing of a circular component with a central hole, dimensionally specified with a 15 mm diameter and 12.5 mm in height.
Technical drawing of an electronic component with dimensions: width (W), height (H), length (L), diameter (d), pitch (P), and wire exit.
Technical drawing of a three-pole connector. Dimensions and distances are given in millimetres. Top view and side view.
1/12
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 27.99 / piece)
€ 47.99
-42 %
€ 27.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Conrad Components 192287 DC speed controller Assembly kit 12 V DC, 24 V DC 10 A

  • Continuous adjustment.
  • Minimal power loss
  • Symbol image for Conrad Components 192287 DC speed controller Assembly kit 12 V DC, 24 V DC 10 A
  • A schematic representation of a piston in a cylinder, with the piston shown on the left side and the cylinder on the right side.
  • Black and white pie chart showing the distribution, consisting of two equal-sized segments.

Technical specifications

  • Speed setting: 0 - 100% via potentiometer or external control voltage.
Operating voltage

12 - 24 V DC

Product type

DC speed controller

Operating voltage

12 V DC

24 V DC

Output rating

0 - 10 A

Version

Assembly kit

Output rating

240 W

Dim

(L x W) 110 mm x 90 mm

Output current

10 A

Width

90 mm

Length

110 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 192287 Conrad Components 192287 DC speed controller Assembly kit 12 V DC, 24 V DC 10 A

Information

Information 192287 Conrad Components 192287 DC speed controller Assembly kit 12 V DC, 24 V DC 10 A

Information 192287 Conrad Components 192287 DC speed controller Assembly kit 12 V DC, 24 V DC 10 A

Conformity certificate

Conformity certificate 192287 Conrad Components 192287 DC speed controller Assembly kit 12 V DC, 24 V DC 10 A

Description

Continuously adjustable speed for low-voltage electric motor. This motor is mainly used with DC power drills, model cars, windshield wiper drives as well as electronic tools. Due to the pulse duration control, which works with an adjustable frequency between 600 Hz and approx. 2 kHz, the power loss is kept minimal even at low speeds. The output current from 0 to 10 A can be continuously adjusted with a trim-pot.

Features

  • speed adjustable from 0 – 100 %.
