Crouzet SSR 84137660N 20 A Switching voltage (max.): 100 V AC DC circuit 1 pc(s)

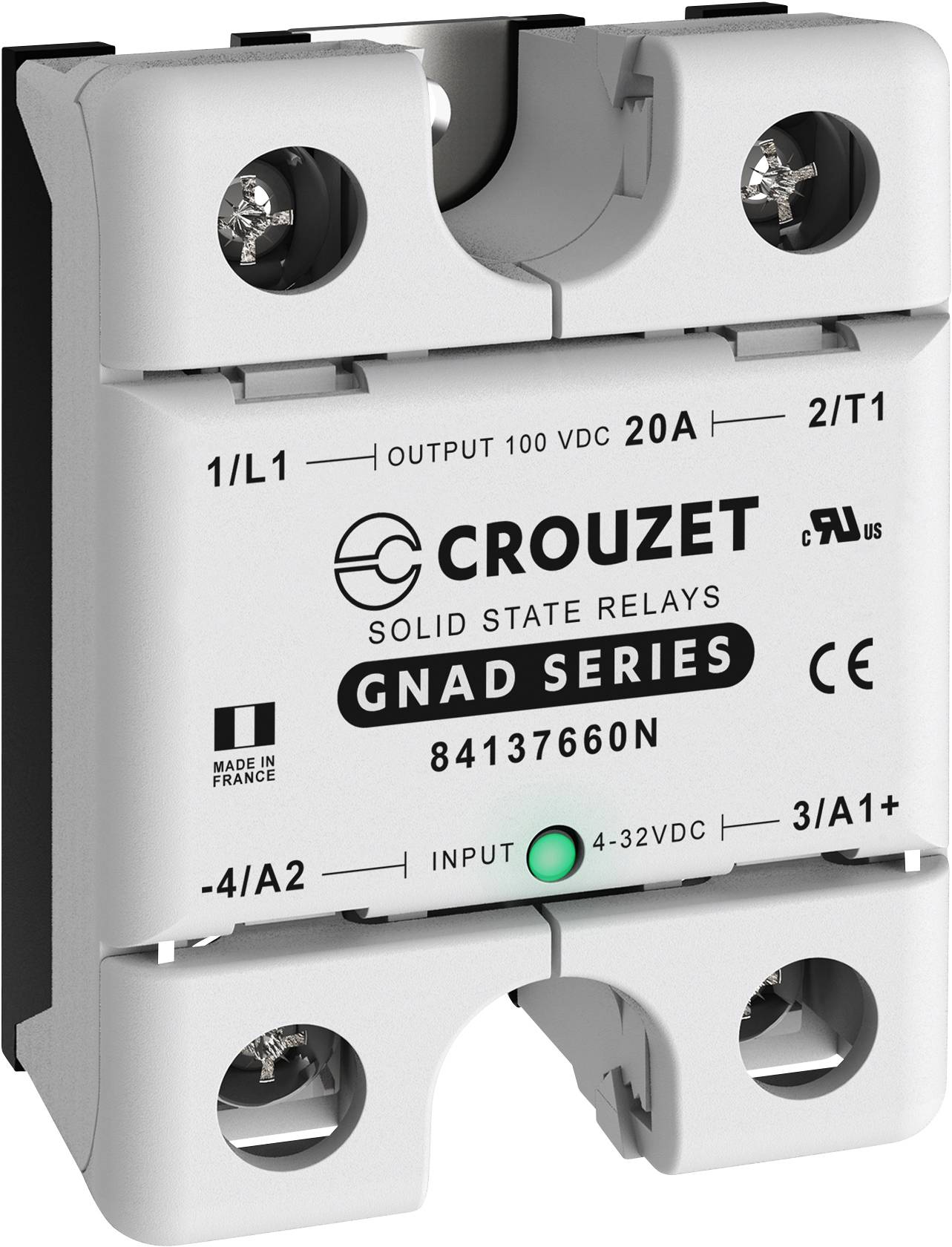

Crouzet semiconductor relay, GNAD series, model number 84137660N, with an output of 100 VDC and 20 A.
Crowd raising hands at a concert with an illuminated stage. Light bulb symbol in the top right indicating an idea.
An engineer wearing a hard hat and carrying a tablet is inspecting an industrial facility with several blue pumps. A pump symbol is prominent in the foreground.
A female baker in work attire opens an oven where several trays of bread rolls are being baked. An icon for baking appears on the right.
Two workers in protective clothing inspect a large industrial facility under a sunny sky. A high-voltage symbol is displayed.
1/5
Product type
SSR
Control voltage (min.)
4 V DC
Control voltage (max.)
32 V DC
Switching voltage (max.)
100 V AC
Current load (max.)
20 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 89.99 / piece)
€ 89.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Solid State Relays

  • A triangular sign with the letters 'D', 'V', 'E'.
  • 'CRAUS' logo in stylised lettering, predominantly in capital letters, on a white background.

Technical specifications

Product type

SSR

Type

GNAD20DM

Switching type

DC circuit

Connection

Screw terminal

Control voltage (min.)

4 V DC

Control voltage (max.)

32 V DC

Control voltage range

4 - 32 V DC

Switching voltage (min.)

5 V DC

Switching voltage (max.)

100 V AC

Current load (max.)

20 A

Width

38 mm

Height

50 mm

Length

74 mm

RoHS-compliant

Yes

Content

1 pc(s)

Documents & Downloads

Datasheet

Datasheet 2304056 Crouzet SSR 84137660N 20 A Switching voltage (max.): 100 V AC DC circuit 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2304056 Crouzet SSR 84137660N 20 A Switching voltage (max.): 100 V AC DC circuit 1 pc(s)

Information

Information 2304056 Crouzet SSR 84137660N 20 A Switching voltage (max.): 100 V AC DC circuit 1 pc(s)

Description


Market application:
HEATING ELEMENTS - no switch-on surge current

• ovens
• HVAC
• Textiles
• Soldering device
• Drying
• Hot forms
• Infrared heating
• Heating of residential buildings
• Plastic injection molding/extrusion
• Commercial food processing machines

MOVEMENT - strong starting current

• Blower
• Pumps
• Elevators
• Winds
• Lifting equipment
• Compressors
• Conveyor systems
• Fitness equipment with motor

LIGHTING - strong switch-on currents

• Theater
• warehouses
• office space
• Cinemas and stages
• Airport drive
• Roads and roads
• Hazard locations and flashing systems

MISCELLANEOUS

• Converter
• Solenoid valves
• switched-mode power supplies
• Inverter
• electromagnets
• Transformers
• Adjusting devices
• Compensation capacitors
• Uninterruptible power supplies
