Name: Crouzet SSR 84137870N 40 A Switching voltage (max.): 60 V AC DC circuit 1 pc(s)
Brand: Crouzet
SKU: 2304059
Availability: SoldOut

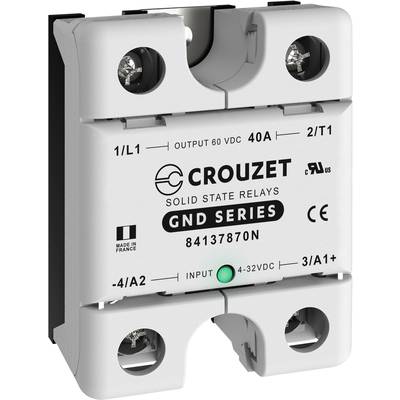

A Crouzet solid-state relay, model GND Series, with an output power of 60 VDC and 40 A. Manufactured in France.

Crowd raising hands at a concert with an illuminated stage. Light bulb symbol in the top right indicating an idea.

An engineer wearing a hard hat and carrying a tablet is inspecting an industrial facility with several blue pumps. A pump symbol is prominent in the foreground.

A female baker in work attire opens an oven where several trays of bread rolls are being baked. An icon for baking appears on the right.

Two workers in protective clothing inspect a large industrial facility under a sunny sky. A high-voltage symbol is displayed.

1/5

Packaging type

Piece

Product type

SSR

Control voltage (min.)

4 V DC

Control voltage (max.)

32 V DC

Switching voltage (max.)

60 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 95.99 / piece)

€ 95.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Solid State Relays

Technical specifications

Packaging type: Piece

Product type: SSR

Type: GND40DM

Switching type: DC circuit

Connection: Screw terminal

Control voltage (min.): 4 V DC

Control voltage (max.): 32 V DC

Control voltage range: 4 - 32 V DC

Switching voltage (min.): 5 V DC

Switching voltage (max.): 60 V AC

Current load (max.): 40 A

Output voltage (max.): 60 V AC

Width: 38 mm

Height: 50 mm

Length: 74 mm

RoHS-compliant: Yes

Permanent current (max.): 40 A

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2304059 Crouzet SSR 84137870N 40 A Switching voltage (max.): 60 V AC DC circuit 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2304059 Crouzet SSR 84137870N 40 A Switching voltage (max.): 60 V AC DC circuit 1 pc(s)

Information

Information 2304059 Crouzet SSR 84137870N 40 A Switching voltage (max.): 60 V AC DC circuit 1 pc(s)

Description

Market application:
HEATING ELEMENTS - no switch-on surge current

• ovens
• HVAC
• Textiles
• Soldering device
• Drying
• Hot forms
• Infrared heating
• Heating of residential buildings
• Plastic injection molding/extrusion
• Commercial food processing machines

MOVEMENT - strong starting current

• Blower
• Pumps
• Elevators
• Winds
• Lifting equipment
• Compressors
• Conveyor systems
• Fitness equipment with motor

LIGHTING - strong switch-on currents

• Theater
• warehouses
• office space
• Cinemas and stages
• Airport drive
• Roads and roads
• Hazard locations and flashing systems

MISCELLANEOUS

• Converter
• Solenoid valves
• switched-mode power supplies
• Inverter
• electromagnets
• Transformers
• Adjusting devices
• Compensation capacitors
• Uninterruptible power supplies

This text is machine translated.
