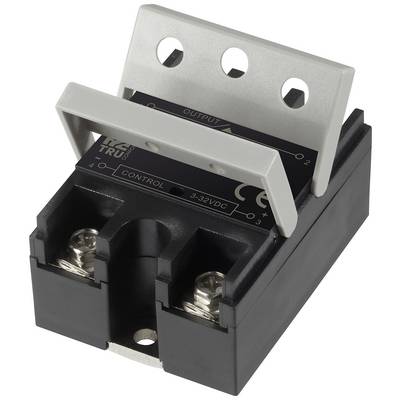

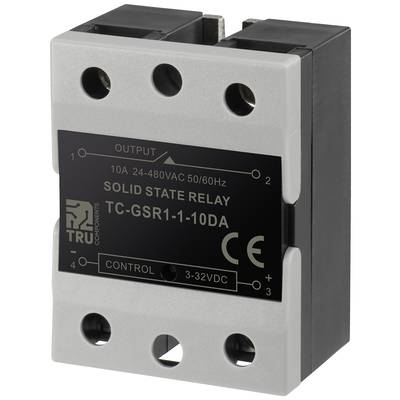

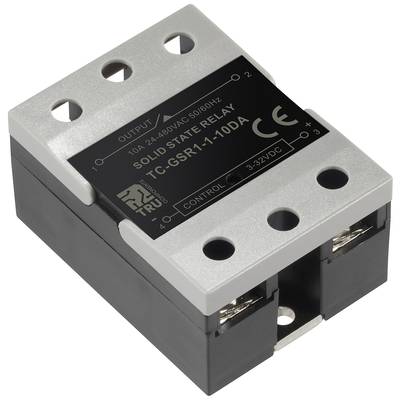

TRU COMPONENTS SSR TC-GSR-1-10DA 10 A Switching voltage (max.): 480 V AC DC circuit 1 pc(s)
EAN:
Part number:
Item no:
Product type
SSR
Control voltage (min.)
3 V DC
Control voltage (max.)
32 V DC
Switching voltage (max.)
480 V AC
Current load (max.)
10 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.13
5
6% = € 0.43
€ 6.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.13 / piece)
€ 7.13
plus VAT.
Highlights & Details
TRU COMPONENTS POWERED BY GSR-1-10DA HA
- Suitable for switches & temp control, automated control, CNC machinery, packaging machinery, textile machinery, glass machinery and plastic machinery
- Single phase, DC to AC
Our service for you
Technical specifications
- Product type
SSR
- Type
TC-GSR-1-10DA
- Switching type
DC circuit
- Connection
Screw terminal
- Control voltage (min.)
3 V DC
- Control voltage (max.)
32 V DC
- Control voltage range
3 - 32 V DC
- Control current (max.)
15 mA
- Switching voltage (min.)
24 V AC
- Switching voltage (max.)
480 V AC
- Current load (max.)
10 A
- Max. output current
10 A
- Min. temperature
-25 °C
- Max. temperature
75 °C
IP20
- Width
44.8 mm
- Height
28 mm
- Length
57.4 mm
- Weight
81 g
- Content
1 pc(s)
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 2527196 TRU COMPONENTS SSR TC-GSR-1-10DA 10 A Switching voltage (max.): 480 V AC DC circuit 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2527196 TRU COMPONENTS SSR TC-GSR-1-10DA 10 A Switching voltage (max.): 480 V AC DC circuit 1 pc(s)
Conformity certificate
Conformity certificate 2527196 TRU COMPONENTS SSR TC-GSR-1-10DA 10 A Switching voltage (max.): 480 V AC DC circuit 1 pc(s)
Description
For switchgear and temperature monitoring, automatic control systems, CNC systems, packaging machines, textile processing machines, Suitable for glass-processing systems and plastic systems.
This text is machine translated.
This text is machine translated.
Features
- Wide output and small control current, less than or equal to 15 mA;
- No mechanical parts, long lifespan and highly reliable
- Fast switching - can switch on with 0 voltage and switch off with 0 current in some applications. Low RF interference.
- Built-in resistance capacitance absorption to protect the impact of the product on thestarting current
- Photoelectric isolation between input and output circuits,can withstand voltage of 2500 V
- Compact design and filled with epoxy resin, which is shockproof, moisture-proof and corrosion-proof
