Dasqua 1331-2115 + 8511-0060 Dial caliper 150 mm

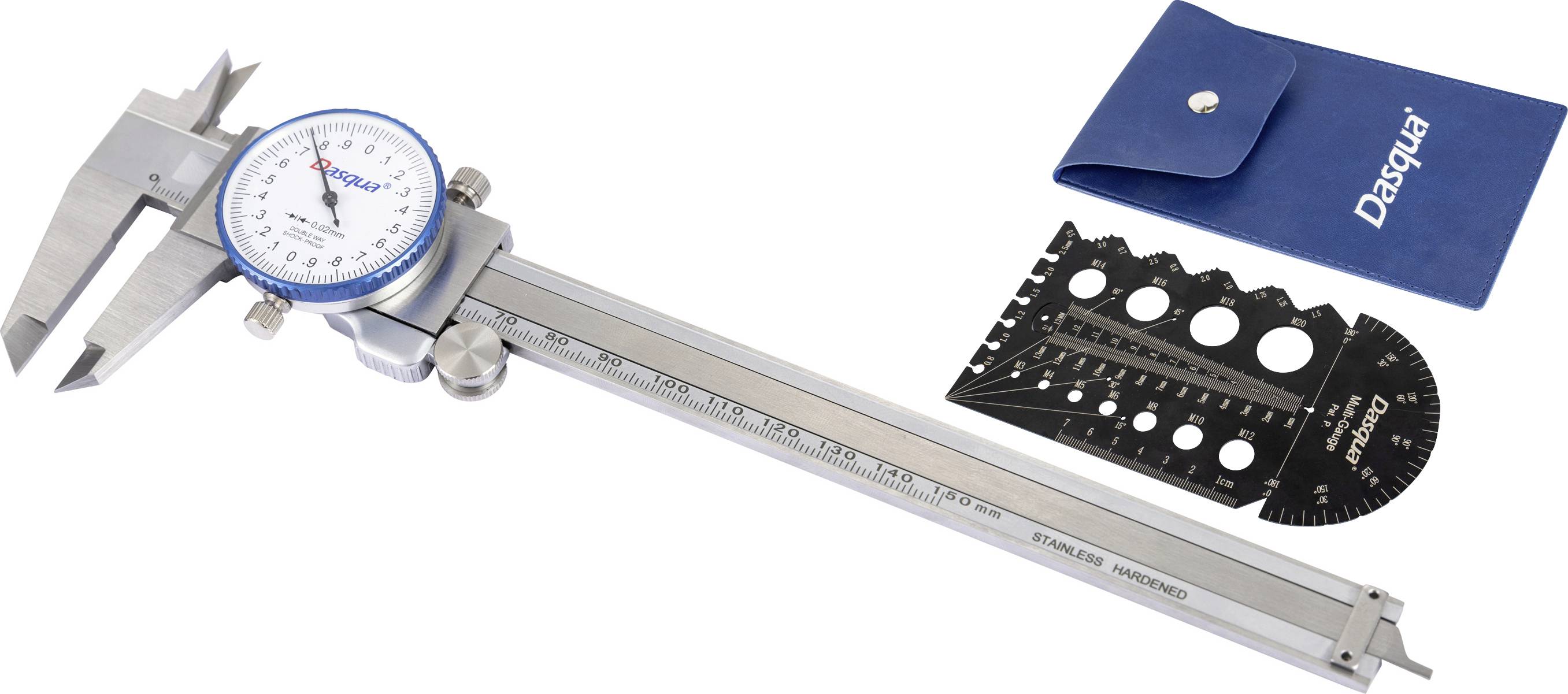

Vernier caliper with dial display and blue case, alongside an angle measuring template. Instruments for precise measurement.
A silver vernier calliper with a dial for precise measurement of objects. It displays accurate millimetre markings.
'Brass calliper with analogue dial, measuring scale from 0-150 mm, used for precise measurement of workpieces.'
Aluminium strip with alphanumeric combination '6-04.5245-2021.01', black plastic component attached at one end.
A close-up of a calliper with a round dial, blue border and scale for precise length measurement.
Close-up of a calliper with an analogue dial, showing millimetre measurements. Instrument for precise measurement of objects.
Close-up of a calliper with a circular scale for precise length measurement. Main component of the tool clearly visible.
A vernier calliper with a metal plate between the measuring jaws. The plate has holes and screws, possibly part of a clockwork mechanism.
A vernier calliper with a dial gauge on a blue plastic housing, alongside a box and a warranty notice.
'Metal screw gauge with various hole sizes, thread pitch measurement teeth and a linear scale along the bottom edge.'
Metal measuring tool in black colour with various shapes and holes, including blue case, marked with 'Dasqua'.
A person is measuring a metal piece with an analogue calliper. Gloves protect against fingerprints. Tools are visible in the background.
Two gloved hands are holding an angle measuring device to check the size of a metal component. Tools are lying in the background.
1/13
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Dial caliper + screw and thread gauge

  • Free screw and thread stencil

Technical specifications

Product type

Dial caliper

Reading range (max.)

150 mm

Reading

0.02 mm

Length

272 mm

DIN standard

DIN 862

Material

Stainless steel

Weight

0.4 kg

Manufacturer's standards (no certificate)

Type

1331-2115 + 8511-0060

Description

Newly introduced monoblock High-precision sliding caliper 0-150 mm with double impact strength Pro.

Thread and bolt gauge
Check the slope of screw threads with 10 - 40 TPI
The thread diameter can also be checked (from #5 to #12 and ¼" to 5/8" in 1/16" steps plus 3/4").
The length of a screw thread can be measured with the side of the multi-function gauge.
Wire measurement function for sizing cables, washers and sheet metal with #3 to #24 and 0.03" to 0.035"
Quickly mark lines with hole marks between 15° and 60° in 15° increments

This text is machine translated.

Features

  • Lines and numbers in satined chrome surface clearly lasered in
  • Stable gauge with locking screw
  • Made of stainless steel 4Cr13
  • 4 different measurement functions (outside diameter, inside diameter, step and depth)
  • Complies with ISO13385-1 (DIN 862)
  • Vacuum quenches the brake caliper for optimum wear resistance and a longer service life
  • The measuring force of the sliding caliper is 2.5-3.5 N.

Scope of delivery

  • Dial - sliding caliper
  • Thread and bolt gauge
