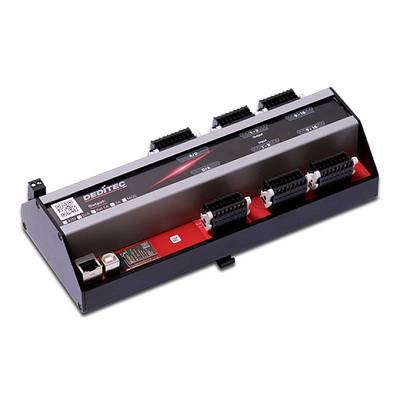

Deditec BSW-AD16-DA4-OR16 BS-WEU-AD16-DA4-OR16 BS module Wi-Fi, Ethernet, USB No. of digital inputs: 16
EAN:
Part number:
Item no:
Product type
BS module
Interfaces
Wi-Fi
Ethernet
USB
Type
BS-WEU-AD16-DA4-OR16
Operating voltage
24 V DC
Height
74.5 mm
Number
Total (€ 1,368.91 / piece)
€ 1,368.91
plus VAT.
Highlights & Details
BS-WEU-AD16-DA4-OR16
- Ethernet interface 10/100 MbitConnection via WiFi possibleWPS functionOpen Ethernet protocolUSB 2.0 interface up to 480 Mbit16 * A/D inputs each with 16-bit resolutionVOLTAGE RANGES: 0-5V, 0-10V, +5V, +10VCurrent ranges optional: 0-50mA4 * D/A outputs each with 16-bit resolutionVOLTAGE RANGES: 0-5V, 0-10V, +5V, +10V
Technical specifications
- Product type
BS module
- Interfaces
Wi-Fi
Ethernet
USB
- Type
BS-WEU-AD16-DA4-OR16
- Operating voltage
24 V DC
- Height
74.5 mm
- Length
258 mm
- Width
105 mm
- No. of digital inputs
16
- Dim
(L x W x H) 258 x 105 x 74.5 mm
- Control LEDs
Yes
- Manufacturer part #
BSW-AD16-DA4-OR16
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2623463 Deditec BSW-AD16-DA4-OR16 BS-WEU-AD16-DA4-OR16 BS module Wi-Fi, Ethernet, USB No. of digital inputs: 16
Description
The BS-WEU-AD16-DA4-OR16 is a compact module with an Ethernet and USB interface. In addition, you can integrate and control this module via WiFi in your PC network.
This text is machine translated.
This text is machine translated.
Features
- Timeout protection functionNew timeout modesInput filterInput counter
Scope of delivery
- DEDITEC driver CD
- 2-pin connector
- 16-pin connector
- 18-pin connector
- Actuator tool
- USB cable
System requirements
- Windows, Linux, power supply
