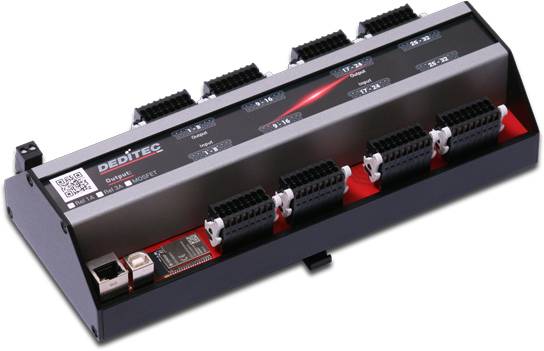

Deditec BSW-O32-R32 BS-WEU-O32-R32 BS module Wi-Fi, Ethernet, USB No. of digital outputs: 32 No. of digital inputs: 32
EAN:
Part number:
Item no:
Product type
BS module
Interfaces
Wi-Fi
Ethernet
USB
Type
BS-WEU-O32-R32
Operating voltage
24 V DC
Height
74.5 mm
Number
Total (€ 940.34 / piece)
€ 940.34
plus VAT.
Highlights & Details
BS-WEU module with 32 digital inputs/outputs
- Ethernet interface 10/100 MbitConnection via WiFi possibleWPS functionOpen Ethernet protocolUSB 2.0 interface up to 480 MbitDigital inputs: 15V – 30V AC/DC (optional 5V – 15V)Digital outputs: 1a16-bit counter (up to 100Hz) / flip-flop per channelTimeout-protection function (can be configured via software)Sturdy aluminum housing (suitable for DIN rail mounting)
Technical specifications
- Product type
BS module
- Interfaces
Wi-Fi
Ethernet
USB
- Type
BS-WEU-O32-R32
- Operating voltage
24 V DC
- Height
74.5 mm
- Length
258 mm
- Width
105 mm
- No. of digital inputs
32
- No. of digital outputs
32
- Dim
(L x W x H) 258 x 105 x 74.5 mm
- Control LEDs
Yes
- Manufacturer part #
BSW-O32-R32
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2623468 Deditec BSW-O32-R32 BS-WEU-O32-R32 BS module Wi-Fi, Ethernet, USB No. of digital outputs: 32 No. of digital inputs: 32
Description
The BS-WEU-O32-R32 is a compact module with an Ethernet and USB interface. In addition, you can integrate and control this module via WiFi in your PC network.
This text is machine translated.
This text is machine translated.
Features
- Timeout protection functionNew timeout modesInput filterInput counter
Scope of delivery
- DEDITEC driver CD
- 2-pin connector
- 16-pin connector
- Actuator tool
- USB cable
System requirements
- Windows, Linux, power supply
