Deditec CAN-O4-R4 CAN-O4-R4 IO module CAN, Micro USB No. of digital outputs: 4 No. of digital inputs: 4 No. of relay out
Part number:
Item no:
Product type
IO module
Interfaces
CAN
Micro USB
No. of relay outputs
4
Type
CAN-O4-R4
Operating voltage
24 V DC
7 V DC
Datasheet (PDF)
Number
Total (€ 284.87 / piece)
€ 284.87
plus VAT.
Highlights & Details
CAN DiO module with 4 relay outputs and 4 opto-coupler inputs
- USB 2.0 interface up to 480 Mbit/s.
- Quick start-up through plug-and-play integration
- Control: API for Windows and Linux (DELIB driver library), Command Line Interface
- CAN interface according to ISO 11898
- Automatic send / receive mode
- 4 Relay outputs 1 A
- Max. SWITCHING VOLTAGE 36 V AC/DC
- Max. TRANSPORTATION CURRENT 1 A AC / DC
- Timeout-protection function (can be configured via software)
- Status LED for each output
- 4 optical coupler digital inputs
- Signal level ±5 V to ±15 V or ±15 V to ±30 V.
- 16 bit counter per channel (up to 100Hz)
- Detects a change from Low to High and High to Low Level (Flip-Flop)
- Status LED for each channel
Technical specifications
- Status LEDs for each digital input (4x) and each relay output (4x)
- Galvanic isolation (Optocoupler)
- Screw terminals/connectors for I/O connections
- Operating temperature range: 0 °C to +50 °C
- Product type
IO module
- Interfaces
CAN
Micro USB
- Type
CAN-O4-R4
- Operating voltage
24 V DC
7 V DC
- Operating voltage
7 V TO 24 V DC
- Height
55 mm
- Length
94 mm
- Width
88 mm
- Max. modules
127
- No. of digital inputs
4
- No. of digital outputs
4
- No. of relay outputs
4
- Dim
(L x W x H) 94 x 88 x 55 mm
- Control LEDs
Yes
- Manufacturer part #
CAN-O4-R4
- Fitting type (details)
Top hat rail mounting / DIN rail (TS 35 x 7.5 mm)
- Relay rating
3 A
Documents & Downloads
Datasheet
Datasheet 3816750 Deditec CAN-O4-R4 CAN-O4-R4 IO module CAN, Micro USB No. of digital outputs: 4 No. of digital inputs: 4 No. of relay out
User & Safety Instructions
User & Safety Instructions 3816750 Deditec CAN-O4-R4 CAN-O4-R4 IO module CAN, Micro USB No. of digital outputs: 4 No. of digital inputs: 4 No. of relay out
Description

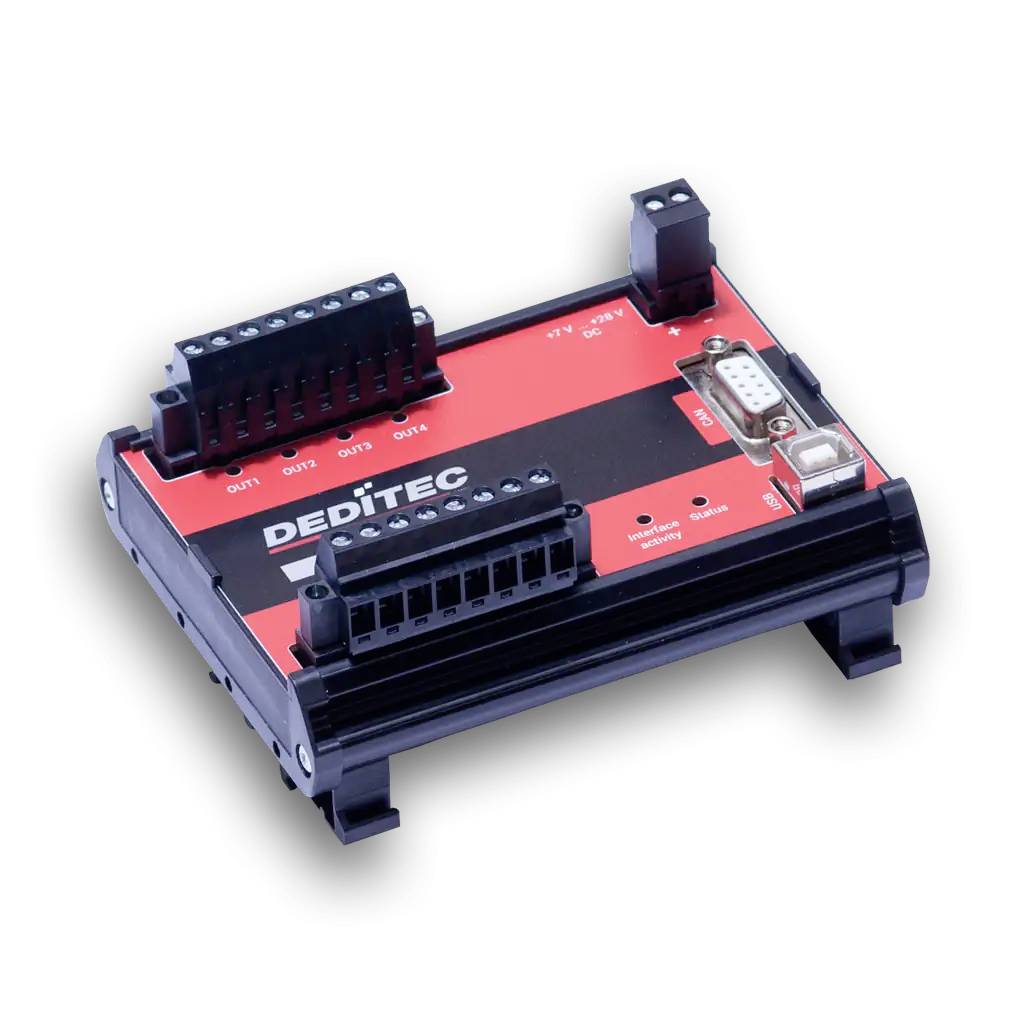

The CAN DiO module O4-R4 is an industrial digital I/O module with 4 optically separate inputs and 4 relay outputs. Communication takes place via a galvanically isolated CAN bus with RAW CAN or J1939 as well as directly via a USB interface. The module has status LEDs and an automatic TX/RX mode and can be flexibly integrated into CAN networks as well as USB-based control and diagnostics environments.
This text is machine translated.
This text is machine translated.
Features
- M2M functionality
- Automatic CAN-RX/TX mode
- RAW CAN
- J1939 Protocol
- Free configuration and testing software
- USB configuration interface
- Supply voltage +7 V to +24 V DC
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Application areas: Engineering, plant automation, test stands, switch cabinet construction, building automation and industrial network controls
Scope of delivery
- USB cable A-plug to B-plug
- 2 pin connector
- 2x 8-pin connector black
System requirements
- Windows, Linux
