Deditec ETH-TTL-64 ETH-TTL-64 IO module Ethernet No. of digital outputs: 64 No. of digital inputs: 64 No. of relay outpu
EAN:
Part number:
Item no:
Product type
IO module
Interfaces
Ethernet
No. of relay outputs
0
Type
ETH-TTL-64
Operating voltage
7 V
24 V
Number
Total (€ 310.08 / piece)
€ 310.08
plus VAT.
Highlights & Details
ETH-TTL-64
- 64*TTL-I/O via two 37-pin D-SUB sockets
- TTL level from 5V to 1.5V
- Ethernet 100/10Mbit
- DIN rail module
Technical specifications
- Product type
IO module
- Interfaces
Ethernet
- Type
ETH-TTL-64
- Operating voltage
7 V
24 V
- Operating voltage
V/DC
- Height
64 mm
- Length
112.5 mm
- Width
90 mm
- No. of digital inputs
0
- No. of digital inputs
64
- No. of digital outputs
64
- No. of relay outputs
0
- Dim
(L x W x H) 112.5 x 90 x 64 mm
- Control LEDs
Yes
- Manufacturer part #
ETH-TTL-64
- Fitting type (details)
DIN rail (TS 35)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2149462 Deditec ETH-TTL-64 ETH-TTL-64 IO module Ethernet No. of digital outputs: 64 No. of digital inputs: 64 No. of relay outpu
Description

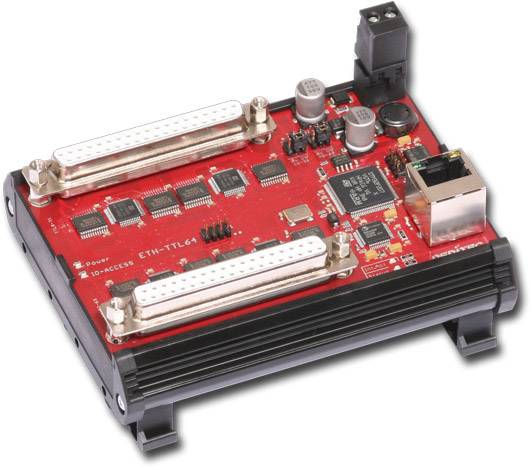

The ETH-TTL-64 offers an Ethernet interface with 100/10Mbit and 64 TTL I/OS. The high-quality housing is suitable for mounting on a DIN rail.
Two 37-pin D-Sub sockets provide access to the 64 I/OS. Dip switches allow quick configuration of network settings.
LEDs on the board show the status of the module, the power supply, communication via Ethernet and access to the I/OS.
A power supply unit with 7V to 24V DC is required as the supply voltage. A suitable power supply can be purchased under Accessories.
This text is machine translated.
Two 37-pin D-Sub sockets provide access to the 64 I/OS. Dip switches allow quick configuration of network settings.
LEDs on the board show the status of the module, the power supply, communication via Ethernet and access to the I/OS.
A power supply unit with 7V to 24V DC is required as the supply voltage. A suitable power supply can be purchased under Accessories.
This text is machine translated.
Scope of delivery
- Connectors
- Voltage plug
- DEDITEC installation CD
- Flyers
