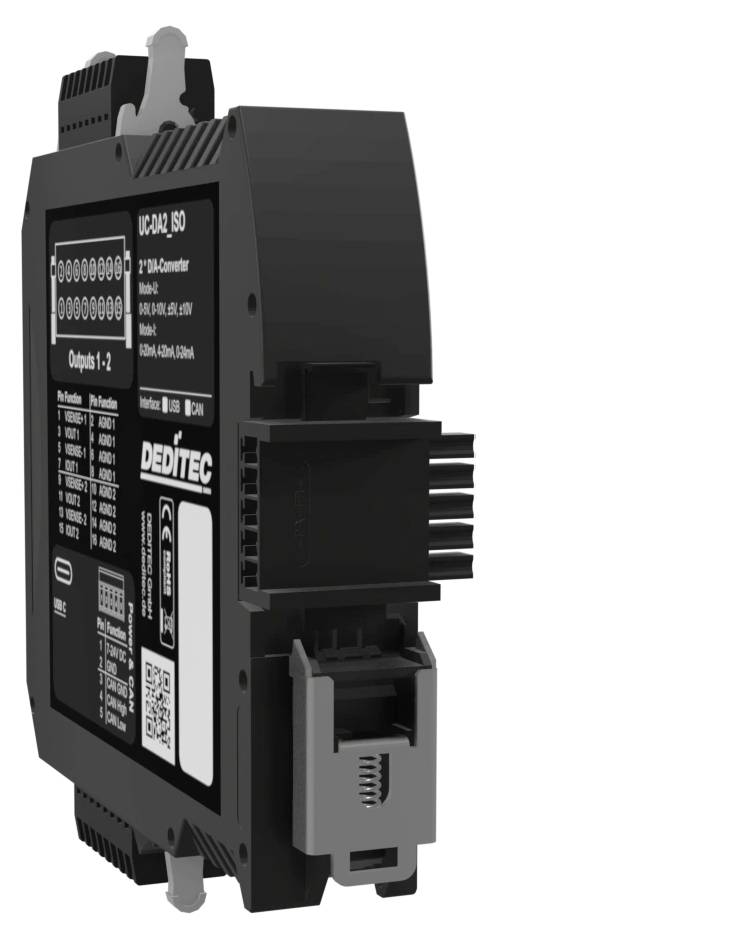

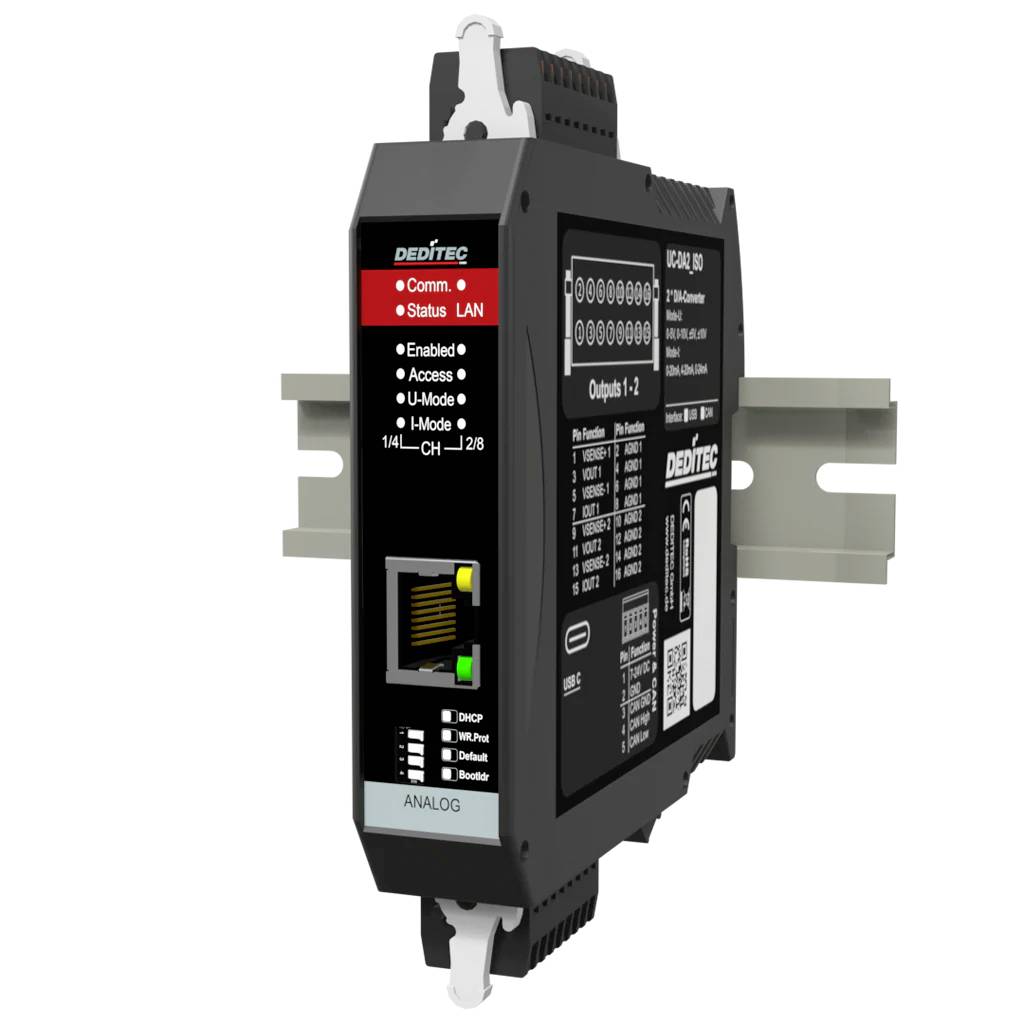

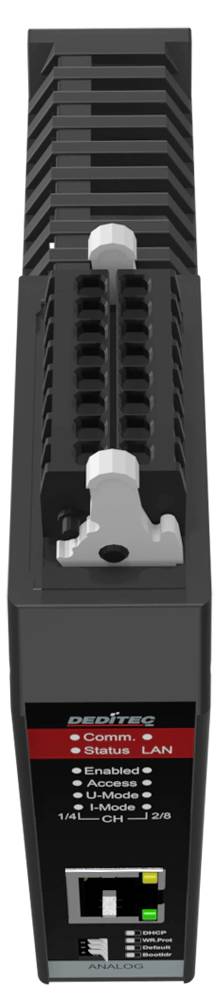

Deditec UC-CAN-E-DA2-16ISO UC-CAN-E-DA2-16ISO D/A converter CAN, USB-C No. of digital outputs: 0 No. of digital inputs:
Part number:
Item no:
Product type
D/A converter
Interfaces
CAN
USB-C
No. of relay outputs
0
Type
UC-CAN-E-DA2-16ISO
Operating voltage
24 V DC
Datasheet (PDF)
Number
Total (€ 558.82 / piece)
€ 558.82
plus VAT.
Highlights & Details
UC-CAN 16-bit D/A converter - 2-channel CAN bus module with galvanic isolation - with Ethernet configuration interface
- Ethernet 10/100 Mbit/s
- Supported protocols: HTTP, UDP, TCP, DHCP, Modbus-TCP
- Control: API for Windows and Linux (DELIB driver library), Command Line Interface, disclosed TCP protocol, Modbus TCP
- Encrypted Ethernet communication is possible
- Open standard or Modbus TCP protocol
- Web interface and APP (smartphone and tablet)
- Possible to connect via Wi-Fi
- WPS function
- CAN D/A converter for analogue setpoint output via CAN bus
- 2 D/A-channels each with 16-bit resolution
- VOLTAGE OUTPUTS: 0–5 V, 0–10 V / 0..10V, ±5 V, ±10 V
- Current outputs 0–20 mA, 4–20 mA, 0–24 mA
- Galvanic isolation of the D/A channels with one another up to max. 1000 V AC
- Galvanic isolation for voltage supply up to max. 500 V AC
- CAN 2.0A / CAN 2.0B with bit rates from 10 kbit/s to 1 Mbit/s.
- Open CAN protocol and Auto-TX/RX mode
- Conversion time of the D/A converter: 10–12 µs
- Supply voltage +12 V to +24 V DC
- Mounts on 35 x 7.5 mm top-hat rail
- Two analogue D/A outputs for precise voltage and current signals via CAN-bus
- 16-bit resolution for finely graduated set-point specifications
- Output ranges for common industrial and standard signals such as 0–10 V and 4–20 mA
- Relative accuracy: Min. -16 LSB / max. +16 LSB
- Full scale temperature drift: ±1 ppm / °C.
- Conversion time: 10–12 µs for fast D/A output in control and control applications
- CAN interface via 9-pin D-Sub socket
- CAN 2.0A and CAN 2.0B support
- Galvanically separated CAN interface up to 500 V.
- Open CAN protocol for integration into existing CAN bus architectures
- Auto-TX/RX mode for automatic processing of CAN packets
Technical specifications
- Galvanic isolation: Up to 500 V (disconnected from the system and from each other)
- Special features: Supports M2M (Machine to Machine) and Event Control for autonomous signal processing.
- Product type
D/A converter
- Interfaces
CAN
USB-C
- Type
UC-CAN-E-DA2-16ISO
- Operating voltage
24 V DC
- Operating voltage
7 V DC TO 24 V DC
- Height
120 mm
- Length
111 mm
- Width
22.5 mm
- Max. modules
64
- No. of digital inputs
0
- No. of digital inputs
0
- No. of digital outputs
0
- No. of relay outputs
0
- Dim
(L x W x H) 111 x 22.5 x 120 mm
- Control LEDs
Yes
- Manufacturer part #
UC-CAN-E-DA2-16ISO
- Fitting type (details)
DIN top hat rail (mounting rail 35 x 7.5 mm) with optional T-bus / DIN rail connector for bus coupling
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796613 Deditec UC-CAN-E-DA2-16ISO UC-CAN-E-DA2-16ISO D/A converter CAN, USB-C No. of digital outputs: 0 No. of digital inputs:
User & Safety Instructions
User & Safety Instructions 3796613 Deditec UC-CAN-E-DA2-16ISO UC-CAN-E-DA2-16ISO D/A converter CAN, USB-C No. of digital outputs: 0 No. of digital inputs:
Description
The UC-CAN 16-bit D/A converter is a 2-channel CAN bus module for the precise output of analogue setpoints in industry, automation, measurement and control technology. As a CAN-D/A converter, the module converts CAN communication into analogue voltage or current signals and provides two galvanically isolated D/A outputs with 16-bit resolution. It supports 0–5 V, 0–10 V, ±5 V and ±10 V and 0–20 mA, 4–20 mA and 0–24 mA. The conversion time of 10–12 µs enables time-critical control and control tasks, for example for actuators, valves, frequency converters, test stands and distributed CAN systems.
This text is machine translated.
This text is machine translated.
Features
- I mode
- U-Mode
- M2M functionality
- Automatic CAN-RX/TX mode
- RAW CAN
- J1939 Protocol
- Free configuration and testing software
- Ethernet configuration interface
- Supply voltage +7 V to +24 V DC
- Plug-in female multipoint connectors with locking mechanism
- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Suitable for typical industrial indoor and switching cabinet environments
Scope of delivery
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector
- DIN-rail connector
System requirements
- Windows, Linux
