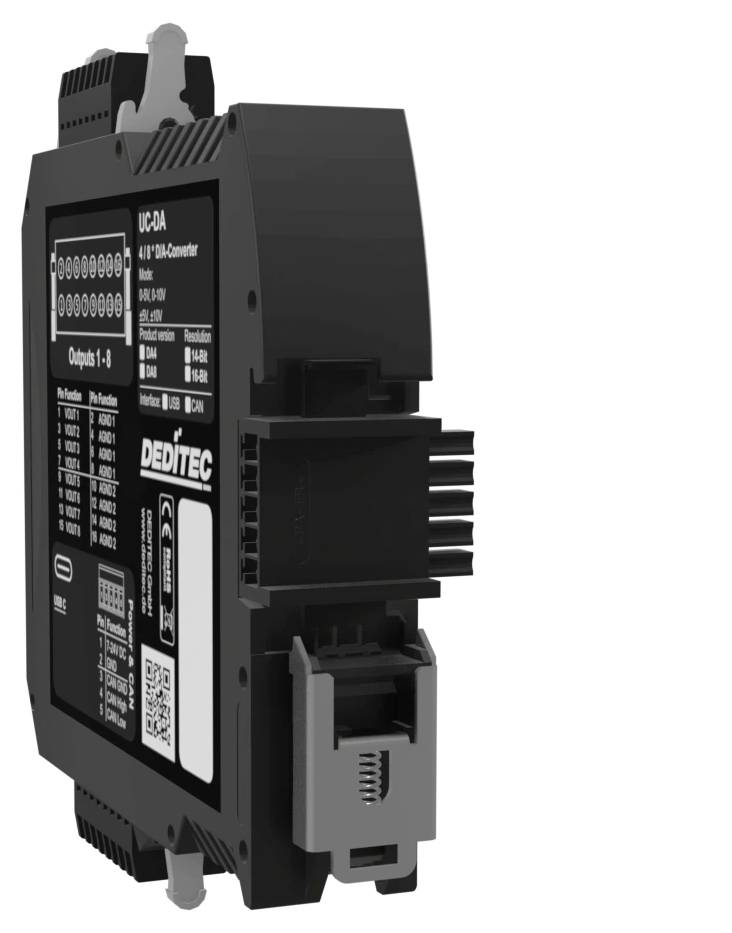

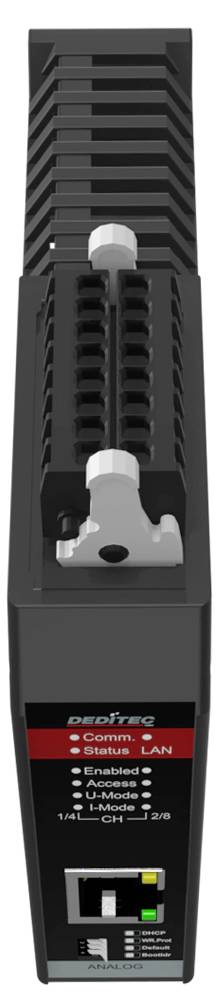

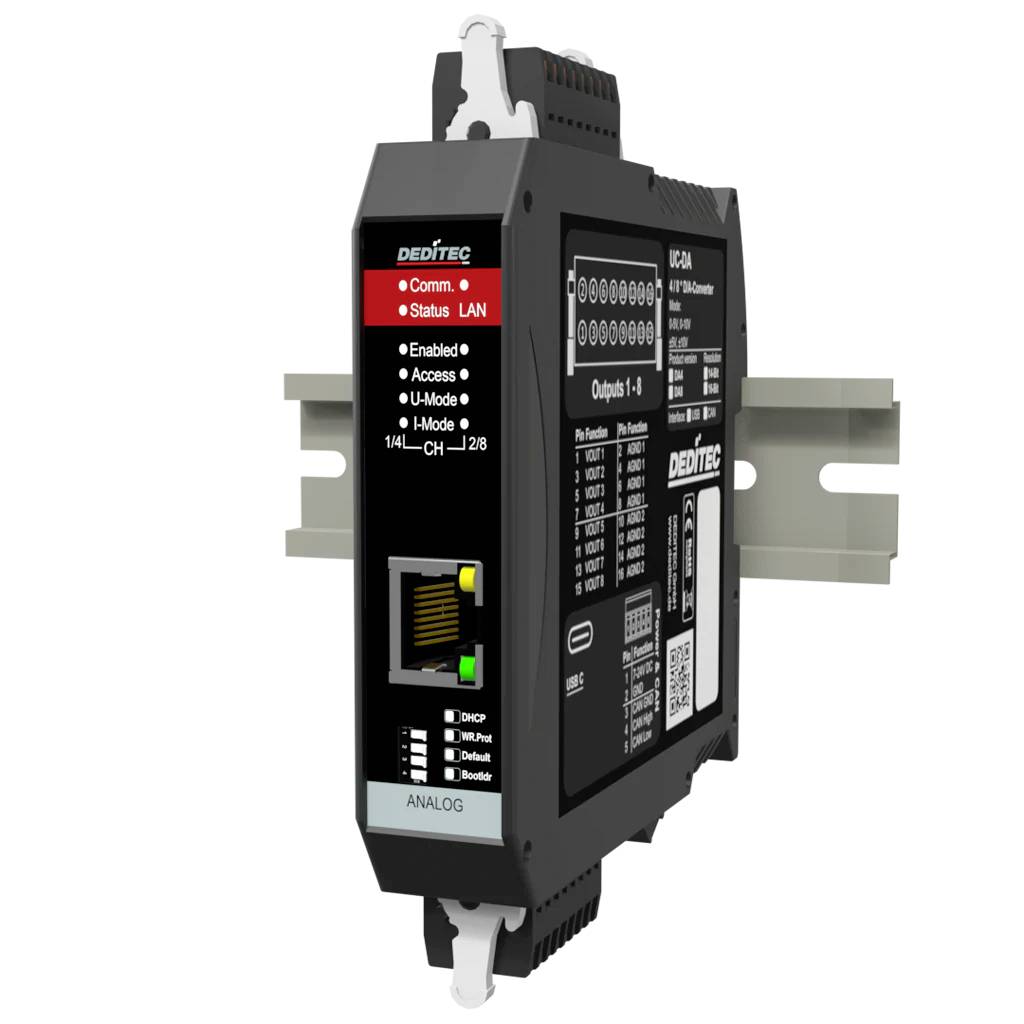

Deditec UC-CAN-E-DA4_16 UC-CAN-E-DA4_16 D/A converter CAN, USB , Ethernet No. of digital outputs: 0 No. of digital input
Part number:
Item no:
Product type
D/A converter
Interfaces
CAN
USB
Ethernet
No. of relay outputs
0
Type
UC-CAN-E-DA4_16
Operating voltage
7 V DC
24 V DC
Datasheet (PDF)
Number
Total (€ 399.16 / piece)
€ 399.16
plus VAT.
Highlights & Details
CAN 16-bit D/A analog converter - converts 4 channels - with Ethernet configuration interface
- Ethernet 10/100 Mbit/s
- Supported protocols: HTTP, UDP, TCP, DHCP, Modbus-TCP
- Control: API for Windows and Linux (DELIB driver library), Command Line Interface, disclosed TCP protocol, Modbus TCP
- Encrypted Ethernet communication is possible
- Open standard or Modbus TCP protocol
- Web interface and APP (smartphone and tablet)
- Possible to connect via Wi-Fi
- WPS function
- Galvanically separated up to 1.5 kV
- CAN interface according to ISO 11898
- Open CAN Protocol (RAW CAN)
- Automatic send / receive mode
- Electrically isolated up to 500 V
- 16-bit resolution of each channel
- 0-5 V, 0-10 V, ±5 V, ±10 V
- Galvanic isolation for voltage supply: Max. 500 V AC
- Conversion time of D/A converter: 10-12 µs
- Load resistance: ≥ 2 kOhm
Technical specifications
- 4 x 16-bit D/A channels
- CAN bus specification: Supports CAN 2.0A and CAN 2.0B, baud rates from 10 kbit/s up to 1 Mbit/s, Auto-TX/RX mode
- Product type
D/A converter
- Interfaces
CAN
USB
Ethernet
- Type
UC-CAN-E-DA4_16
- Operating voltage
7 V DC
24 V DC
- Operating voltage
7 V DC TO 24 V DC
- Height
120 mm
- Length
111 mm
- Width
22.5 mm
- No. of digital inputs
0
- No. of digital inputs
0
- No. of digital outputs
0
- No. of relay outputs
0
- Dim
(L x W x H) 111 x 22.5 x 120 mm
- Control LEDs
Yes
- Manufacturer part #
UC-CAN-E-DA4_16
- Fitting type (details)
Top hat rail mounting (DIN rail EN 60715)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796614 Deditec UC-CAN-E-DA4_16 UC-CAN-E-DA4_16 D/A converter CAN, USB , Ethernet No. of digital outputs: 0 No. of digital input
User & Safety Instructions
User & Safety Instructions 3796614 Deditec UC-CAN-E-DA4_16 UC-CAN-E-DA4_16 D/A converter CAN, USB , Ethernet No. of digital outputs: 0 No. of digital input
Description
The UC‑CAN‑DA4 is a powerful CAN analogue converter with 4 precise D/A channels for output of signal voltages. Ideal for industrial automation and flexible signal provision. Typical applications are the simulation of sensor signals in test benches as well as the control of analog actuators in CAN-based controllers. Robust, galvanically isolated and perfect for demanding measurement and test environments.
This text is machine translated.
This text is machine translated.
Features
- M2M functionality
- Automatic CAN-RX/TX mode
- RAW CAN
- J1939 Protocol
- Free configuration and testing software
- Ethernet configuration interface
- Supply voltage +7 V to +24 V DC
- Plug-in female multipoint connectors with locking mechanism
- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Suitable for typical industrial indoor and switching cabinet environments
Scope of delivery
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector
- DIN-rail connector
System requirements
- Windows, Linux
