Deditec UC-CAN-E-O16 UC-CAN-E-O16 GPI module CAN, Ethernet No. of digital outputs: 0 No. of digital inputs: 16 No. of re
Part number:
Item no:
Product type
GPI module
Interfaces
CAN
Ethernet
No. of relay outputs
0
Type
UC-CAN-E-O16
Operating voltage
24 V DC
Datasheet (PDF)
Number
Total (€ 348.74 / piece)
€ 348.74
plus VAT.
Highlights & Details

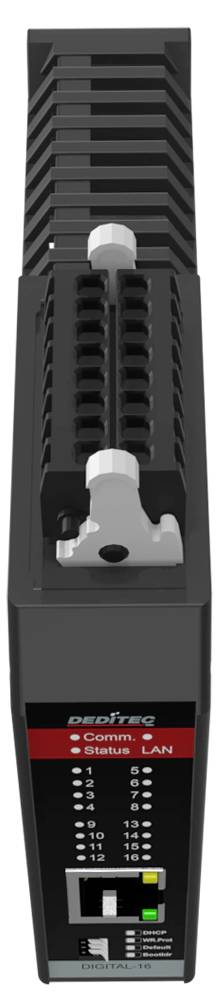

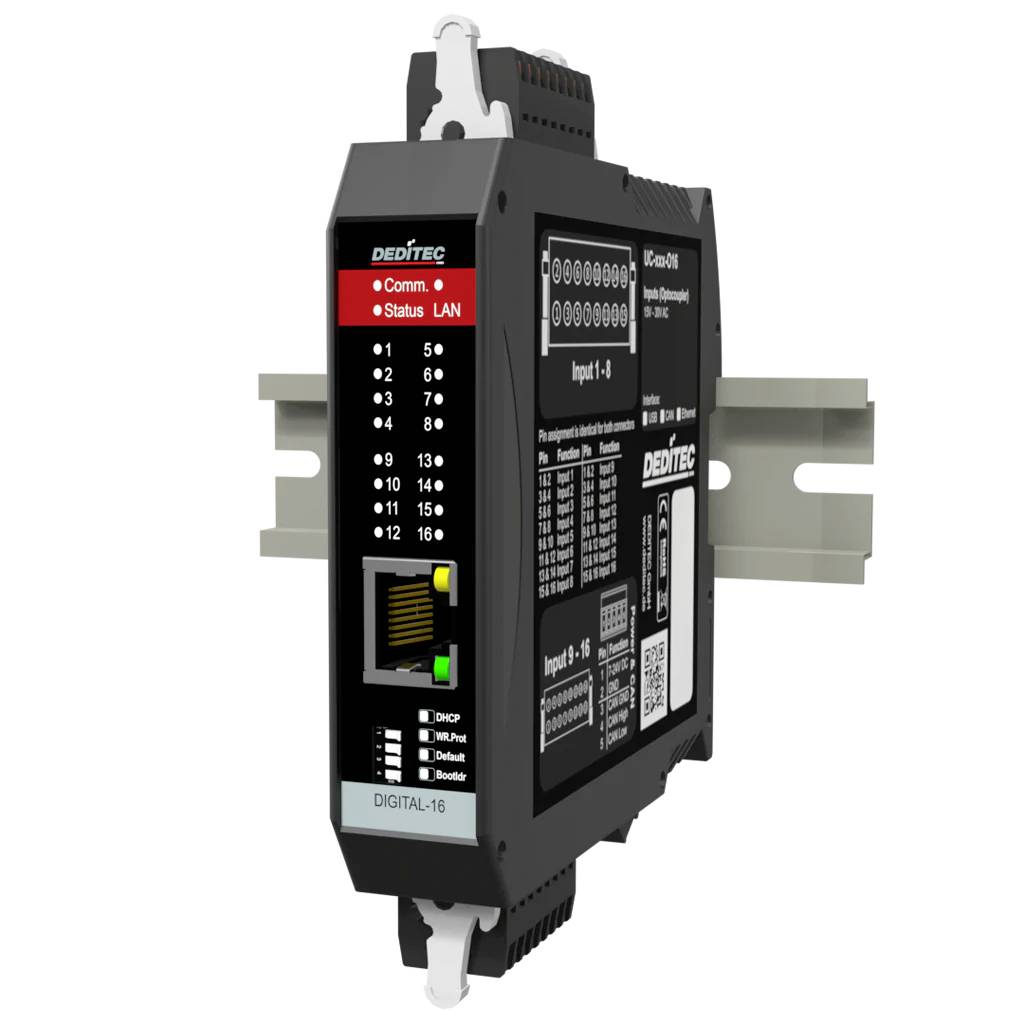

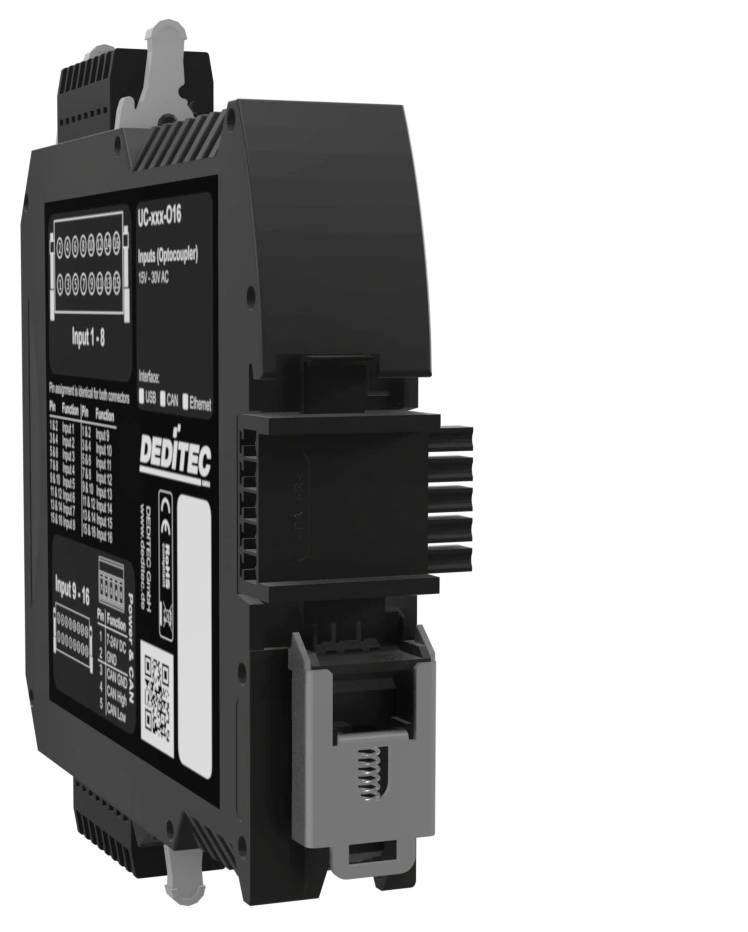

CAN module with 16 digital optocoupler inputs - with Ethernet configuration interface
- Ethernet 10/100 Mbit/s
- Supported protocols: HTTP, UDP, TCP, DHCP, Modbus-TCP
- Control: API for Windows and Linux (DELIB driver library), Command Line Interface, disclosed TCP protocol, Modbus TCP
- Encrypted Ethernet communication is possible
- Open standard or Modbus TCP protocol
- Web interface and APP (smartphone and tablet)
- Possible to connect via Wi-Fi
- WPS function
- CAN interface according to ISO 11898
- Open CAN Protocol (RAW CAN)
- Automatic send / receive mode
- Electrically isolated up to 500 V
- Type: Optocouplers AC / DC
- Signal level ±5 V to ±15 V or ±15 V to ±30 V.
- 16 bit counter per channel (up to 100Hz)
- Detects a change from Low to High and High to Low Level (Flip-Flop)
- Status LED for each channel
Technical specifications
- Galvanic isolation: Up to max. 500 V
- Connection: Screw-less WAGO spring-force terminals (plug-in technology)
- Configuration: Comfortable via the Deditec "ICT tool" (Ethernet)
- Product type
GPI module
- Interfaces
CAN
Ethernet
- Type
UC-CAN-E-O16
- Operating voltage
24 V DC
- Operating voltage
12 V TO 24 V DC
- Height
120 mm
- Length
111 mm
- Width
22.5 mm
- No. of digital inputs
0
- No. of digital inputs
16
- No. of digital outputs
0
- No. of relay outputs
0
- Dim
(L x W x H) 111 x 22.5 x 120 mm
- Control LEDs
Yes
- Manufacturer part #
UC-CAN-E-O16
- Fitting type (details)
DIN-Rail mount (Mounting rail TS 35 x 7.5 mm)
- Status LEDs
16
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796618 Deditec UC-CAN-E-O16 UC-CAN-E-O16 GPI module CAN, Ethernet No. of digital outputs: 0 No. of digital inputs: 16 No. of re
User & Safety Instructions
User & Safety Instructions 3796618 Deditec UC-CAN-E-O16 UC-CAN-E-O16 GPI module CAN, Ethernet No. of digital outputs: 0 No. of digital inputs: 16 No. of re
Description
The UC‑CAN‑O16 is a modern CAN module for digital inputs with 16 galvanically isolated channels. Ideal is suitable for recording 24 V switching signals in industrial plants. Typical applications are the monitoring of sensor and status signals as well as the use in test benches for a safe detection of digital conditions. The module offers a high level of interference immunity and reliable integration into CAN-based systems.
This text is machine translated.
This text is machine translated.
Features
- 16 galvanically separated digital inputs
- M2M functionality
- Automatic CAN-RX/TX mode
- RAW CAN
- J1939 Protocol
- Free configuration and testing software
- Ethernet configuration interface
- Supply voltage +7 V to +24 V DC
- Plug-in female multipoint connectors with locking mechanism
- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Suitable for typical industrial indoor and switching cabinet environments
Scope of delivery
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector
- DIN-rail connector
System requirements
- Windows, Linux
