Name: Deditec UC-CAN-E-O8-M8 UC-CAN-E-O8-M8 GPI module CAN, Ethernet No. of digital outputs: 0 No. of digital inputs: 16 No. o
Brand: Deditec
SKU: 3796619
Availability: BackOrder

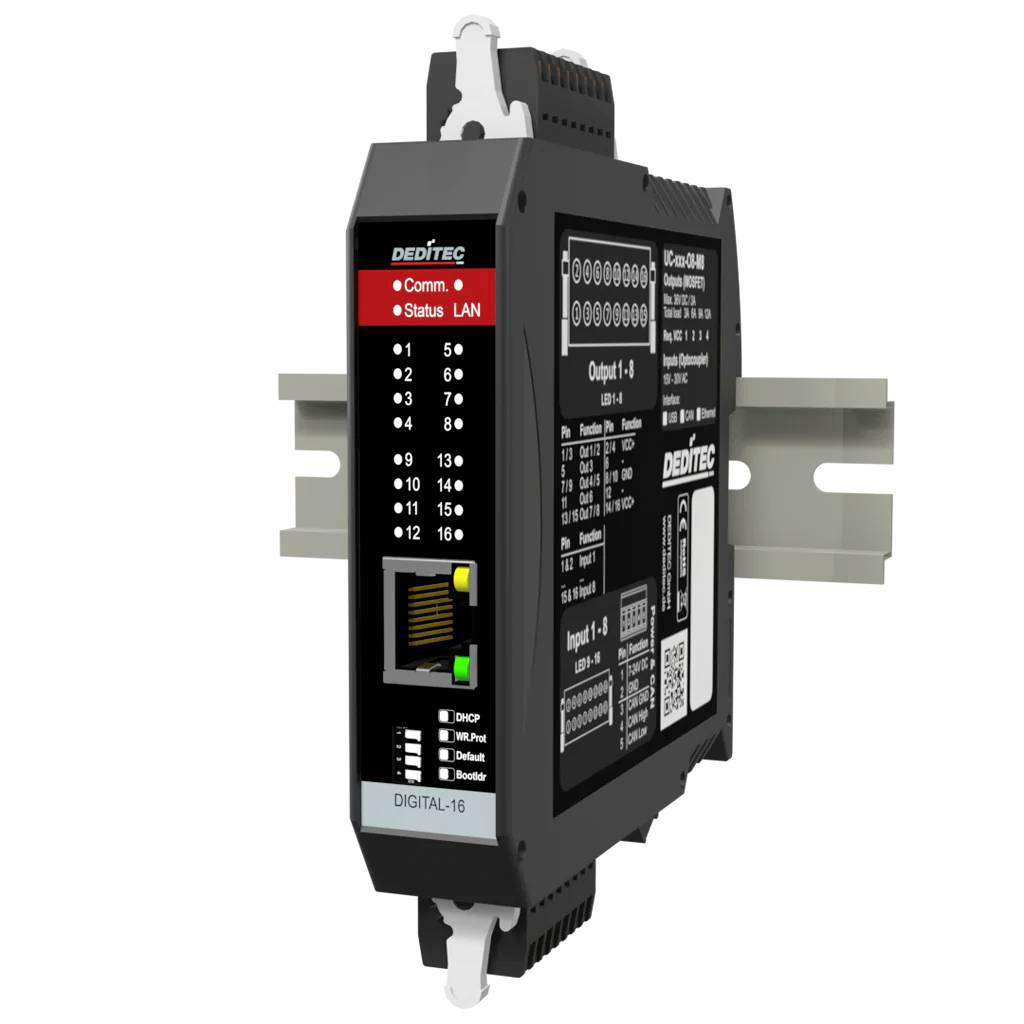

Black DEDITEC DIGITAL-16 DIN-rail industrial I/O module with 16 channel indicators and Ethernet/LAN status lights<br>

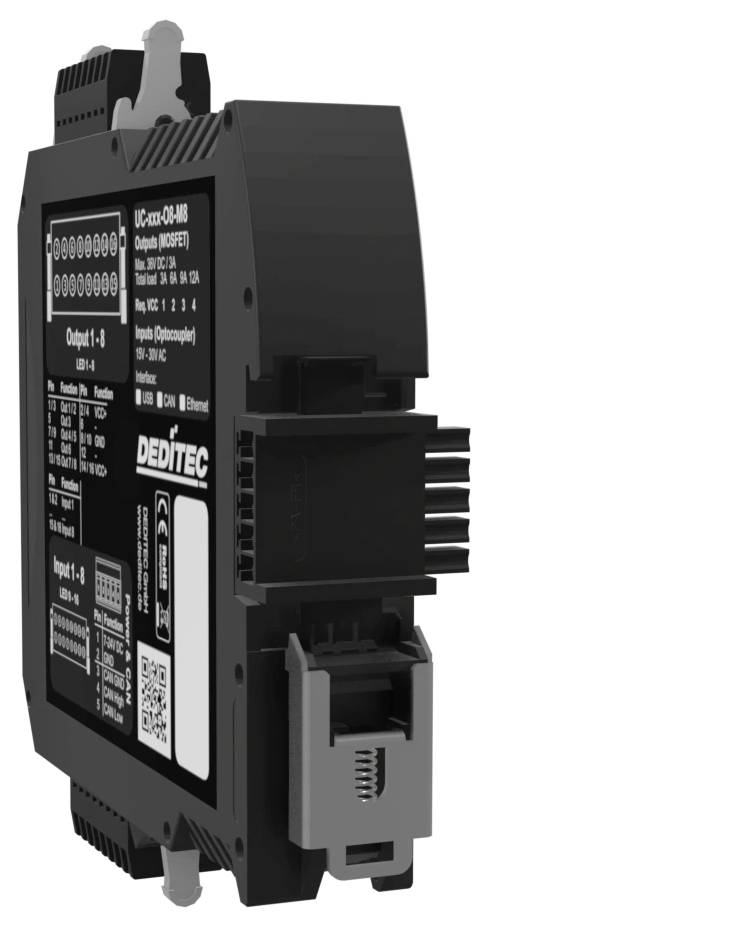

Black industrial DIN-rail electronic module with labeled connectors and terminal ports, shown in three-quarter view on a white background.

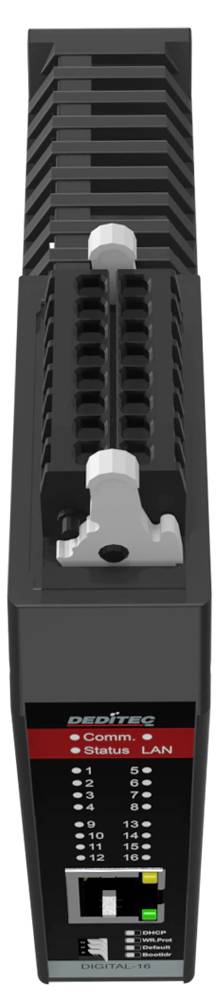

A black Devolo Coms LAN Status device with stacked ports and front indicators, showing a network switch or hub panel.

1/3

Product type

GPI module

Interfaces

CAN

Ethernet

No. of relay outputs

Type

UC-CAN-E-O8-M8

Operating voltage

24 V DC

Datasheet (PDF)

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 435.00 / piece)

€ 435.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

CAN module with 8 DiO EA - can EA DiO module - 8 optocoupler inputs and 8 digital outputs (MOSFET) - with Ethernet configuration interface

Ethernet 10/100 Mbit/s
Supported protocols: HTTP, UDP, TCP, DHCP, Modbus-TCP
Control: API for Windows and Linux (DELIB driver library), Command Line Interface, disclosed TCP protocol, Modbus TCP
Encrypted Ethernet communication is possible
Open standard or Modbus TCP protocol
Web interface and APP (smartphone and tablet)
Galvanically separated up to 1.5 kV
CAN interface according to ISO 11898
Open CAN Protocol (RAW CAN)
Automatic send / receive mode
Electrically isolated up to 500 V
Max. Switching voltage 36 V DC
Min Switching voltage 2.8 V DC
Max. Switching current 3 A DC
Max. Switching capacity 108 W DC
Timeout-protection function (can be configured via software)
Status LED for each output
Type: Optocouplers AC / DC
Signal level ±5 V to ±15 V or ±15 V to ±30 V.
16 bit counter per channel (up to 100Hz)
Detects a change from Low to High and High to Low Level (Flip-Flop)
Status LED for each channel

Technical specifications

Galvanic isolation: Up to max. 500 V
Connection: Screw-less WAGO spring-force terminals (plug-in technology)
Configuration: Comfortable via the Deditec "ICT tool" (Ethernet)

Product type: GPI module

Interfaces: CAN
Ethernet

Type: UC-CAN-E-O8-M8

Operating voltage: 24 V DC

Operating voltage: 12 V to 24 V DC (wide input range)

Height: 120 mm

Length: 111 mm

Width: 22.5 mm

No. of digital inputs: 0

No. of digital inputs: 16

No. of digital outputs: 0

No. of relay outputs: 0

Dim: (L x W x H) 111 x 22.5 x 120 mm

Control LEDs: Yes

Manufacturer part #: UC-CAN-E-O8-M8

Fitting type (details): DIN rail mounting (TS 35 x 7.5 mm mounting rail) with optional in-rail bus plug

Status LEDs: 16

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3796619 Deditec UC-CAN-E-O8-M8 UC-CAN-E-O8-M8 GPI module CAN, Ethernet No. of digital outputs: 0 No. of digital inputs: 16 No. o

User & Safety Instructions

User & Safety Instructions 3796619 Deditec UC-CAN-E-O8-M8 UC-CAN-E-O8-M8 GPI module CAN, Ethernet No. of digital outputs: 0 No. of digital inputs: 16 No. o

Description

The UC-CAN-E-O8-M8 is a modern CAN EA DiO module with 8 optocoupler inputs and 8 digital outputs (MOSFET). Ideal is suitable for recording sensor signals as well as for switching actuators in industrial applications. Typical application areas are test stands for safe signal processing and automation systems, in which digital inputs and outputs must be controlled reliably via CAN.
