Deditec UC-CAN-U-O16 UC-CAN-U-O16 IO module CAN, USB-C No. of digital outputs: 0 No. of digital inputs: 16 No. of relay
Part number:
Item no:
Product type
IO module
Interfaces
CAN
USB-C
No. of relay outputs
0
Type
UC-CAN-U-O16
Operating voltage
24 V DC
Datasheet (PDF)
Number
Total (€ 348.74 / piece)
€ 348.74
plus VAT.
Highlights & Details

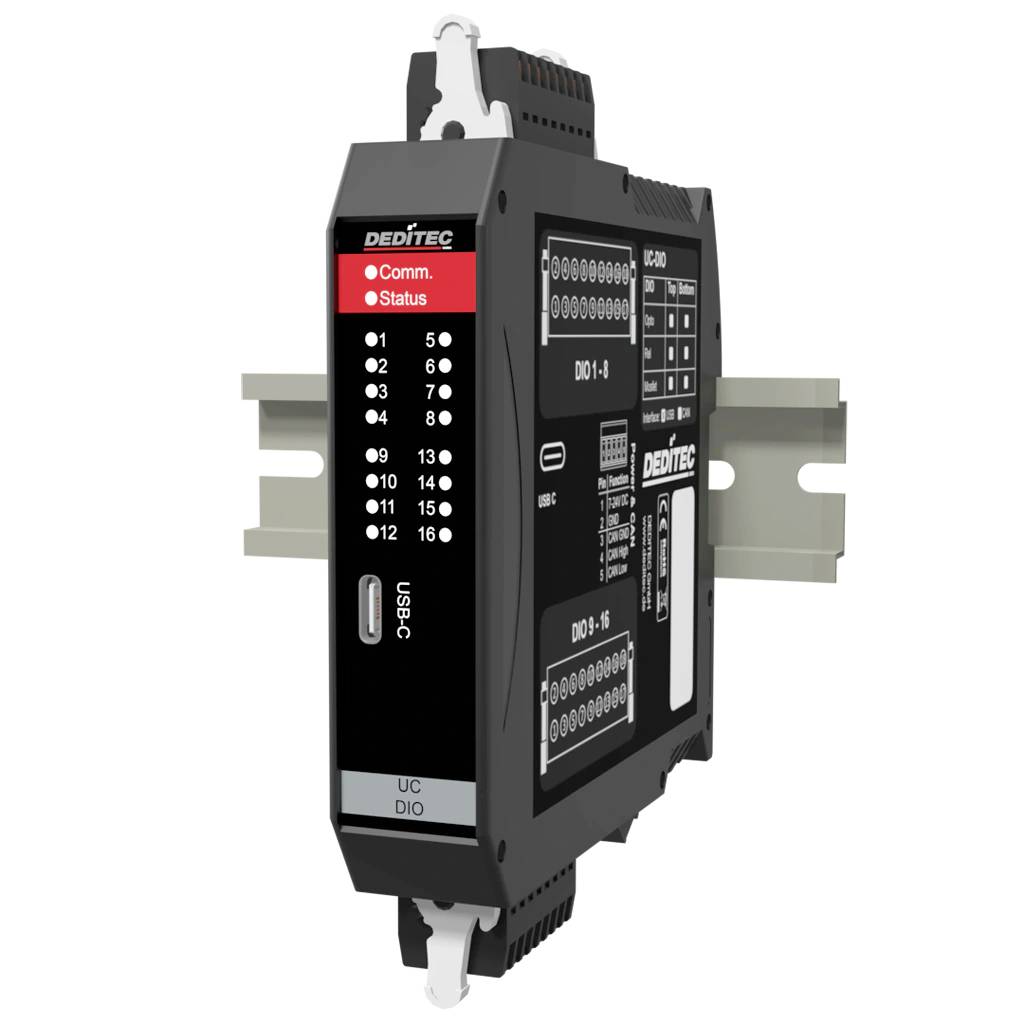

CAN module with 16 digital optocoupler inputs - with USB configuration interface
- USB 2.0 interface up to 480 Mbit/s.
- Quick start-up through plug-and-play integration
- Control: API for Windows and Linux (DELIB driver library), Command Line Interface
- CAN interface according to ISO 11898
- Open CAN Protocol (RAW CAN)
- Automatic send / receive mode
- Electrically isolated up to 500 V
- Type: Optocouplers AC / DC
- Signal level ±5 V to ±15 V or ±15 V to ±30 V.
- 16 bit counter per channel (up to 100Hz)
- Detects a change from Low to High and High to Low Level (Flip-Flop)
- Status LED for each channel
Technical specifications
- CAN protocol: CAN 2.0A / 2.0B (baud rate configurable from 10 kbit/s up to 1 Mbit/s) with Auto-TX/RX mode
- 16-pin, screw-less WAGO spring-loaded terminal (100% protected against wrong insertion)
- Operating temperature range: +10 °C to +50 °C (Extended temperature range on request)
- Product type
IO module
- Interfaces
CAN
USB-C
- Type
UC-CAN-U-O16
- Operating voltage
24 V DC
- Operating voltage
12 V TO +24 V DC
- Height
120 mm
- Length
111 mm
- Width
22.5 mm
- No. of digital inputs
0
- No. of digital inputs
16
- No. of digital outputs
0
- No. of relay outputs
0
- Dim
(L x W x H) 111 x 22.5 x 120 mm
- Control LEDs
Yes
- Manufacturer part #
UC-CAN-U-O16
- Fitting type (details)
Rail mounting (TS 35 x 7.5 mm / DIN rail)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796609 Deditec UC-CAN-U-O16 UC-CAN-U-O16 IO module CAN, USB-C No. of digital outputs: 0 No. of digital inputs: 16 No. of relay
User & Safety Instructions
User & Safety Instructions 3796609 Deditec UC-CAN-U-O16 UC-CAN-U-O16 IO module CAN, USB-C No. of digital outputs: 0 No. of digital inputs: 16 No. of relay
Description
The UC‑CAN‑O16 is a modern CAN module for digital inputs with 16 galvanically isolated channels. Ideal is suitable for recording 24 V switching signals in industrial plants. Typical applications are the monitoring of sensor and status signals as well as the use in test benches for a safe detection of digital conditions. The module offers a high level of interference immunity and reliable integration into CAN-based systems.
This text is machine translated.
This text is machine translated.
Features
- 16 galvanically separated digital inputs
- M2M functionality
- Automatic CAN-RX/TX mode
- RAW CAN
- J1939 Protocol
- Free configuration and testing software
- USB configuration interface
- Supply voltage +7 V to +24 V DC
- Plug-in female multipoint connectors with locking mechanism
- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Suitable for typical industrial indoor and switching cabinet environments
Scope of delivery
- USB cable A-plug to C-plug
- 5 pin connector
- 2x 16 pin connectors

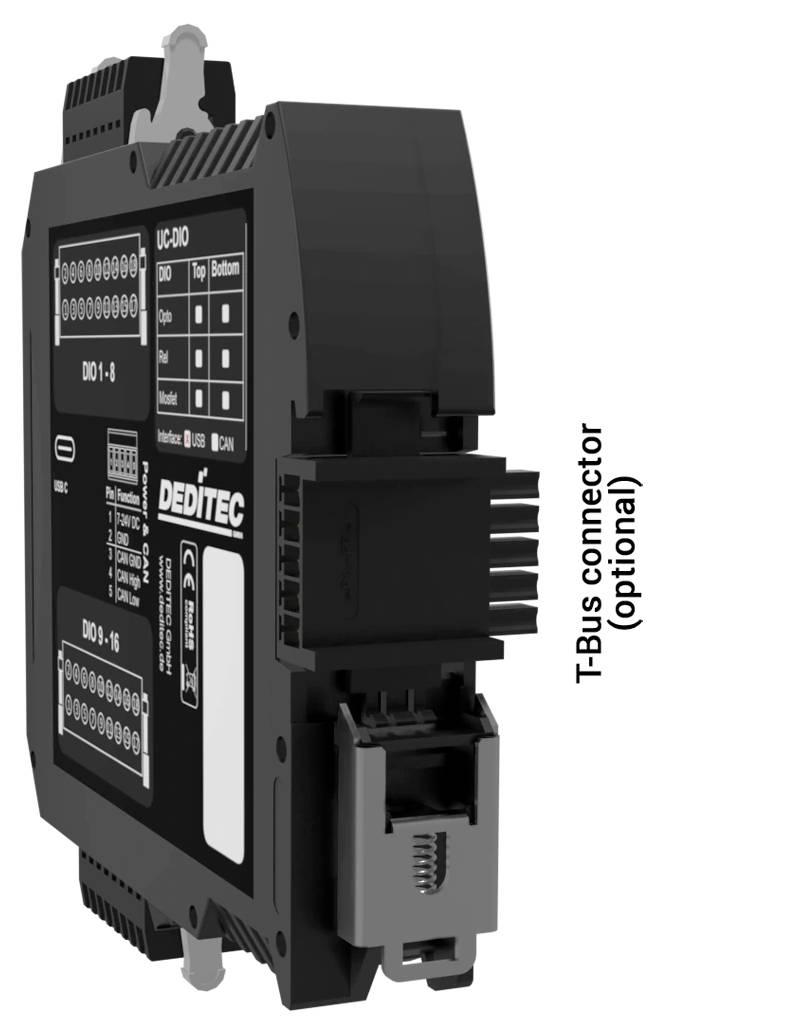

- Actuating tool for WAGO connector
- DIN-rail connector
System requirements
- Windows, Linux
