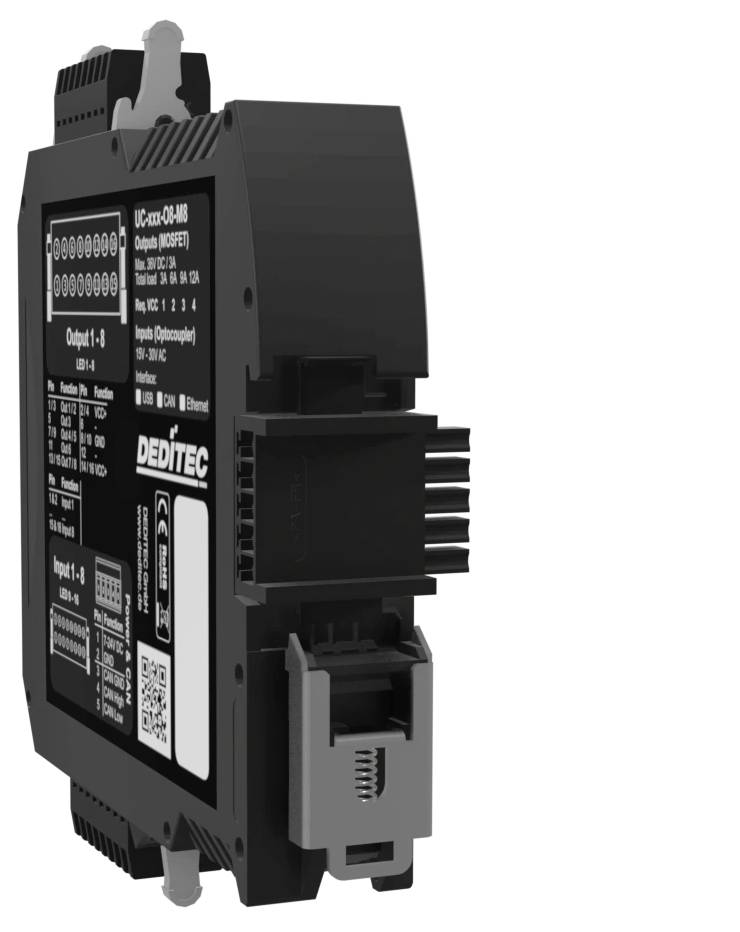

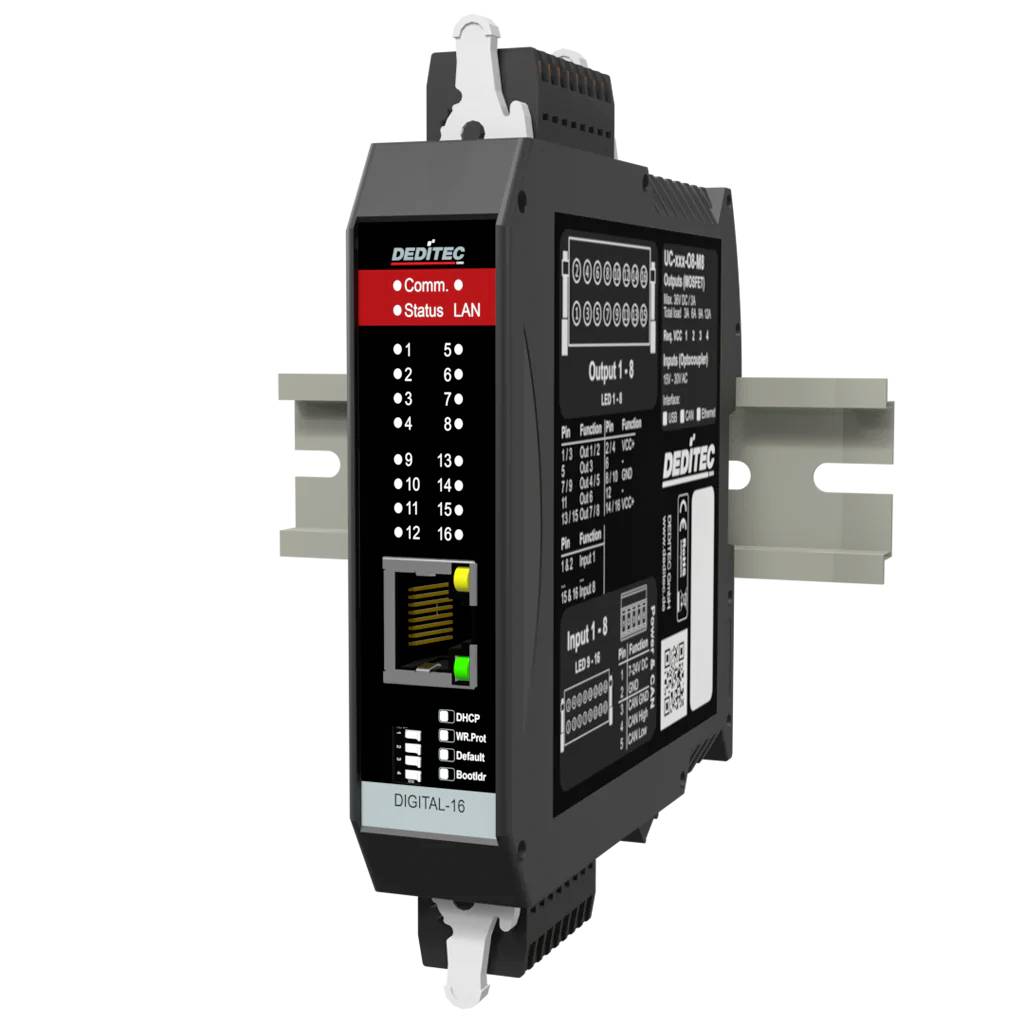

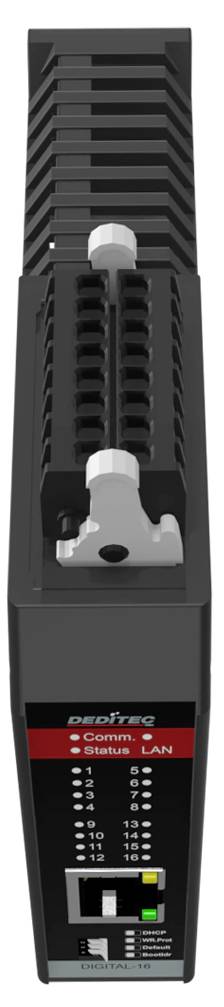

Deditec UC-ETH-O8-M8 UC-ETH-O8-M8 IO module Ethernet No. of digital outputs: 8 No. of digital inputs: 8 No. of relay out
Part number:
Item no:
Product type
IO module
Interfaces
Ethernet
No. of relay outputs
0
Type
UC-ETH-O8-M8
Operating voltage
7 V DC
24 V DC
Datasheet (PDF)
Number
Total (€ 335.29 / piece)
€ 335.29
plus VAT.
Highlights & Details
Ethernet Modbus TCP IO module with 8 opto-coupler inputs and 8 digital outputs (MOSFET), WEB Interface (Modbus TCP/TCP enabled)
- Ethernet 10/100 Mbit/s
- Supported protocols: HTTP, UDP, TCP, DHCP, Modbus-TCP
- Control: API for Windows and Linux (DELIB driver library), Command Line Interface, disclosed TCP protocol, Modbus TCP
- Encrypted Ethernet communication is possible
- Open standard or Modbus TCP protocol
- Web interface and APP (smartphone and tablet)
- Galvanically separated up to 1.5 kV
- Possible to connect via Wi-Fi
- WPS function
- Max. Switching voltage 36 V DC
- Min Switching voltage 2.8 V DC
- Max. Switching current 3 A DC
- Max. Switching capacity 108 W DC
- Timeout-protection function (can be configured via software)
- Status LED for each output
- Type: Optocouplers AC / DC
- Signal level ±5 V to ±15 V or ±15 V to ±30 V.
- 16 bit counter per channel (up to 100Hz)
- Detects a change from Low to High and High to Low Level (Flip-Flop)
- Status LED for each channel
Technical specifications
- Operating temperature: +10°C to + +50°C.
- Product type
IO module
- Interfaces
Ethernet
- Type
UC-ETH-O8-M8
- Operating voltage
7 V DC
24 V DC
- Operating voltage
7 to 24 V DC
- Height
120 mm
- Length
111 mm
- Width
22.5 mm
- No. of digital inputs
0
- No. of digital inputs
8
- No. of digital outputs
8
- No. of relay outputs
0
- Dim
(L x W x H) 111 x 22.5 x 120 mm
- Control LEDs
Yes
- Manufacturer part #
UC-ETH-O8-M8
- Fitting type (details)
Rail mounting (Mounting rail 35 mm x 7.5 mm)
- Status LEDs
16
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796642 Deditec UC-ETH-O8-M8 UC-ETH-O8-M8 IO module Ethernet No. of digital outputs: 8 No. of digital inputs: 8 No. of relay out
User & Safety Instructions
User & Safety Instructions 3796642 Deditec UC-ETH-O8-M8 UC-ETH-O8-M8 IO module Ethernet No. of digital outputs: 8 No. of digital inputs: 8 No. of relay out
Description
The Ethernet Modbus TCP IO module UC-ETH-O8-M8 with 8 optocoupler-inputs and 8 digital outputs enables a reliable signal processing in industrial applications. Thanks to the Ethernet interface and Modbus TCP, the IO module can be flexibly integrated into existing control systems. Ideal for machine monitoring or building automation - for instance for recording digital states or for switching actuators in real time.
This text is machine translated.
This text is machine translated.
Features
- Modbus TCP, HTTP and open TCP protocol
- Fail-safe mode
- Configurable event control
- M2M functionality
- Free configuration and testing software
Scope of delivery
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector
- DIN-rail connector
System requirements
- Windows, Linux
