Name: Deditec UC-ETH-O8-R8_3A UC-ETH-O8-R8_3A IO module Ethernet No. of digital outputs: 8 No. of digital inputs: 8 No. of rel
Brand: Deditec
SKU: 3796641
Availability: BackOrder

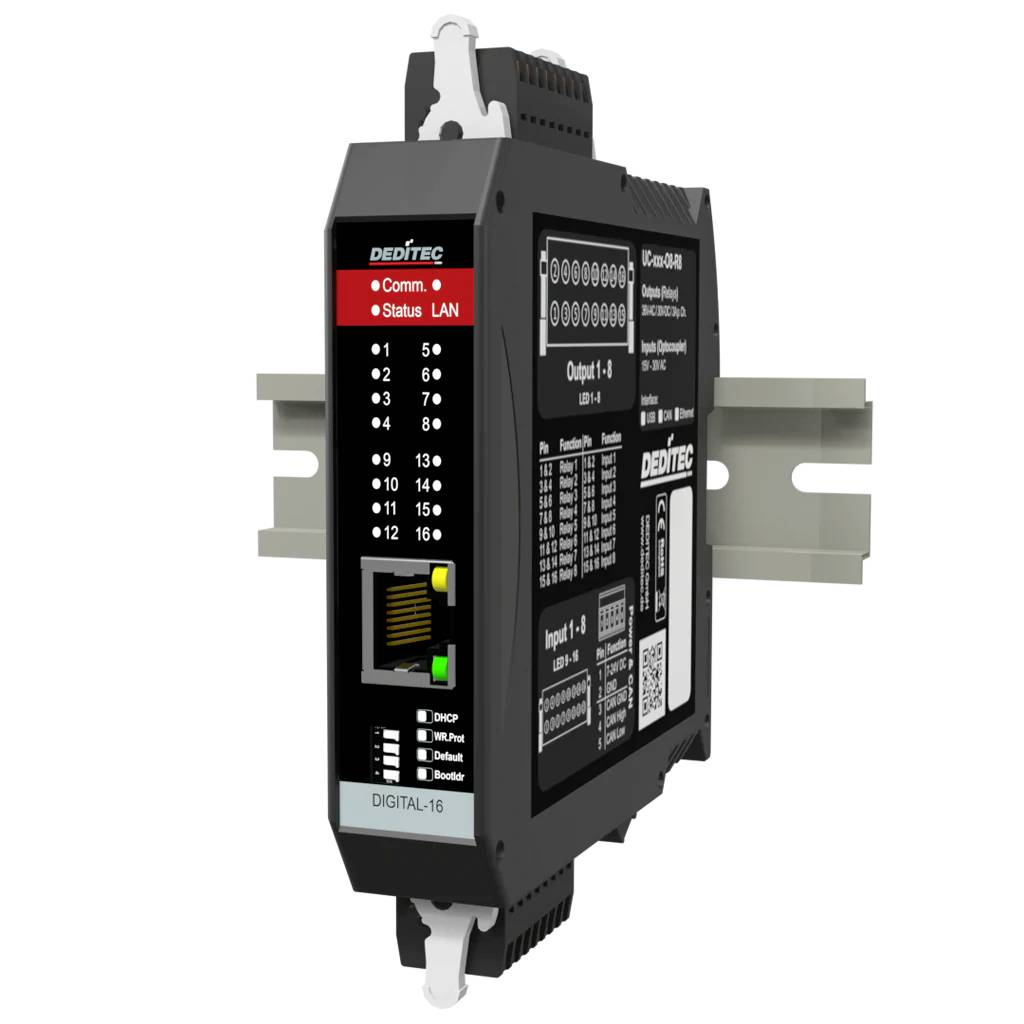

Black industrial DIN-rail module labeled 'DEDTEC DIGITAL-16' with red status LEDs, terminal numbers, and side mounting clips.

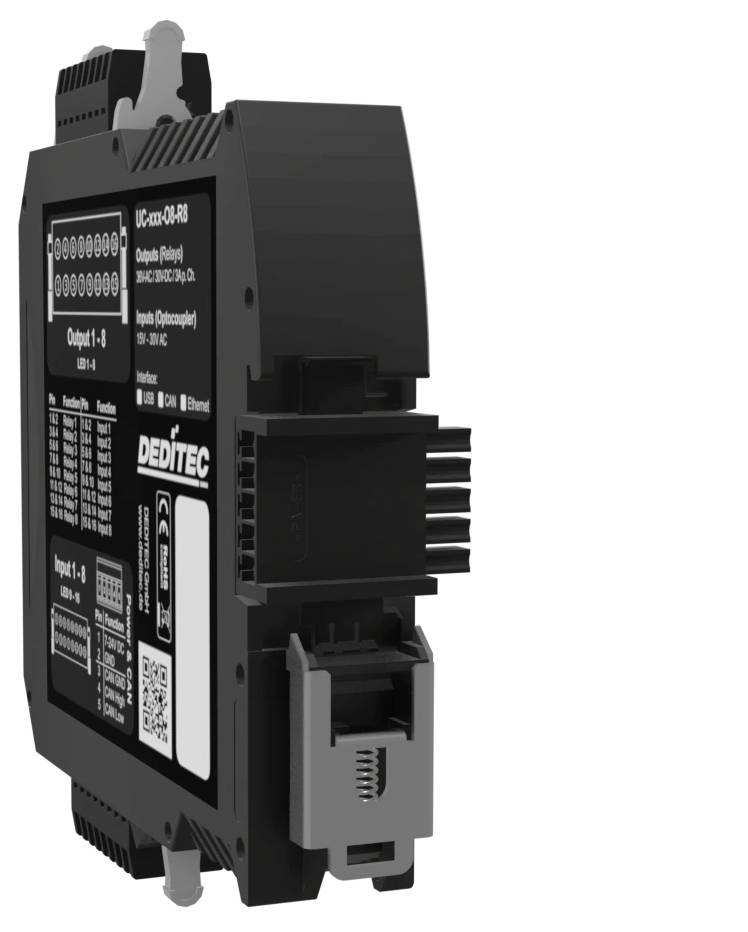

Black industrial I/O module labeled 'DEDITEC' with front wiring terminals and port connectors, shown in three-quarter view on a white background.

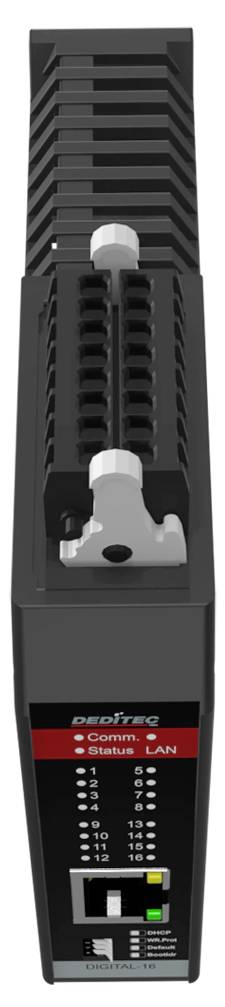

Front view of a DeeNiric network equipment unit with status lights, ports, and labeled indicators for Comm., Status, and LAN.

1/3

Product type

IO module

Interfaces

Ethernet

No. of relay outputs

Type

UC-ETH-O8-R8_3A

Operating voltage

7 V DC

24 V DC

Datasheet (PDF)

Part number:

Item no:

Dispatches on Wed 4 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 385.00 / piece)

€ 385.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Ethernet Modbus TCP IO module with 8 opto coupler inputs and 8 digital outputs (3 A), WEB Interface (Modbus TCP enabled)

Ethernet 10/100 Mbit/s
Supported protocols: HTTP, UDP, TCP, DHCP, Modbus-TCP
Control: API for Windows and Linux (DELIB driver library), Command Line Interface, disclosed TCP protocol, Modbus TCP
Encrypted Ethernet communication is possible
Open standard or Modbus TCP protocol
Web interface and APP (smartphone and tablet)
Galvanically separated up to 1.5 kV
Possible to connect via Wi-Fi
WPS function
Closer (NO)
Max. SWITCHING VOLTAGE 48 V AC/DC
Max. SWITCHING CURRENT 3 A AC / DC
Max. TRANSPORT CURRENT 3 A AC / DC
Max. breaking capacity 90 W
Timeout-protection function (can be configured via software)
Status LED for each output
Type: Optocouplers AC / DC
Signal level ±5 V to ±15 V or ±15 V to ±30 V.
16 bit counter per channel (up to 100Hz)
Detects a change from Low to High and High to Low Level (Flip-Flop)
Status LED for each channel

Technical specifications

Integrated 16-bit counter for each channel
Operating temperature: +10°C to + +50°C.

Product type: IO module

Interfaces: Ethernet

Type: UC-ETH-O8-R8_3A

Operating voltage: 7 V DC
24 V DC

Operating voltage: 7 to 24 V DC

Height: 120 mm

Length: 111 mm

Width: 22.5 mm

No. of digital inputs: 0

No. of digital inputs: 8

No. of digital outputs: 8

No. of relay outputs: 8

Dim: (L x W x H) 111 x 22.5 x 120 mm

Control LEDs: Yes

Manufacturer part #: UC-ETH-O8-R8_3A

Fitting type (details): Rail mounting (Mounting rail 35 mm x 7.5 mm)

Relay rating: 3 A

Status LEDs: 16

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3796641 Deditec UC-ETH-O8-R8_3A UC-ETH-O8-R8_3A IO module Ethernet No. of digital outputs: 8 No. of digital inputs: 8 No. of rel

User & Safety Instructions

User & Safety Instructions 3796641 Deditec UC-ETH-O8-R8_3A UC-ETH-O8-R8_3A IO module Ethernet No. of digital outputs: 8 No. of digital inputs: 8 No. of rel

Description

The Ethernet Modbus TCP IO module UC-ETH-O8-R8_3A with 8 optocoupler-inputs and 8 digital outputs enables a reliable signal processing in industrial applications. Thanks to the Ethernet interface and Modbus TCP, the IO module can be flexibly integrated into existing control systems. Ideal for machine monitoring or building automation - for instance for recording digital states or for switching actuators in real time.

This text is machine translated.
