Deditec UC-USB-DA8_16 UC-USB-DA8_16 D/A converter USB 2.0 port No. of digital outputs: 8 No. of digital inputs: 0 No. of
Product type
D/A converter
Interfaces
USB 2.0 port
No. of relay outputs
0
Type
UC-USB-DA8_16
Operating voltage
12 V DC
24 V DC
Datasheet (PDF)
Part number:
Item no:
Number
Total (€ 615.00 / piece)
€ 615.00
incl. VAT
14-day return policy included
Highlights & Details
USB analogue converter * 16-bit D/A converter - 8 channels
- USB 2.0 interface up to 480 Mbit/s.
- Quick start-up through plug-and-play integration
- Control: API for Windows and Linux (DELIB driver library), Command Line Interface
- 16-bit resolution of each channel
- 0-5 V, 0-10 V, ±5 V, ±10 V
- Galvanic isolation for voltage supply: Max. 500 V AC
- Conversion time of D/A converter: 10-12 µs
- Load resistance: ≥ 2 kOhm
Technical specifications
- Galvanic isolation available
- Plug-in connection system (WAGO technology)
- Product type
D/A converter
- Interfaces
USB 2.0 port
- Type
UC-USB-DA8_16
- Operating voltage
12 V DC
24 V DC
- Operating voltage
12 to 24 V DC
- Height
120 mm
- Length
111 mm
- Width
22.5 mm
- No. of digital inputs
0
- No. of digital inputs
0
- No. of digital outputs
8
- No. of relay outputs
0
- Dim
(L x W x H) 111 x 22.5 x 120 mm
- Control LEDs
Yes
- Manufacturer part #
UC-USB-DA8_16
- Fitting type (details)
DIN rail TS
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796622 Deditec UC-USB-DA8_16 UC-USB-DA8_16 D/A converter USB 2.0 port No. of digital outputs: 8 No. of digital inputs: 0 No. of
User & Safety Instructions
User & Safety Instructions 3796622 Deditec UC-USB-DA8_16 UC-USB-DA8_16 D/A converter USB 2.0 port No. of digital outputs: 8 No. of digital inputs: 0 No. of
Description

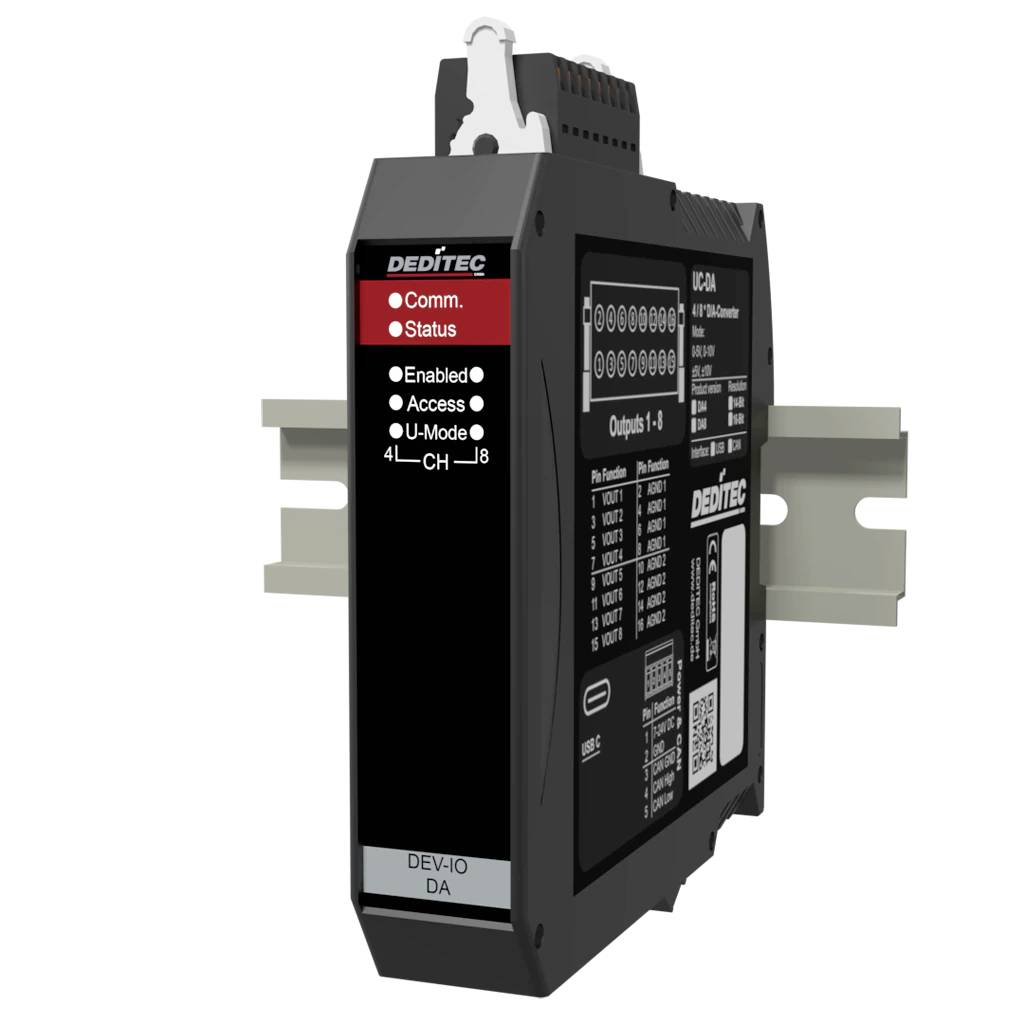

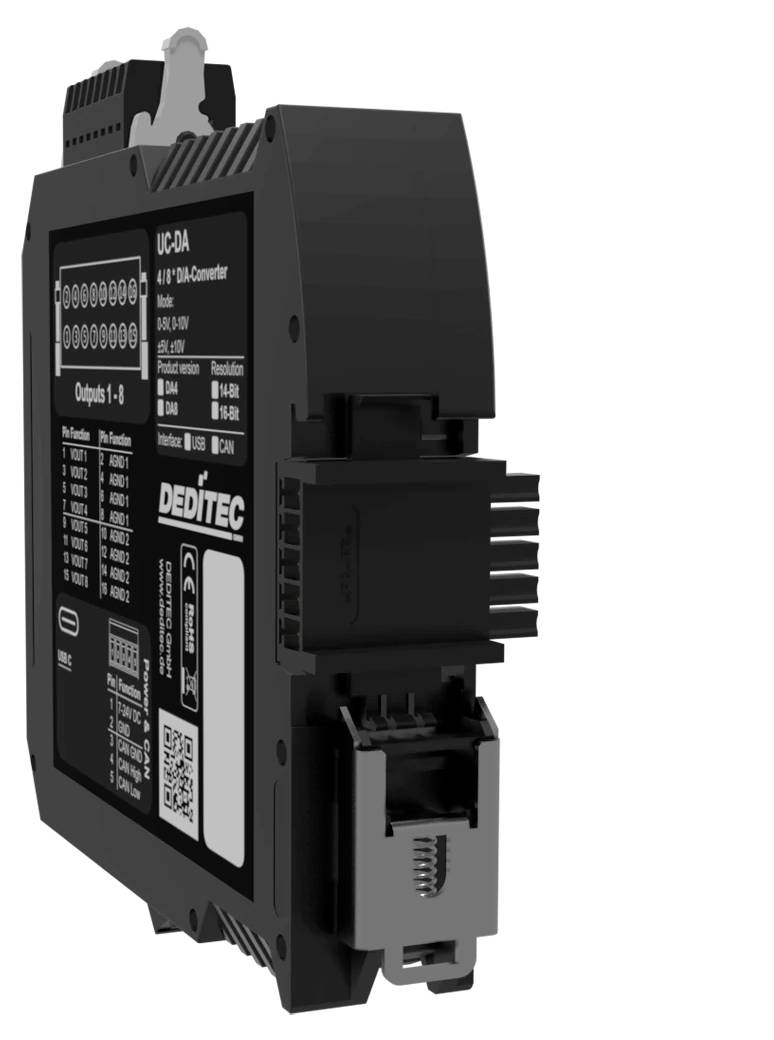

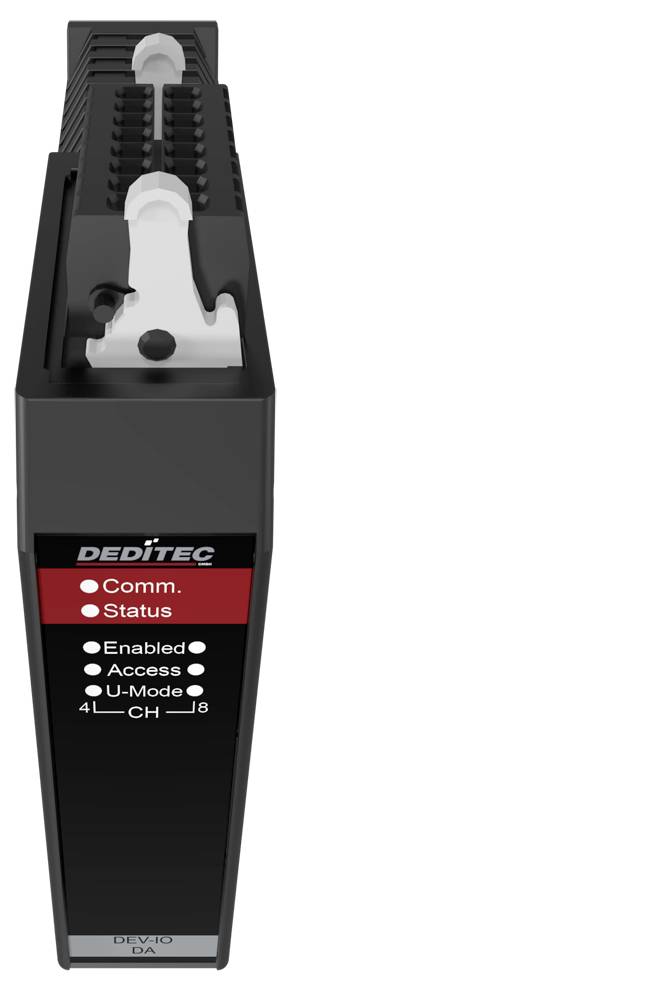

The USB Analog Converter UC-USB-DA8_16 offers 8 galvanically isolated 16-bit D/A outputs for precise voltage signals. Ideal for industrial automation and test bench technology. Typical applications: Control of control valves and simulation of analogue process signals for test and laboratory environments. USB‑C Plug-&‑Play provides for fast integration.
This text is machine translated.
This text is machine translated.
Features
- Configurable event control
- M2M functionality
- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Suitable for typical industrial indoor and switching cabinet environments
- Free configuration and testing software
Scope of delivery
- USB cable A-plug to C-plug
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector
- DIN-rail connector
System requirements
- Windows, Linux
