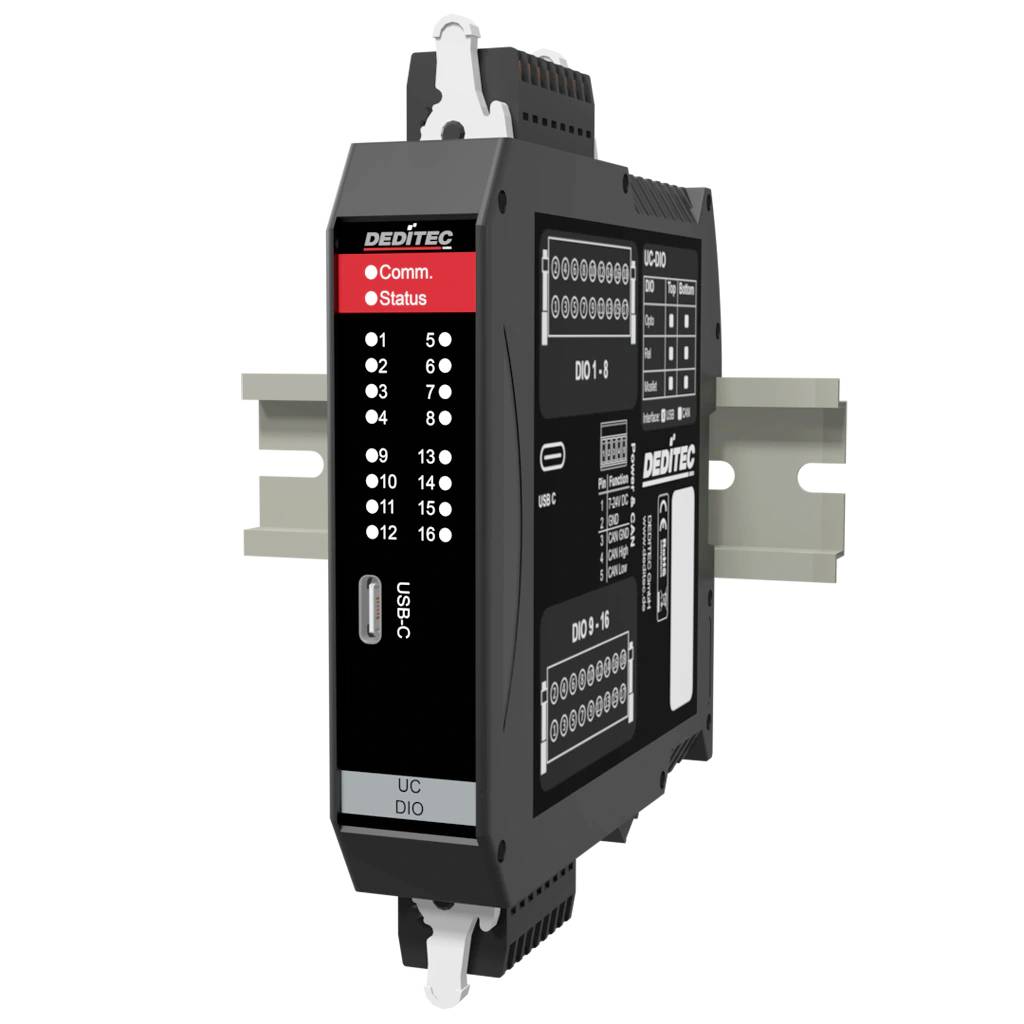

Deditec UC-USB-M16 UC-USB-M16 IO module USB-C No. of digital outputs: 16 No. of digital inputs: 0 No. of relay outputs:
Product type
IO module
Interfaces
USB-C
No. of relay outputs
0
Type
UC-USB-M16
Operating voltage
24 V DC
7 V DC
Datasheet (PDF)
Part number:
Item no:
Number
Total (€ 405.00 / piece)
€ 405.00
incl. VAT
14-day return policy included
Highlights & Details
USB digital outputs switch – relay module with 16 digital outputs (MOSFET)
- USB 2.0 interface up to 480 Mbit/s.
- Quick start-up through plug-and-play integration
- Control: API for Windows and Linux (DELIB driver library), Command Line Interface
- Max. Switching voltage 36 V DC
- Min Switching voltage 2.8 V DC
- Max. Switching current 3 A DC
- Max. Switching capacity 108 W DC
- Timeout-protection function (can be configured via software)
- Status LED for each output
Technical specifications
- 16 x channel LEDs for outputs 1–16
- Current consumption: Max. 130 mA / 24 V
- Output type MOSFET P-Ch
- Ambient temperature: +10°C to +50°C
- Product type
IO module
- Interfaces
USB-C
- Type
UC-USB-M16
- Operating voltage
24 V DC
7 V DC
- Operating voltage
7 to 24 V DC
- Height
120 mm
- Length
111 mm
- Width
22.5 mm
- No. of digital inputs
0
- No. of digital inputs
0
- No. of digital outputs
16
- No. of relay outputs
0
- Cable length
1 m
- Dim
(L x W x H) 111 x 22.5 x 120 mm
- Control LEDs
Yes
- Manufacturer part #
UC-USB-M16
- Fitting type (details)
Clip on top hat rail TS 35 x 7.5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796629 Deditec UC-USB-M16 UC-USB-M16 IO module USB-C No. of digital outputs: 16 No. of digital inputs: 0 No. of relay outputs:
User & Safety Instructions
User & Safety Instructions 3796629 Deditec UC-USB-M16 UC-USB-M16 IO module USB-C No. of digital outputs: 16 No. of digital inputs: 0 No. of relay outputs:
Description
The USB relay module with 16 digital outputs (MOSFET) allows the safe switching of loads up to 48 V/3 A. Thanks to USB plug & play, the module is ready for immediate use. Electrical isolation, timeout protection and status LEDs increase operational safety. Typical applications are switching lighting systems or controlling pumps and valves in industrial plants.
This text is machine translated.
This text is machine translated.
Features
- Configurable event control

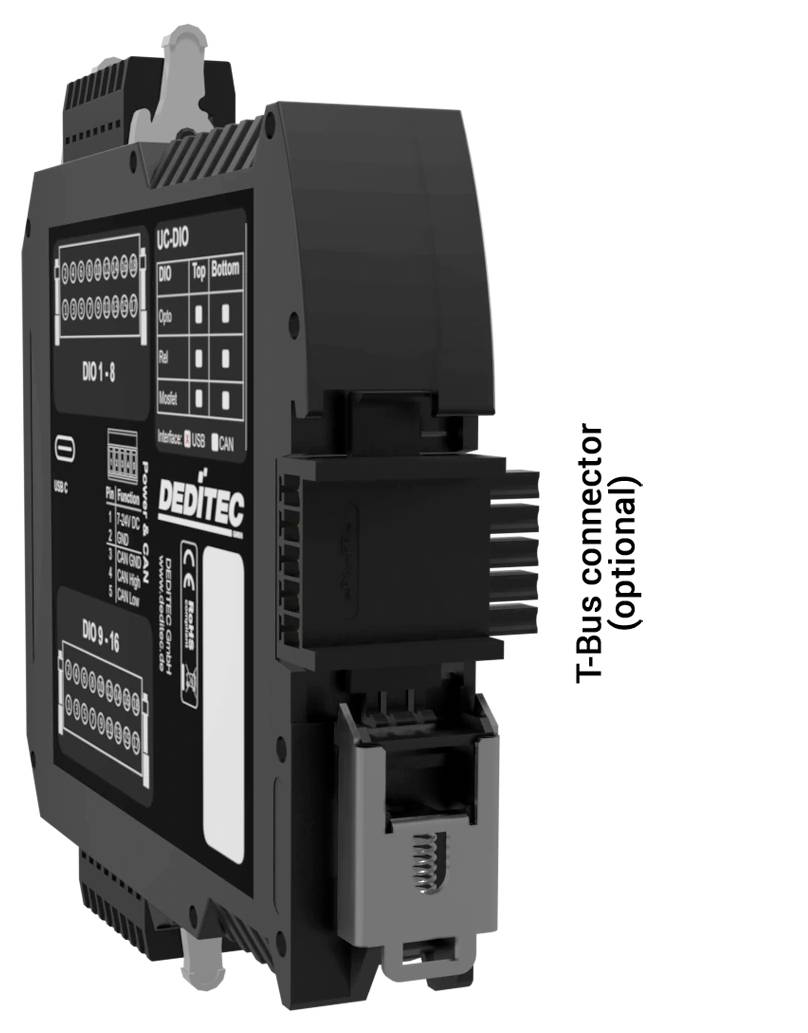

- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Suitable for typical industrial indoor and switching cabinet environments
- Free configuration and testing software
Scope of delivery
- USB cable A-plug to C-plug
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector
- DIN-rail connector
System requirements
- Windows, Linux
