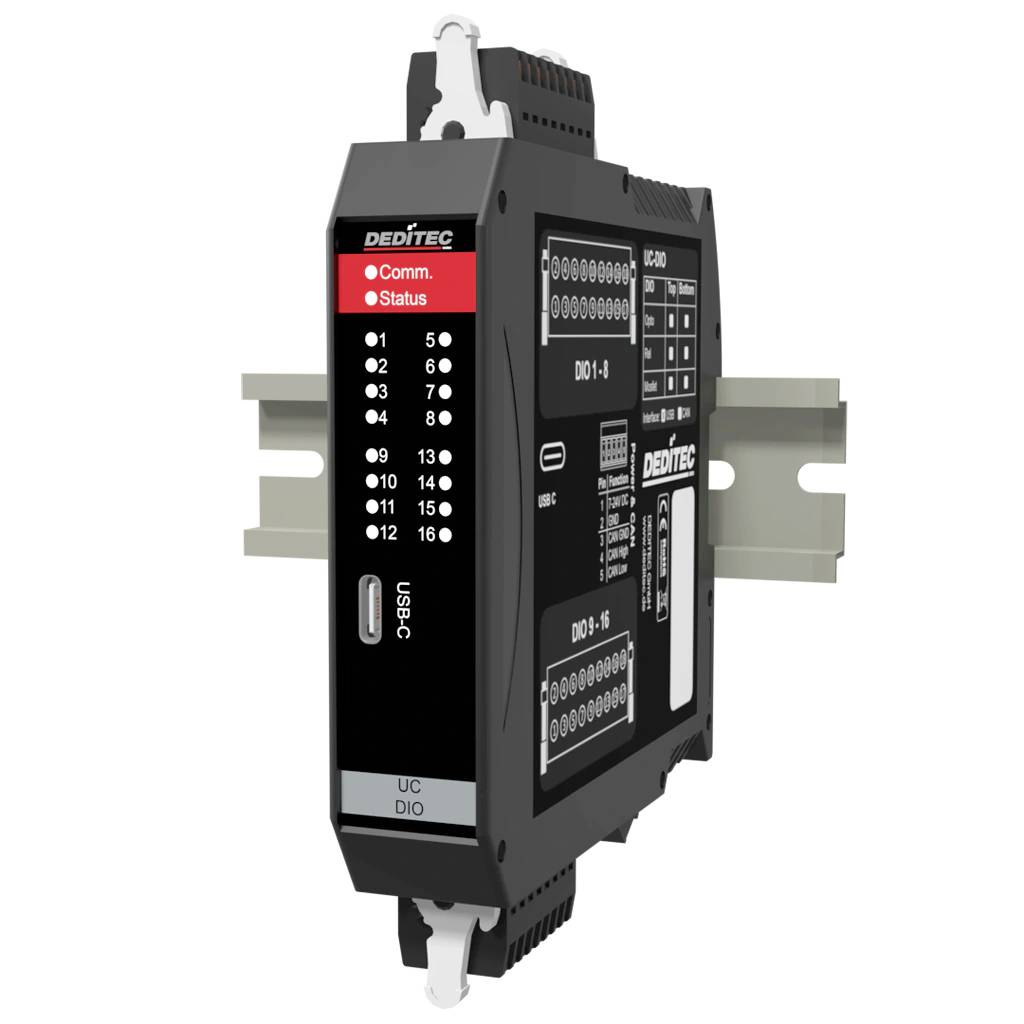

Deditec UC-USB-O8-R8_3A UC-USB-O8-R8_3A IO module CAN, USB-C No. of digital outputs: 8 No. of digital inputs: 8 No. of r
Part number:
Item no:
Product type
IO module
Interfaces
CAN
USB-C
No. of relay outputs
8
Type
UC-USB-O8-R8_3A
Operating voltage
7 V DC
24 V DC
Datasheet (PDF)
Number
Total (€ 331.93 / piece)
€ 331.93
plus VAT.
Highlights & Details
USB hybrid module digital IO DiO EA module * 8 optocoupler inputs and 8 digital outputs (3 A)
- USB 2.0 interface up to 480 Mbit/s.
- Quick start-up through plug-and-play integration
- Control: API for Windows and Linux (DELIB driver library), Command Line Interface
- Closer (NO)
- Max. SWITCHING VOLTAGE 48 V AC/DC
- Max. SWITCHING CURRENT 3 A AC / DC
- Max. TRANSPORT CURRENT 3 A AC / DC
- Max. breaking capacity 90 W
- Timeout-protection function (can be configured via software)
- Status LED for each output
- Type: Optocouplers AC / DC
- Signal level ±5 V to ±15 V or ±15 V to ±30 V.
- 16 bit counter per channel (up to 100Hz)
- Detects a change from Low to High and High to Low Level (Flip-Flop)
- Status LED for each channel
Technical specifications
- Operating temperature: +10°C to + +50°C.
- Product type
IO module
- Interfaces
CAN
USB-C
- Type
UC-USB-O8-R8_3A
- Operating voltage
7 V DC
24 V DC
- Operating voltage
7 to 24 V DC
- Height
120 mm
- Length
111 mm
- Width
22.5 mm
- No. of digital inputs
0
- No. of digital inputs
8
- No. of digital outputs
8
- No. of relay outputs
8
- Dim
(L x W x H) 111 x 22.5 x 120 mm
- Control LEDs
Yes
- Manufacturer part #
UC-USB-O8-R8_3A
- Fitting type (details)
Rail mounting (Mounting rail 35 mm x 7.5 mm)
- Relay rating
3 A
- Status LEDs
16
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796632 Deditec UC-USB-O8-R8_3A UC-USB-O8-R8_3A IO module CAN, USB-C No. of digital outputs: 8 No. of digital inputs: 8 No. of r
User & Safety Instructions
User & Safety Instructions 3796632 Deditec UC-USB-O8-R8_3A UC-USB-O8-R8_3A IO module CAN, USB-C No. of digital outputs: 8 No. of digital inputs: 8 No. of r
Description
The UC-USB-O8-M8 hybrid module combines 8 optical link inputs with 8 MOSFET outputs for flexible industrial IO tasks. Ideal for signal monitoring in machines or the control of valves and switching loads. Electrical isolation, adjustable filters and USB‑C Plug-&‑Play ensure reliable operation and easy integration.
This text is machine translated.
This text is machine translated.
Features
- Supply voltage +7 V to +24 V DC
- Plug-in female multipoint connectors with locking mechanism
- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature +10 °C to +50 °C (extended teem
- Fail-safe mode
- Configurable event control
- M2M functionality
- Free configuration and testing software
Scope of delivery
- USB cable A-plug to C-plug
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector

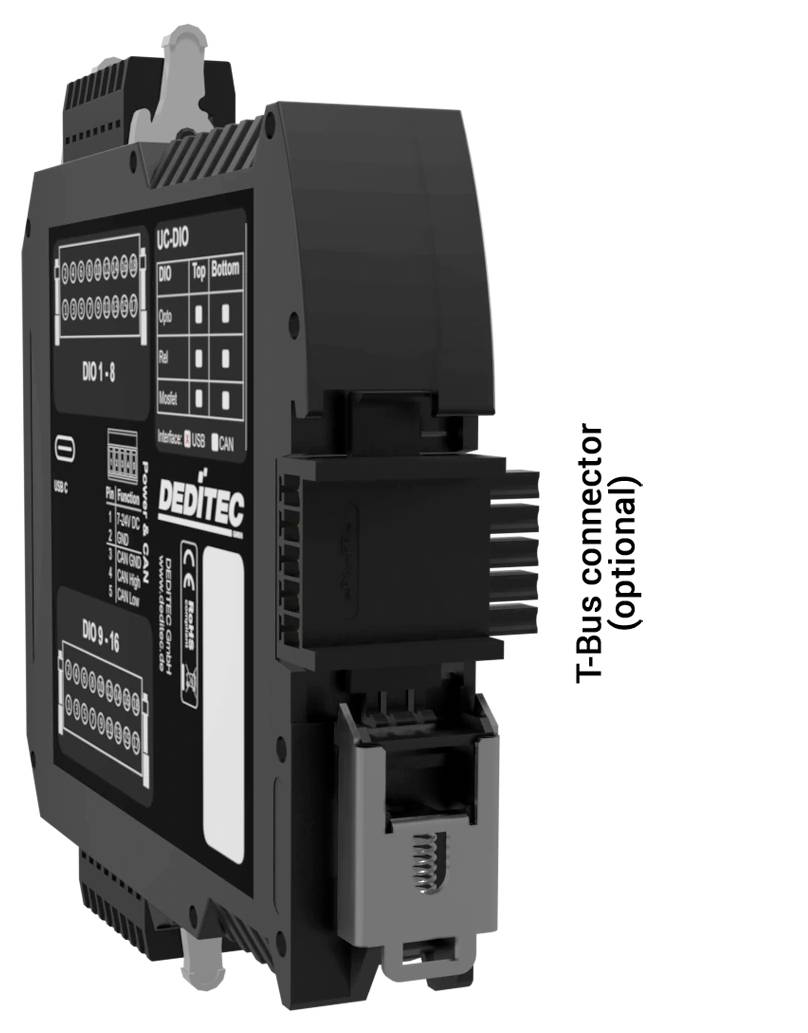

- DIN-rail connector
System requirements
- Windows, Linux
