Deditec WEU-OPTOIN-8 WEU-OPTOIN-8 GPI module Wi-Fi, Ethernet, USB No. of digital inputs: 8
Product type
GPI module
Interfaces
Wi-Fi
Ethernet
USB
Type
WEU-OPTOIN-8
Operating voltage
5 V DC
Height
55 mm
EAN:
Part number:
Item no:
Number
Total (€ 214.99 / piece)
€ 214.99
incl. VAT
14-day return policy included
Highlights & Details
WEU-OPTOIN-8
- 8 optocoupler inputs: 15V – 30V (optional 5V – 15V) AC / DCGalvanic isolation of inputs: Max. 2500V16-bit counter per channel (up to 100Hz)Filter for counters/flipflops adjustable from 5ms to 255msFilter for scanning the digital input channels from 1ms to 255msConnection via WiFi possibleWPS functionUSB 2.0 interface up to 480 Mbit
Technical specifications
- Product type
GPI module
- Interfaces
Wi-Fi
Ethernet
USB
- Type
WEU-OPTOIN-8
- Operating voltage
5 V DC
- Height
55 mm
- Length
94 mm
- Width
88 mm
- No. of digital inputs
8
- Dim
(L x W x H) 94 x 88 x 55 mm
- Control LEDs
Yes
- Manufacturer part #
WEU-OPTOIN-8
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2623461 Deditec WEU-OPTOIN-8 WEU-OPTOIN-8 GPI module Wi-Fi, Ethernet, USB No. of digital inputs: 8
Description

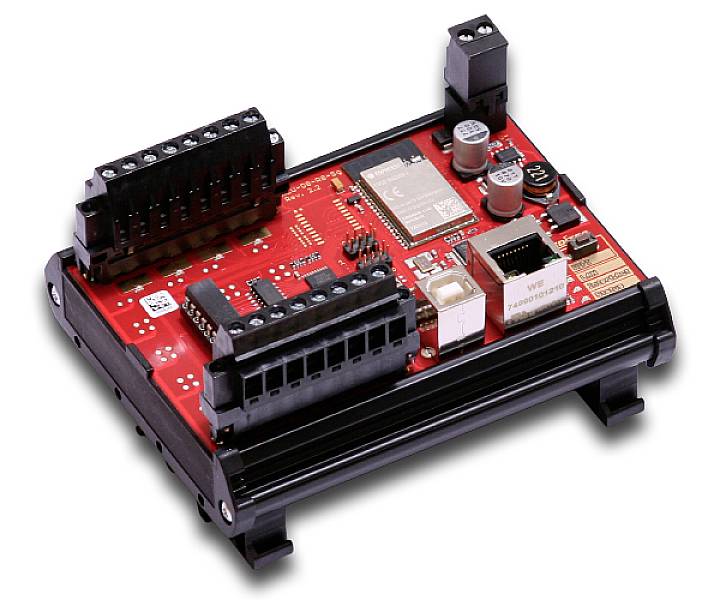

The WEU-OPTOIN-8 is a compact module with an Ethernet and USB interface. In addition, you can integrate and control this module via WiFi in your home or company network. It has 8 optocoupler inputs for digital recording of voltages in the range of 5V to 30V. Four DIP switches facilitate the network configuration and a series of status LEDs visualize the switching states of the optocouplers among other things. The connection wiring is made via two 8-pin pluggable screw terminals.
This text is machine translated.
This text is machine translated.
Features
- Digital-in input filterCounters
Scope of delivery
- DEDITEC driver CD
- 2-pin connector
- 8-pin connector
- USB cable
System requirements
- Windows, Linux, power supply
