Digitus DN-650106 DN-650106 Industrial Ethernet switch 8 ports 10 / 100 MBit/s
EAN:
Part number:
Item no:
Highlights & Details
Digitus DN-650106 industrial 8-port Fast Ethernet switch, unmanaged, redundant power supply
- 8 x 10/100Base-TX Ethernet ports
- Automatic cable detection - Auto MDI/MDI-X function
- Supported standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX
- IEEE802.3x flow control and back pressure
- Store-and-forward technology for optimized data transfer
Technical specifications
- Extended operating temperature range, -40 °C ~ +85 °C.
- Removable terminal connection
- Protection class: IP40
- Number of ports: 8
- Ethernet speed: Fast Ethernet
- Industrial use: Yes
- Mounting type: DIN rail, wall
- Product type
Industrial Ethernet switch
- LAN transfer rate
10 MBit/s
100 MBit/s
- Transfer rate
10 / 100 MBit/s
- Working principle
Unmanaged switch
- Ethernet ports
8
- 10/100 Mbps ports
8 x
- Port type
RJ45
- Auto-uplink at each port
Yes

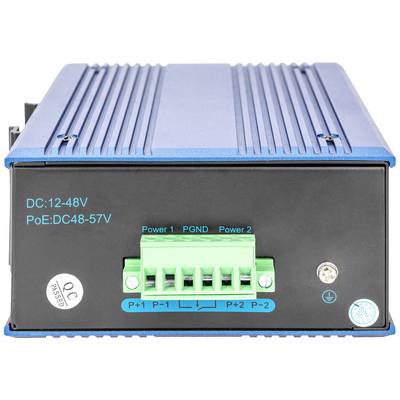

- Power supply (LOV)
mains-powered
mains-powered (redundant)
via terminal
via DIN rail PSU
- Weight
640 g
- Width
143 mm
- Height
101 mm
- Depth
44 mm
- Type
DN-650106
- Interfaces
LAN (10/100 Mbps)
RJ45
IP40
- Factory colour
Blue
Blue-purple
Blue
Cobalt blue
Black
- Operating voltage
48 V DC
- Max. ambient temperature
+85 °C
- Min. ambient temperature
-40 °C
- Port
8 ports
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2259025 Digitus DN-650106 DN-650106 Industrial Ethernet switch 8 ports 10 / 100 MBit/s
Description
Digitus DIGITUS® Industrial Fast Ethernet Switch is designed for harsh environments where it is exposed to humidity, temperature fluctuations and vibration. With a temperature range of -40°C to 85°C, the Industrial Fast Ethernet Switch can be used under the most unfavorable conditions. Continuous availability is ensured in highly sensitive areas such as transport, production, transport and security monitoring. The simple plug-and-play system allows the Industrial Fast Ethernet switch to be quickly integrated into the respective environment. Due to Fast Ethernet connectivity, the Industrial Fast Ethernet Switch is thus a flexible, cost-effective solution for the industrial environment.
This text is machine translated.
This text is machine translated.
Features
- Automatic speed and half/full duplex recognition/setting
- Backplane with 1.6Gbps
- MAC address memory 2K
- compact, robust metal housing
- Excellent protection against short circuits
- Lightning protection and overvoltage protection
- DIN rail (DIN rail) and wall mounting possible
Scope of delivery
- Industrial 8-Port Fast Ethernet Switch
- Quick start guide
