Buy Digitus DN-651127 DN-651127 Industrial Ethernet switch 8 ports 10 / 100 / 1000 MBit/s

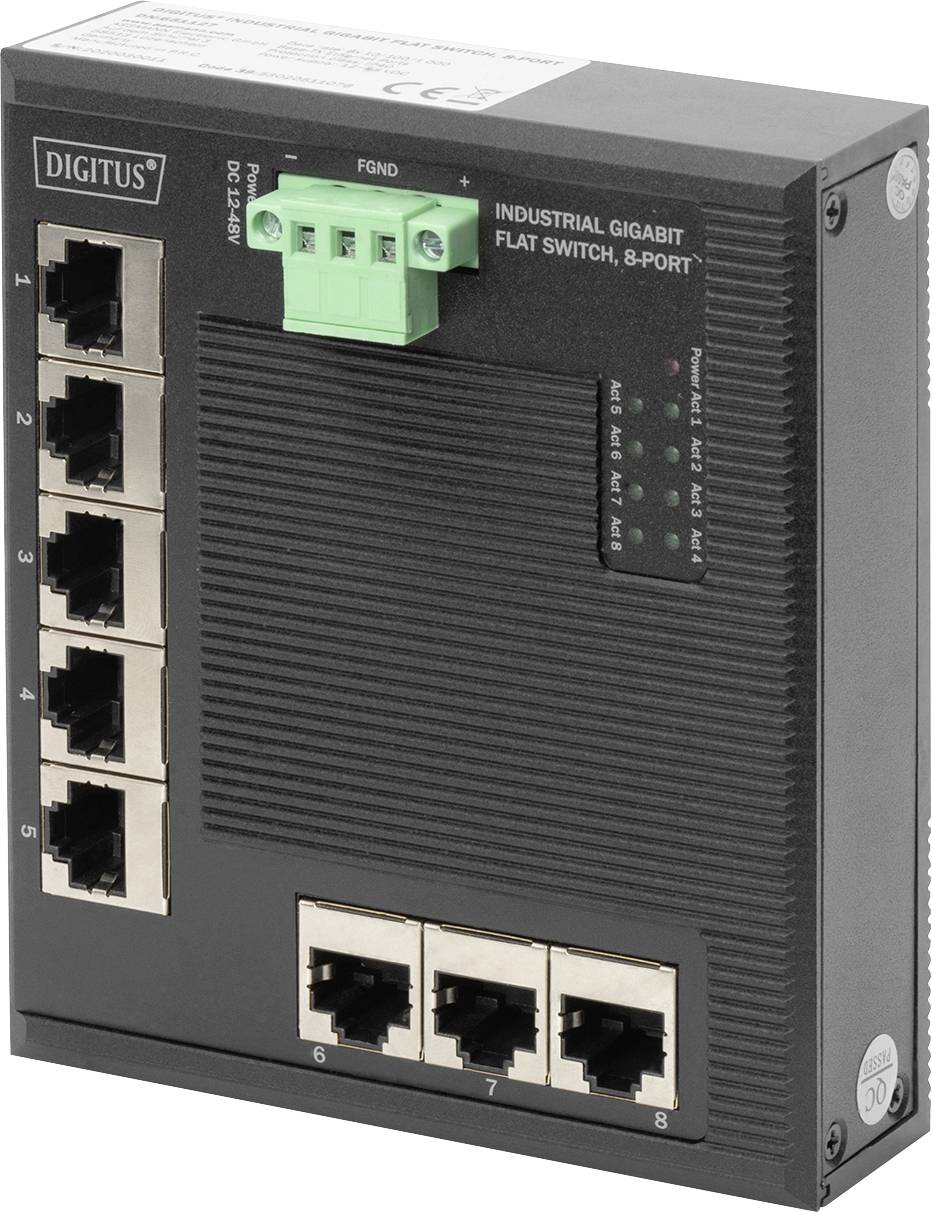

A black 8-port Gigabit industrial network switch by Digitus with green power connection terminal and LED indicators for network status.

A hand is holding a black device with a green connector. Two white arrows on the device point upwards and to the right.

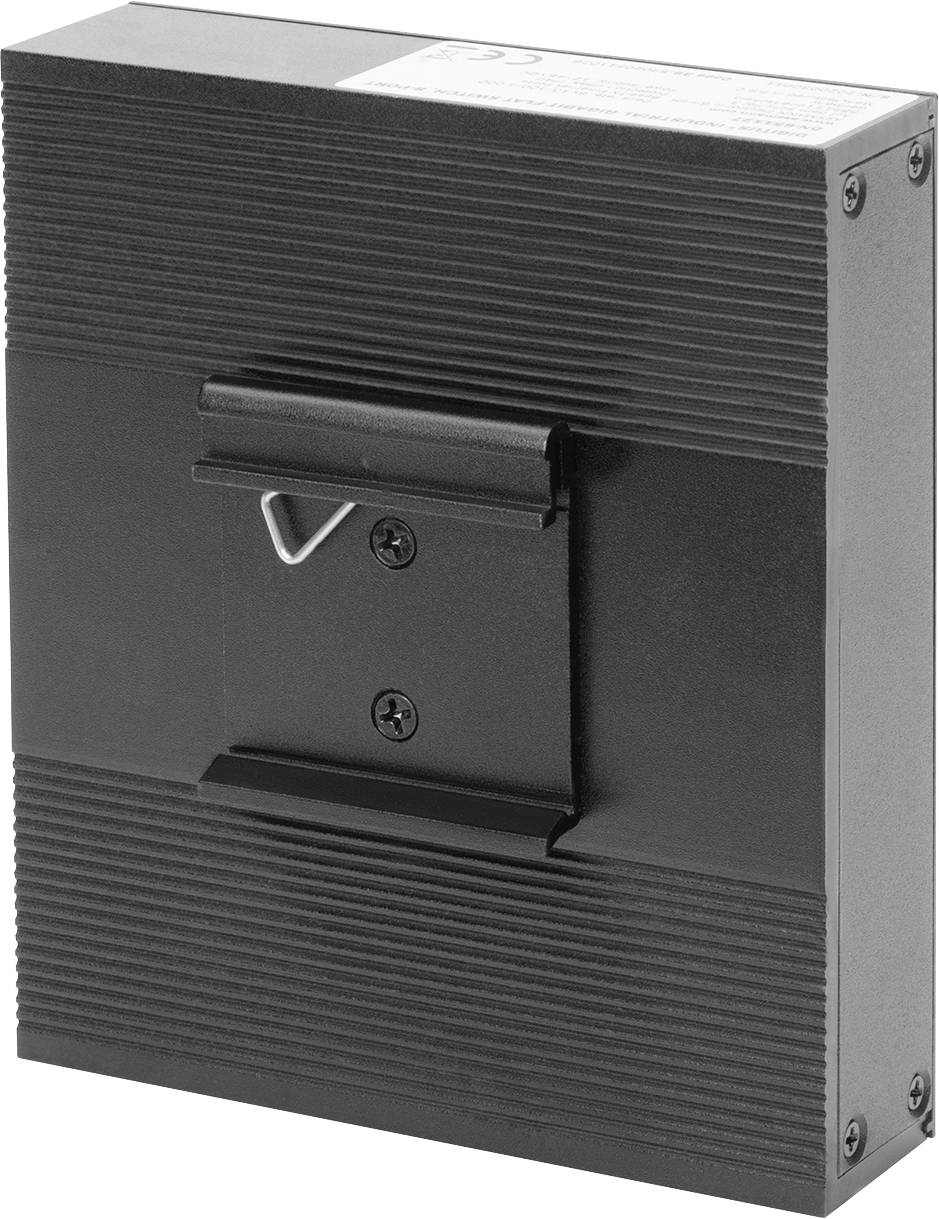

Black, rectangular electronic component with a handle and screws on the front.

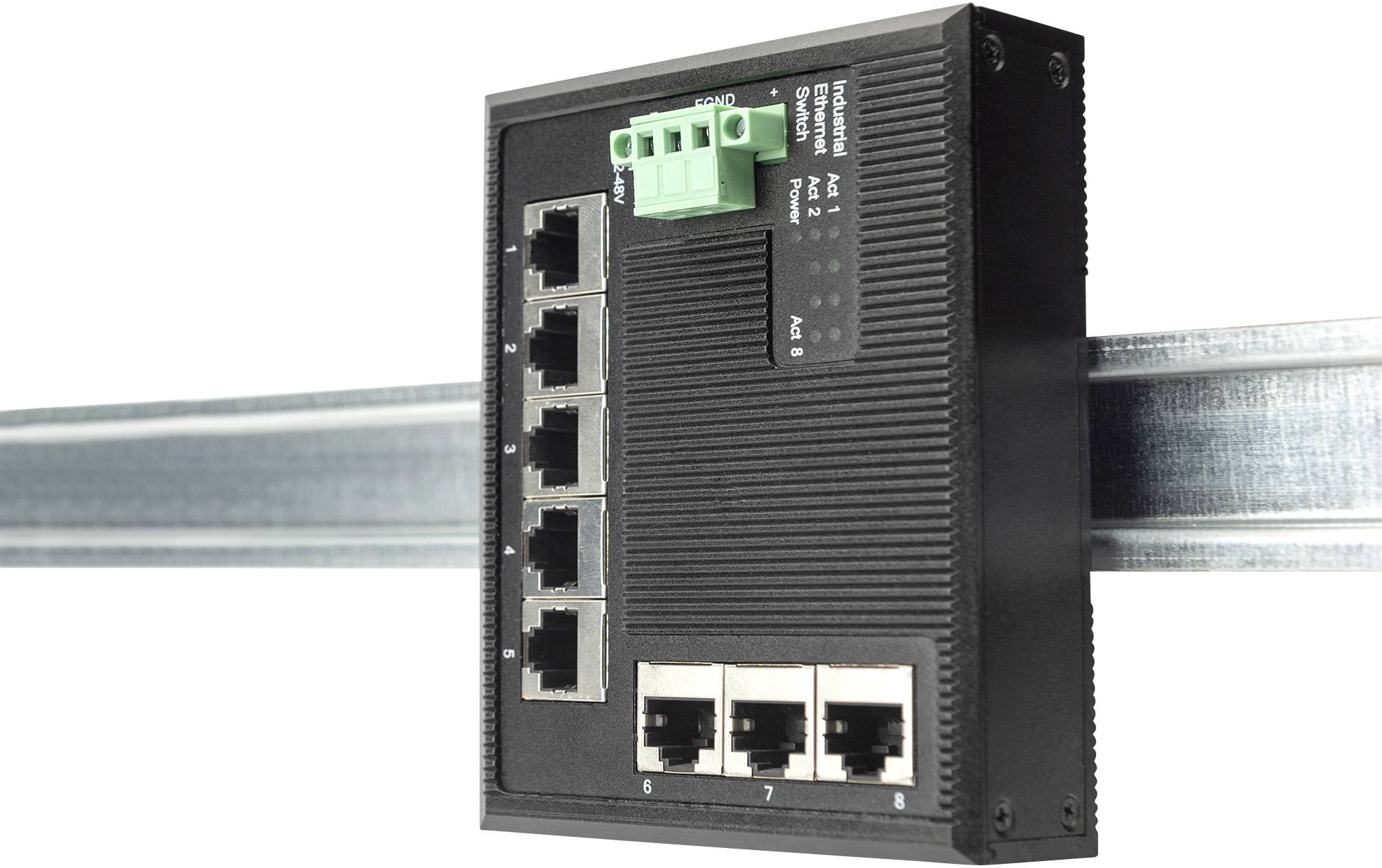

A black Ethernet switch with multiple ports is mounted on a metal rail. Green connection terminals are located on the top.

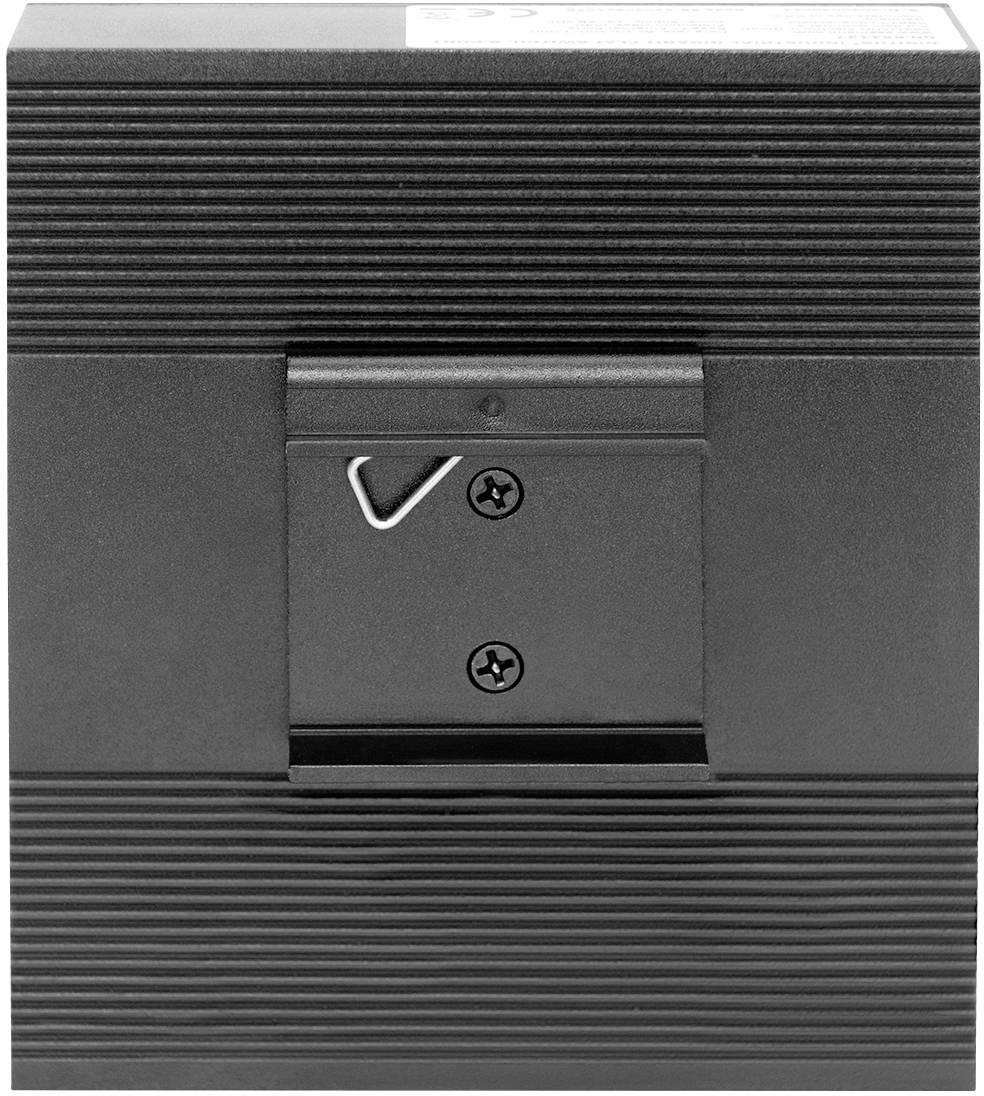

Black and white, rectangular device with horizontal grooves and a metal mounting bracket in the centre.

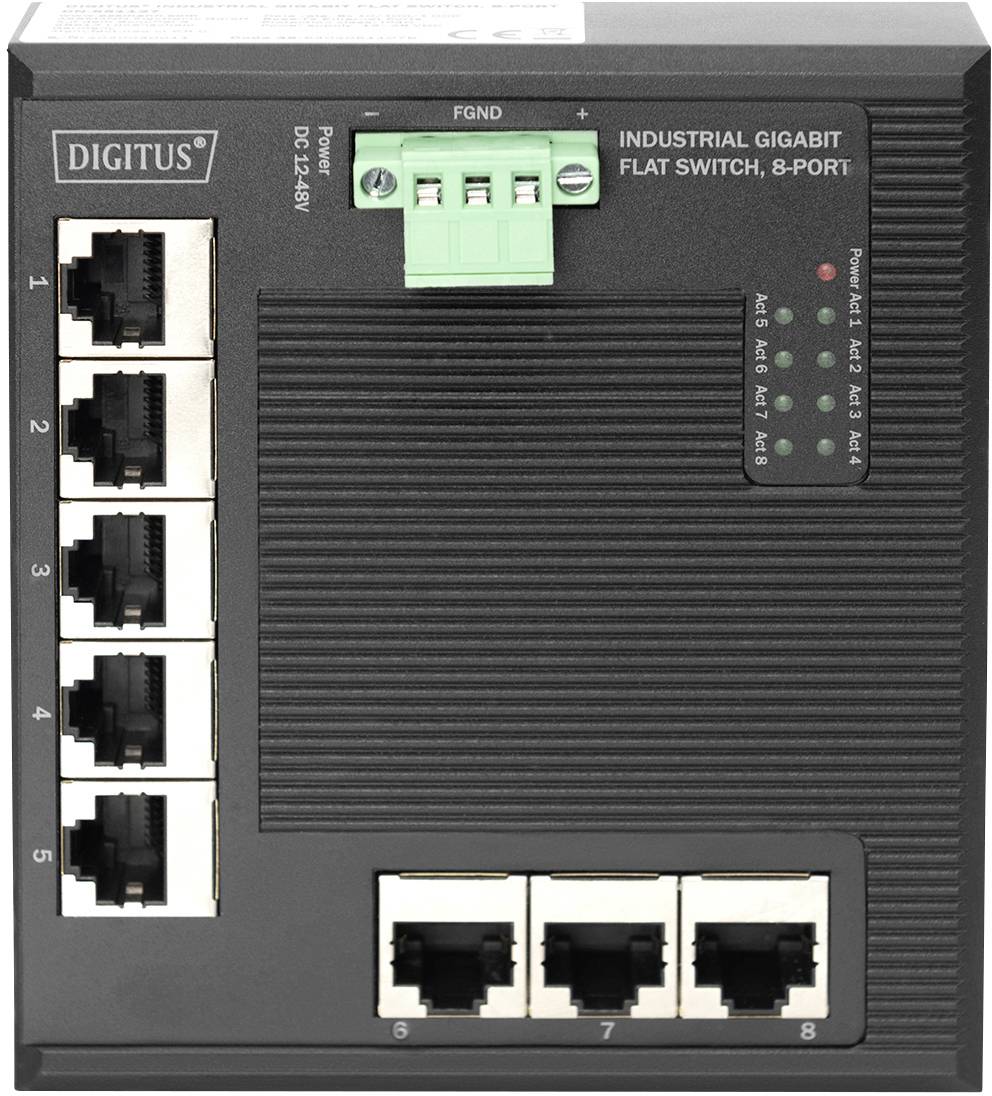

'Industrial Gigabit Flat Switch, 8-Port' with 6 vertical and 2 horizontal Ethernet ports. Top: green power connections.

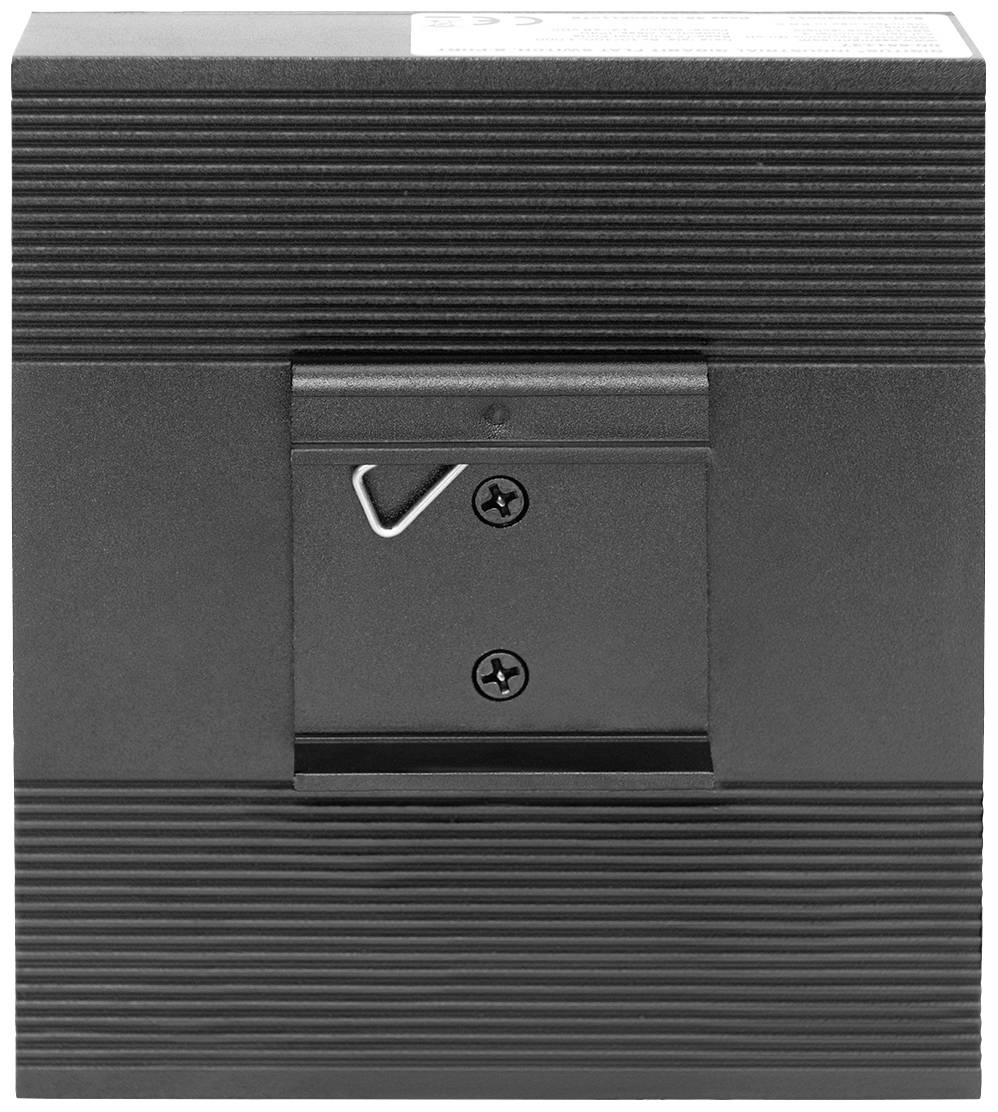

A square, black, ridged device with a metal mounting bracket and two screws on the front.

A black, industrial gigabit network switch with eight Ethernet ports for wired network connections.

8-Port Industrial Gigabit Flat Switch with eight Ethernet ports and indicator lights for displaying status and power supply.

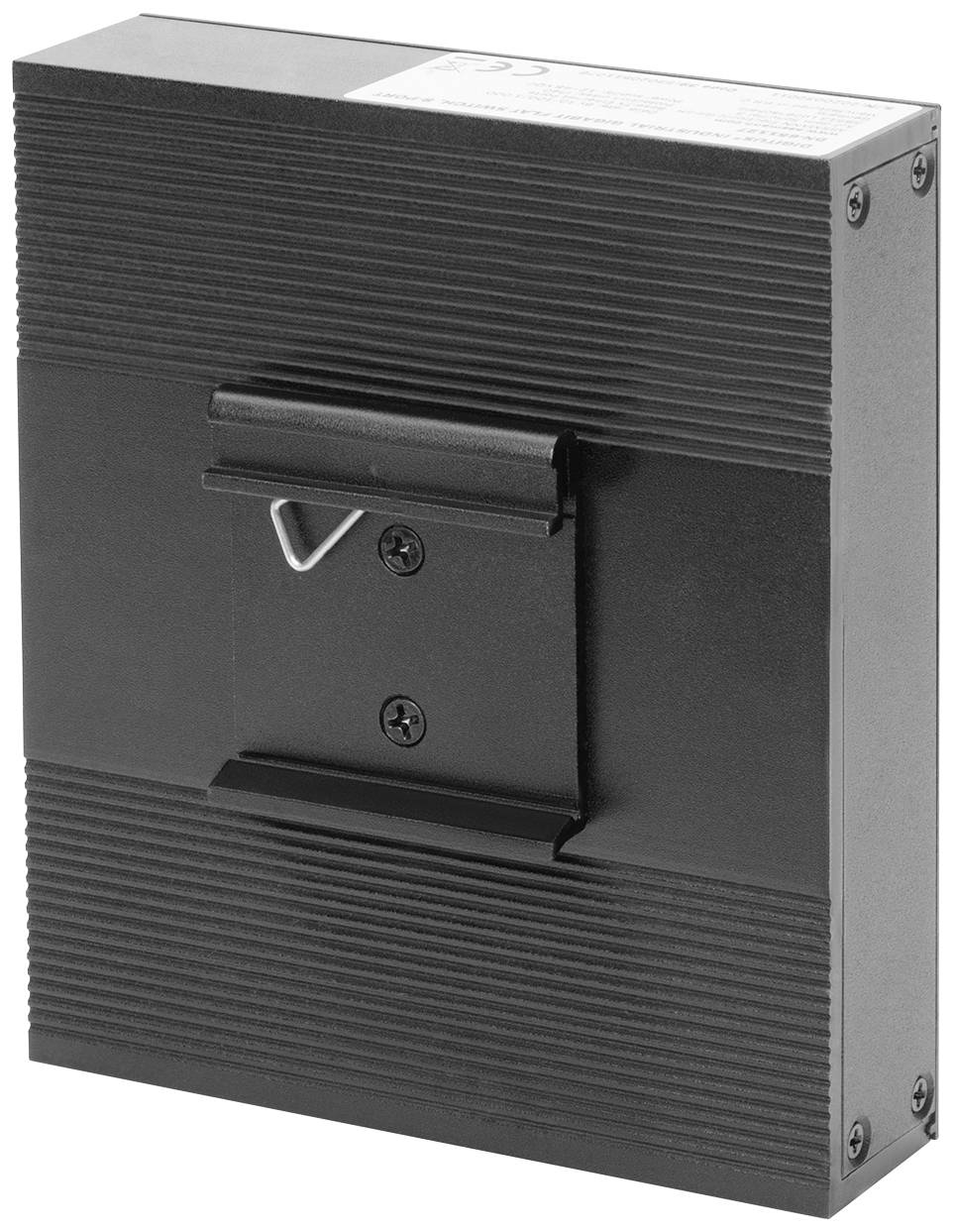

A rectangular, black device with a ribbed casing and a mount on the back.

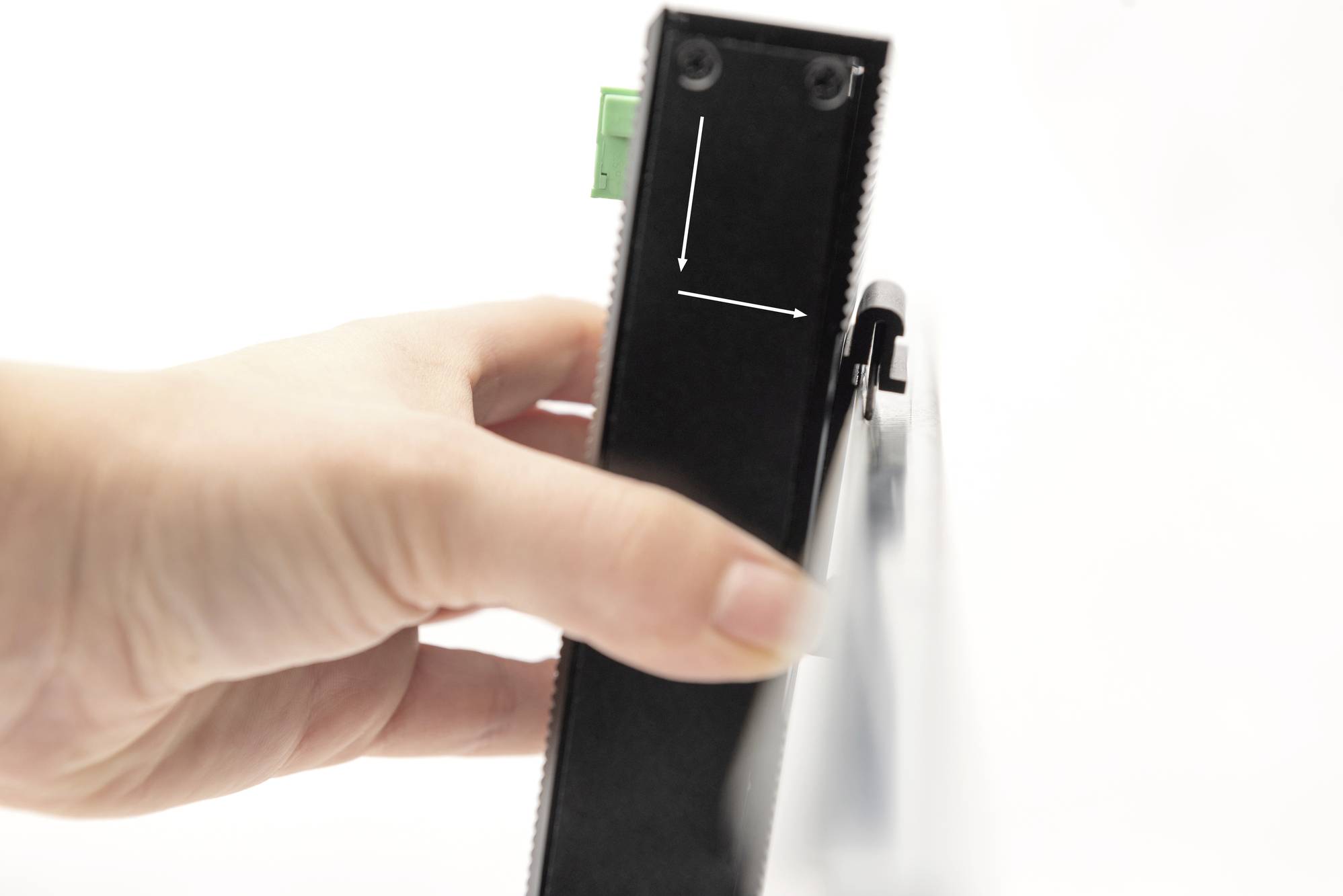

A hand is holding a black rectangular device that shows an engraved line with a right angle on its side.

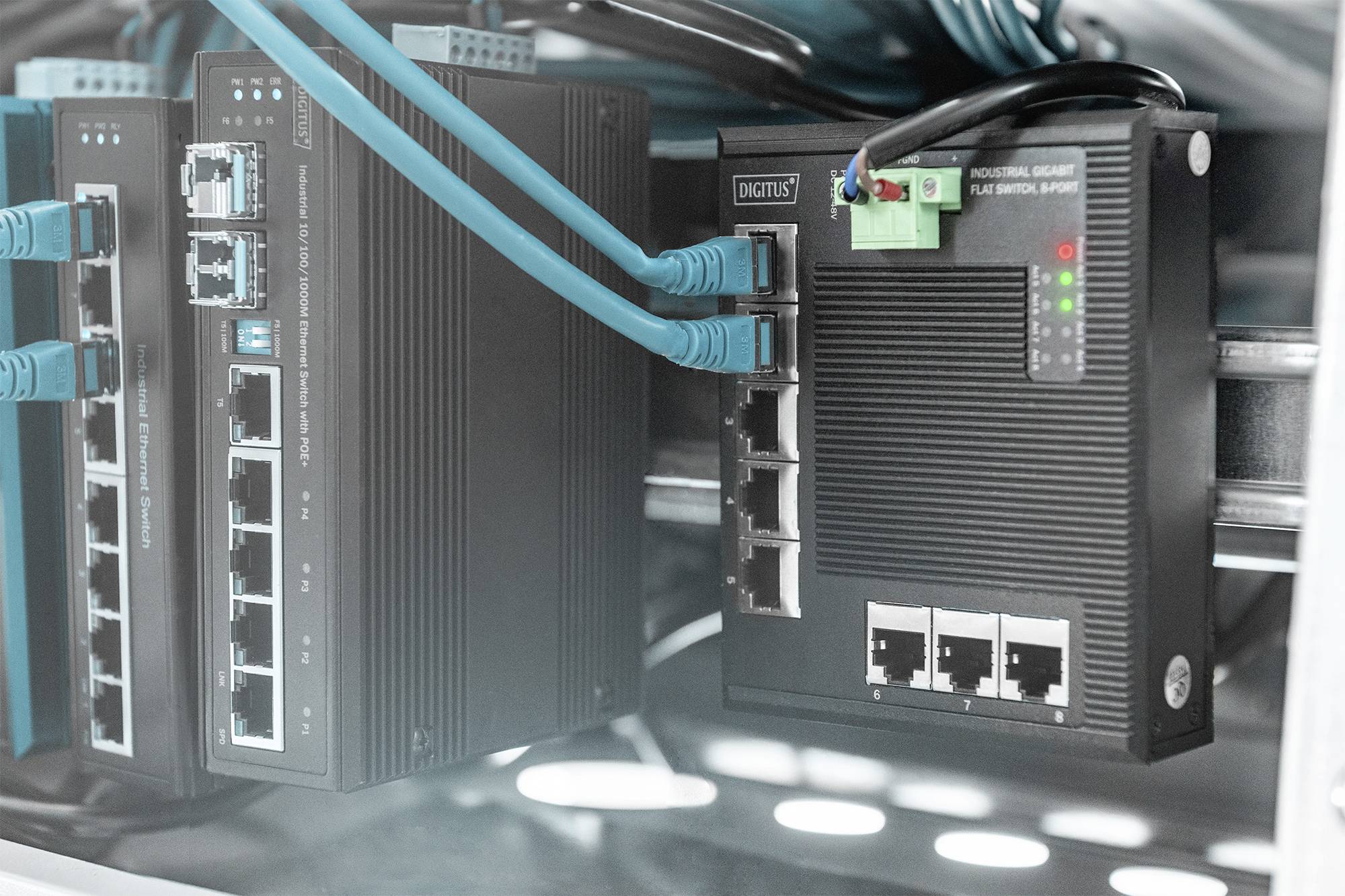

Network devices with multiple cable and connection interfaces in a server room. LEDs are illuminated on the front of the devices.

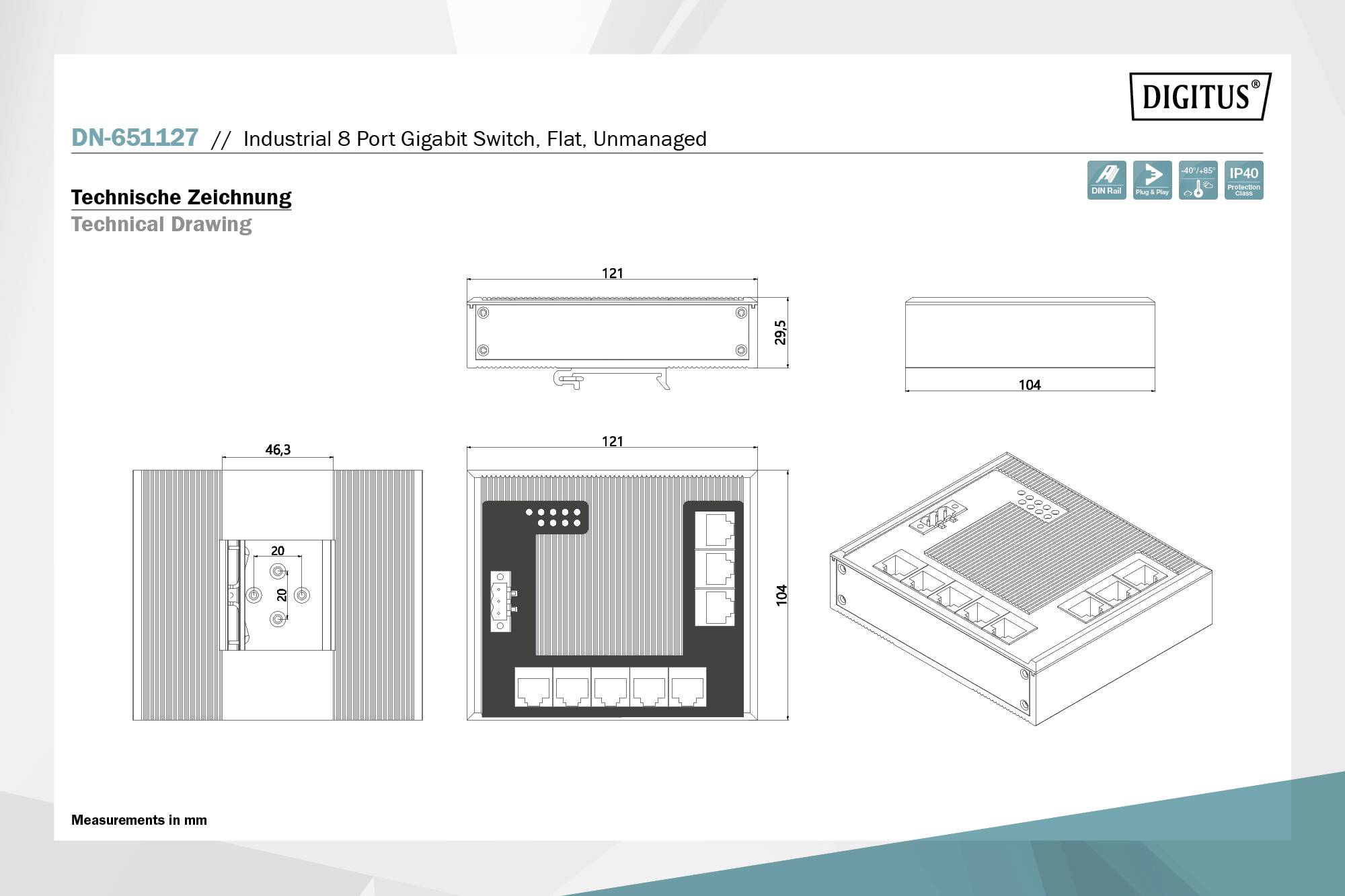

Industrial Gigabit Switch Drawing with Dimensions: 121mm x 46.3mm. Shows Top View, Front View and 3D Diagram.

1/13

8 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 92.43 / piece)

€

Only 8 Piece(s) available

Report legal concerns

Highlights & Details

Industrial 8-Port Gigabit Flat Switch DIN rail, extended temperature range

The Industrial Ethernet switch has 8 RJ45 ports with Gigabit Ethernet speed and comes in a robust, particularly compact metal housing, which is held in the colors black & blue
The power supply is designed redundantly and takes place via a terminal connection. In addition, the network switch has a lightning, short-circuit and overvoltage protection
In addition to DIN rail mounting on standardized DIN rails in switch boxes or control cabinets The space-saving industrial switch can also be mounted directly on the wall are

Technical specifications

Backplane capacity: 16 Gbps
MAC address memory: 4K (auto-learning, auto-aging)
Electrostatic standard: Contact 8kV, air 15kV
Power supply via terminal strip (3 terminals, +/-/PE)
Power supply 12 - 48 V DC
Operating temperature: -40°C to 85°C
Storage temperature -40°C ~ 85°C.
Operating humidity: 5% ~ 95% (non-condensing)
Storage humidity: 5% ~ 95% (non-condensing)
Dimensions: L 162 x W 135 x H 53 mm
Protection class: IP40
Power consumption: 8 watts
Number of ports: 8
Ethernet speed: Gigabit
Industrial use: Yes
Mounting type: DIN rail, wall

Product type: Industrial Ethernet switch

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s

Transfer rate: 10 / 100 / 1000 MBit/s

Working principle: Unmanaged switch

Ethernet ports: 8

10/100/1000 Mbps ports: 8 x

Port type: RJ45

Auto-uplink at each port: Yes

Jumbo frames: No

Power supply (LOV): mains-powered
mains-powered (redundant)
via terminal
via DC in
via DIN rail PSU

Weight: 420 g

Width: 120 mm

Height: 30 mm

Depth: 215 mm

Type: DN-651127

Interfaces: RJ45

: IP40

Factory colour: Black

Operating voltage: 48 V DC

Max. ambient temperature: 85 °C

Min. ambient temperature: -40 °C

Port: 8 ports

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2275128 Digitus DN-651127 DN-651127 Industrial Ethernet switch 8 ports 10 / 100 / 1000 MBit/s

Information

Information 2275128 Digitus DN-651127 DN-651127 Industrial Ethernet switch 8 ports 10 / 100 / 1000 MBit/s

Description

Digitus DIGITUS® Industrial Flat Gigabit Switch is designed for harsh environments where it is exposed to humidity, temperature fluctuations and vibration. With a temperature range of -40°C to 85°C, the Industrial Flat Gigabit Switch can be used under the most unfavorable conditions. The flat, fanless housing saves space and additional energy costs. It ensures continuous availability in highly sensitive areas such as transport, production, transport and security monitoring. Thanks to the simple plug-and-play system, the Industrial Flat Gigabit Switch can be quickly integrated into the respective environment. With its gigabit connectivity, the Industrial Gigabit Switch is a flexible and cost-effective solution for the industrial environment.

This text is machine translated.

Features

Thanks to IP40, the gigabit switch is protected against foreign objects (larger than 1 mm) - the extended temperature range is -40 to 85 °C - suitable for non-condensing humidity of 5 to 95 %
of the LAN switch has store-and-forward technology, automatic cable detection (auto MDI/MDI-X) & half-/full-duplex detection - Standards: IEEE802.3u, IEEE802.3ab, IEEE802.3x
8 x 10/100/1000Base-TX Ethernet ports
Automatic cable detection - Auto-MDI/MDI-X function
supported standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
LED display: Current (on/off), Link (off/active/data)
Store-and-forward technology for an optimized data transfer
Automatic speed and half/full duplex recognition/setting
Robust, flat metal housing
Excellent protection against short circuits
Lightning and surge protection
Mounting on DIN-rail (DIN rail) and wall mounting possible
fanless design
