Digitus DN-651107 DN-651107 Industrial Ethernet switch 5 ports 10 / 100 / 1000 MBit/s
EAN:
Part number:
Item no:
Number
Total (€ 92.43 / piece)
€
Highlights & Details
Digitus DN-651107 industrial 5-port Gigabit switch
- 5 x 10/100/1000Base-TX Ethernet ports
- Standard / DIN rail Dual mounting
- Extended operating temperature range of -40 °C ~ +85 °C
- Excellent protection from short-circuits
- Compact, robust metal housing
Technical specifications
- Power consumption: 2.76 W.
- MTBF: 500,000 hrs.
- Redundant power supply: 12~56 V DC / 18~36V AC, redundant power supply with polarity reversal protection function
- Extended operating temperature range -40 °C ~ +85 °C.
- Supported standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3ab Gigabit Ethernet
- 5 x 10/100/1000Base-TX Ethernet ports
- Product type
Industrial Ethernet switch
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
- Transfer rate
10 / 100 / 1000 MBit/s
- Working principle
Unmanaged switch
- Ethernet ports
5
- 10/100/1000 Mbps ports
5 x
- Power supply (LOV)
mains-powered (redundant)
mains-powered
via DIN rail PSU
via terminal
- Weight
160 g
- Width
105 mm
- Height
82 mm
- Depth
32 mm
- Type
DN-651107
- Interfaces
Gigabit LAN (1 Gbps)
Gigabit LAN (1 Gbps)
- Factory colour
Black
- Operating voltage
56 V DC
48 V DC
12 V DC
36 V AC
18 V AC
- Max. ambient temperature
85 °C
- Min. ambient temperature
-40 °C
- Port
5 ports
Variants(All information is without VAT, plus shipping costs)
Interfaces
Digitus DN-651107 DN-651107 Industrial Ethernet switch 5 ports 10 / 100 / 1000 MBit/s
This article
Gigabit LAN (1 Gbps)
Minimum order quantity: 1
Multiple: 1
€ 92.43*

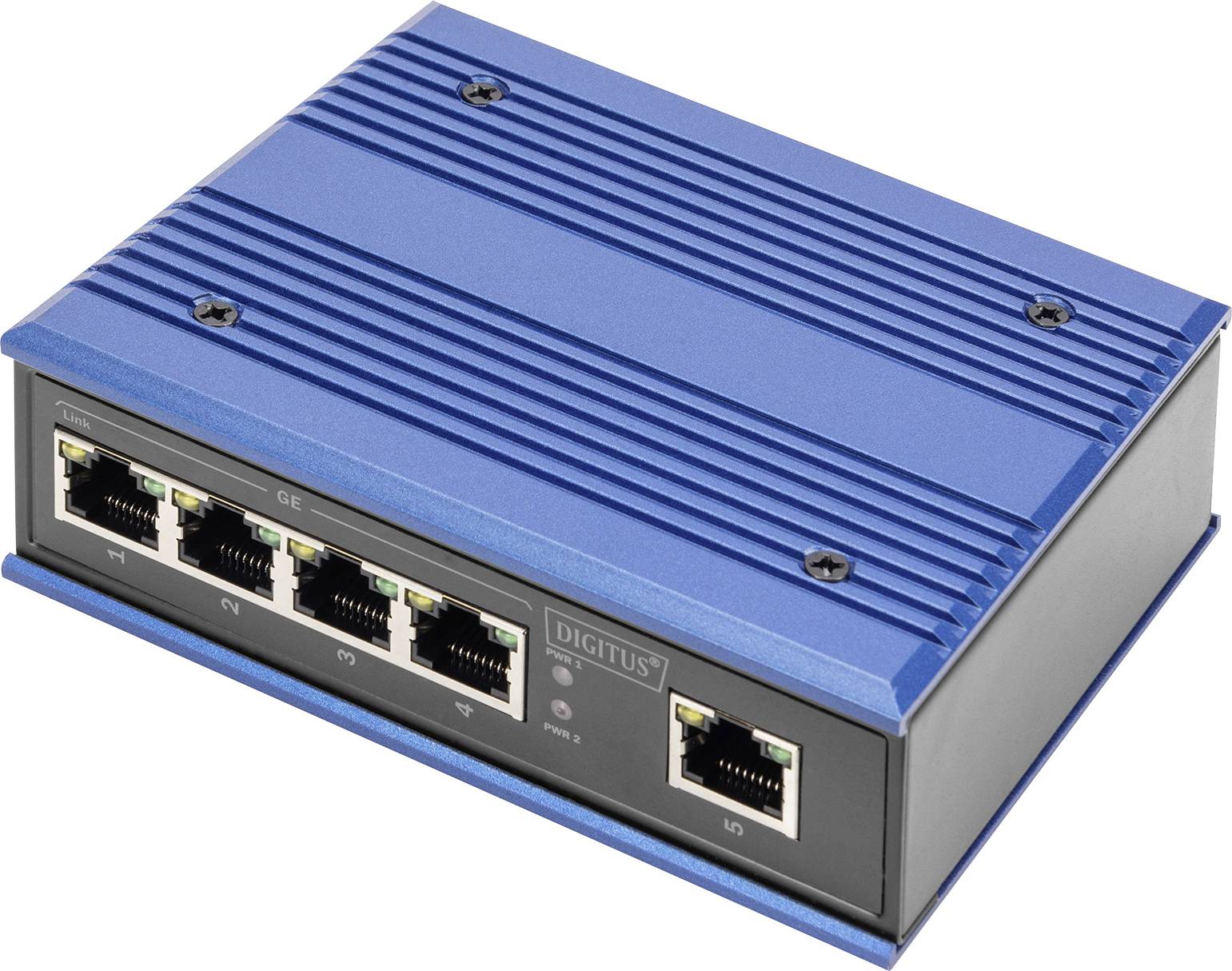

Digitus DN-651118 DN-651118 Industrial Ethernet switch 5 ports 10 / 100 / 1000 MBit/s
Gigabit LAN (1 Gbps)
Minimum order quantity: 1
Multiple: 1
€ 58.82*
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2197268 Digitus DN-651107 DN-651107 Industrial Ethernet switch 5 ports 10 / 100 / 1000 MBit/s
Description
The DIGITUS® Industrial Gigiabit switch is designed for harsh environments where it is exposed to humidity, temperature fluctuations and vibration. With a temperature range of -40°C to 75°C, the Industrial Gigabit Switch can be used under the most unfavorable conditions. Continuous availability is ensured in highly sensitive areas such as transport, production, transport and security monitoring. The simple plug-and-play system allows the Industrial Gigabit Switch to be quickly integrated into the respective environment. Due to the Gigabit connectivity, the Industrial Gigabit Switch thus represents a flexible, cost-effective solution for the industrial environment.
This text is machine translated.
This text is machine translated.
Features
- Automatic cable detection - Auto MDI/MDI-X function
- IEEE802.3x flow control and back pressure
- Store-and-forward technology for optimized data transfer
- Automatic speed and half/full duplex detection/setting
- Backplane with 10Gbps
- Supports up to 8K MAC addresses
- Compact, robust metal housing
- Excellent short circuit protection
- Lightning protection and overvoltage protection
- Removable terminal connection
- En 50155 (EN 60068-2-6) Vibration
- En 50155 (EN 60068-2-27) Shock
- En 50155 (EN 60068-2-32) Free fall
Scope of delivery
- Industrial 5-Port Gigabit Switch
- Quick start guide
