Buy Digitus DN-651119 DN-651119 Industrial Ethernet switch 8 ports 10 / 100 / 1000 MBit/s

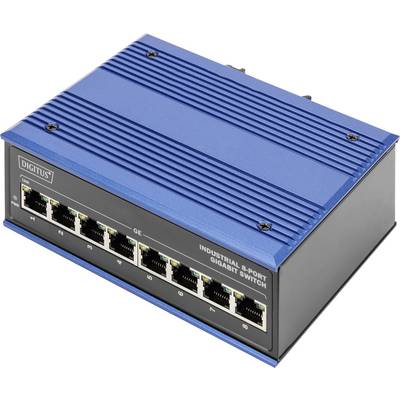

A blue 8-port Gigabit switch with Ethernet ports at the front. Ideal for industrial network applications.

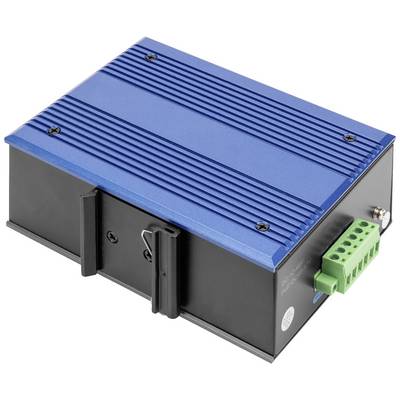

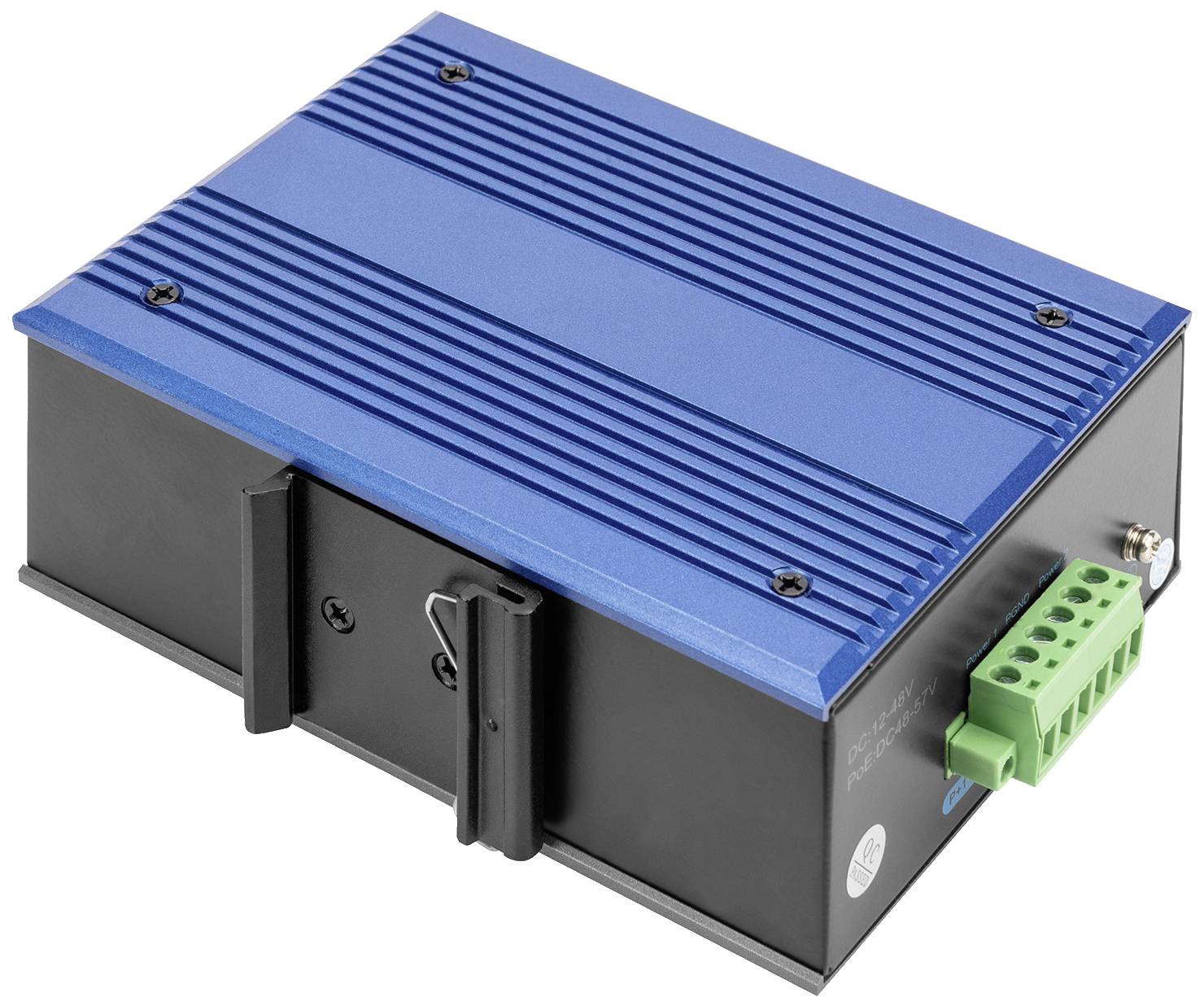

Digitus DN-651119 DN-651119 Industrial Ethernet switch 8 ports 10 / 100 / 1000 MBit/s-1

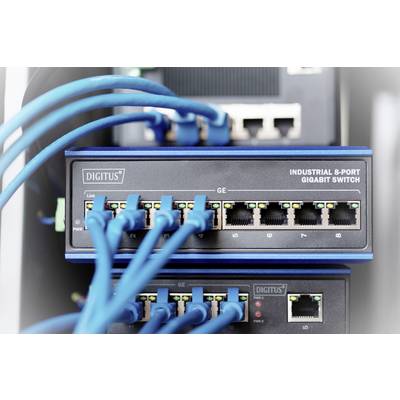

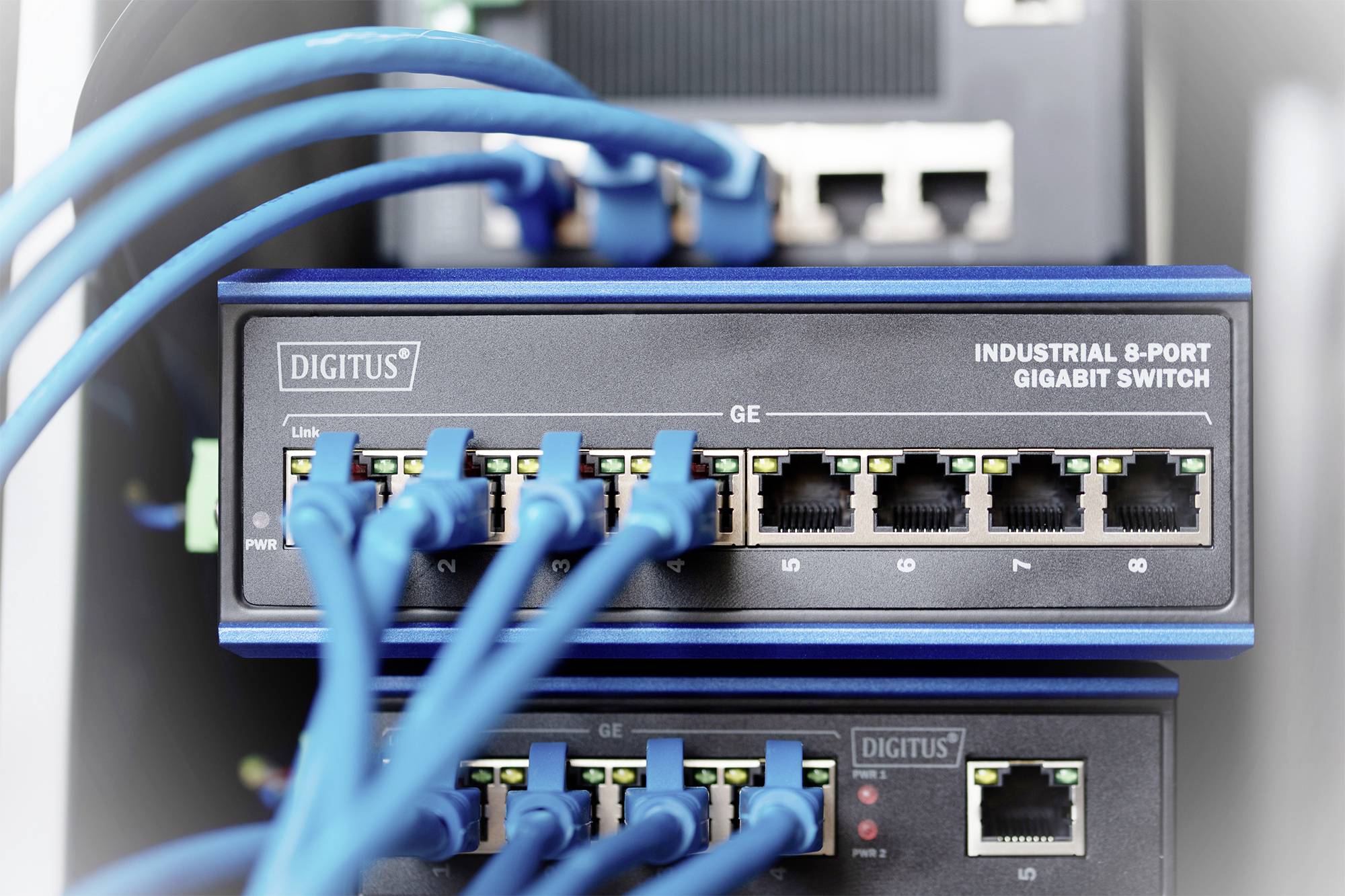

A 'Industrial 8-Port Gigabit Switch' with multiple blue Ethernet cables connected, situated in a server rack.

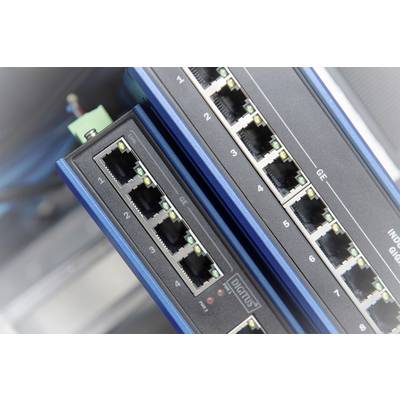

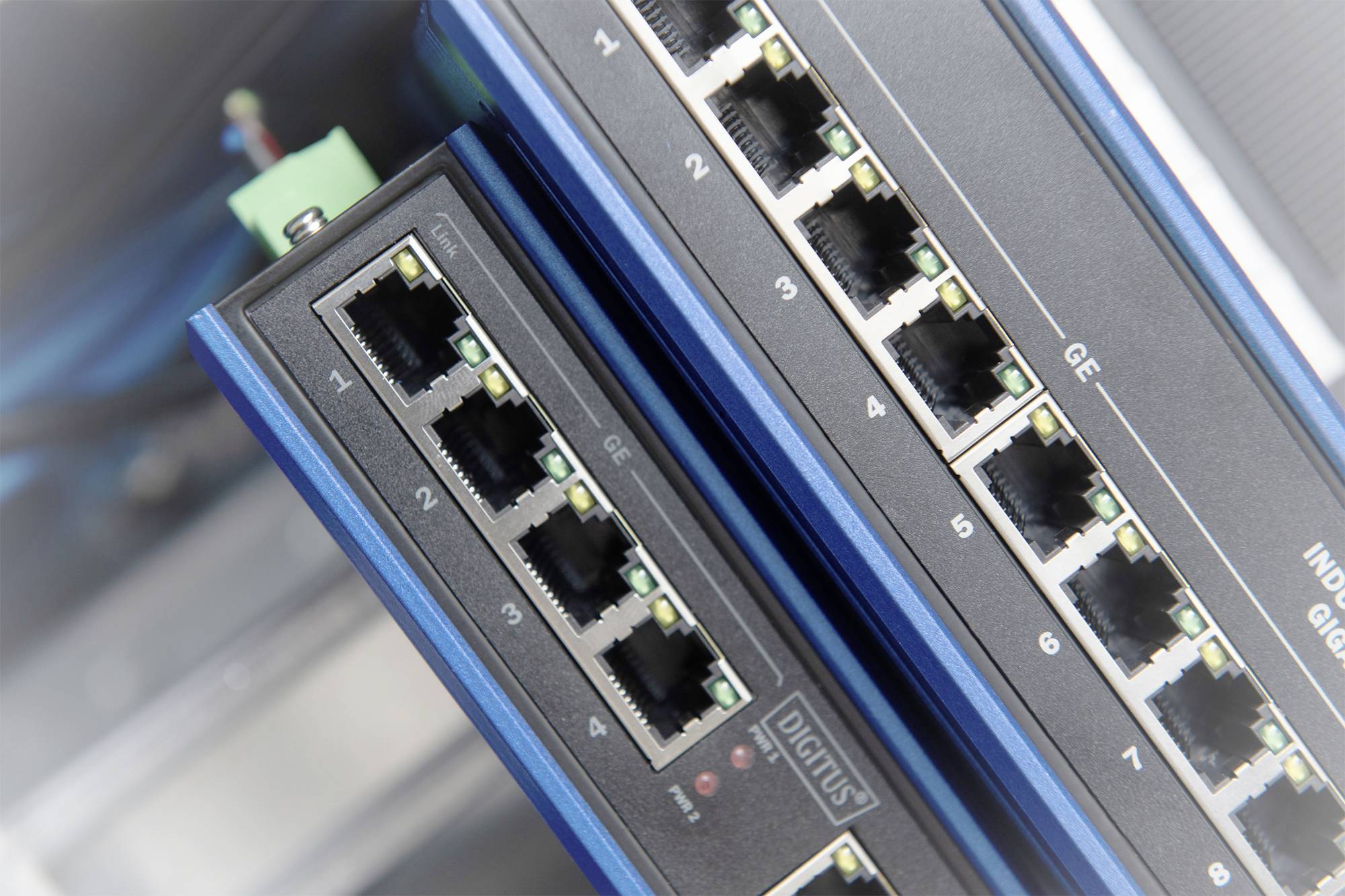

Two network switches with multiple Ethernet ports used for connecting devices in a computer network.

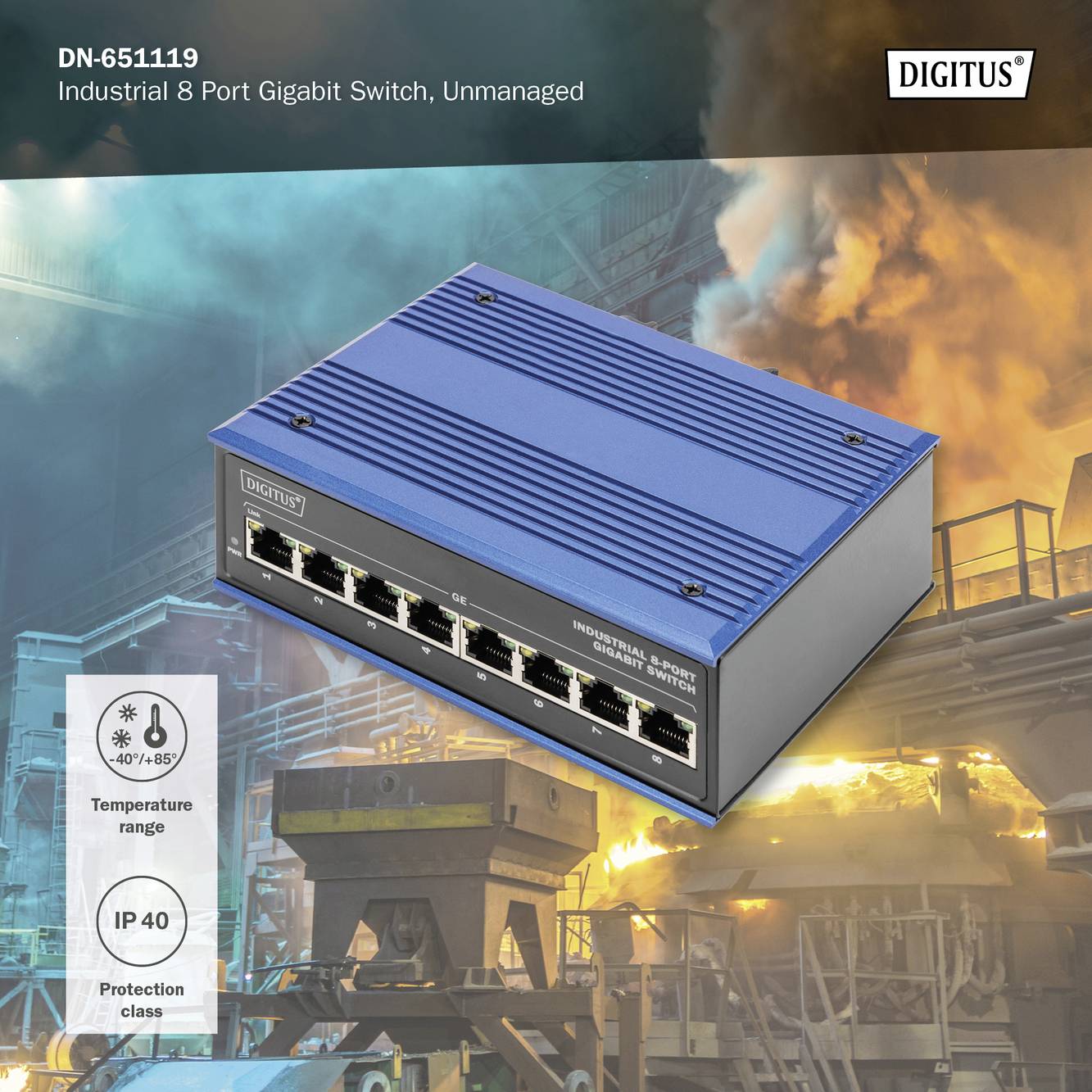

'Industrial 8-Port Gigabit Switch, unmanaged' by Digitus. Robust blue housing, suitable for temperatures from -40°C to +85°C, IP40 protection rating. Background shows industrial environment with smoke.

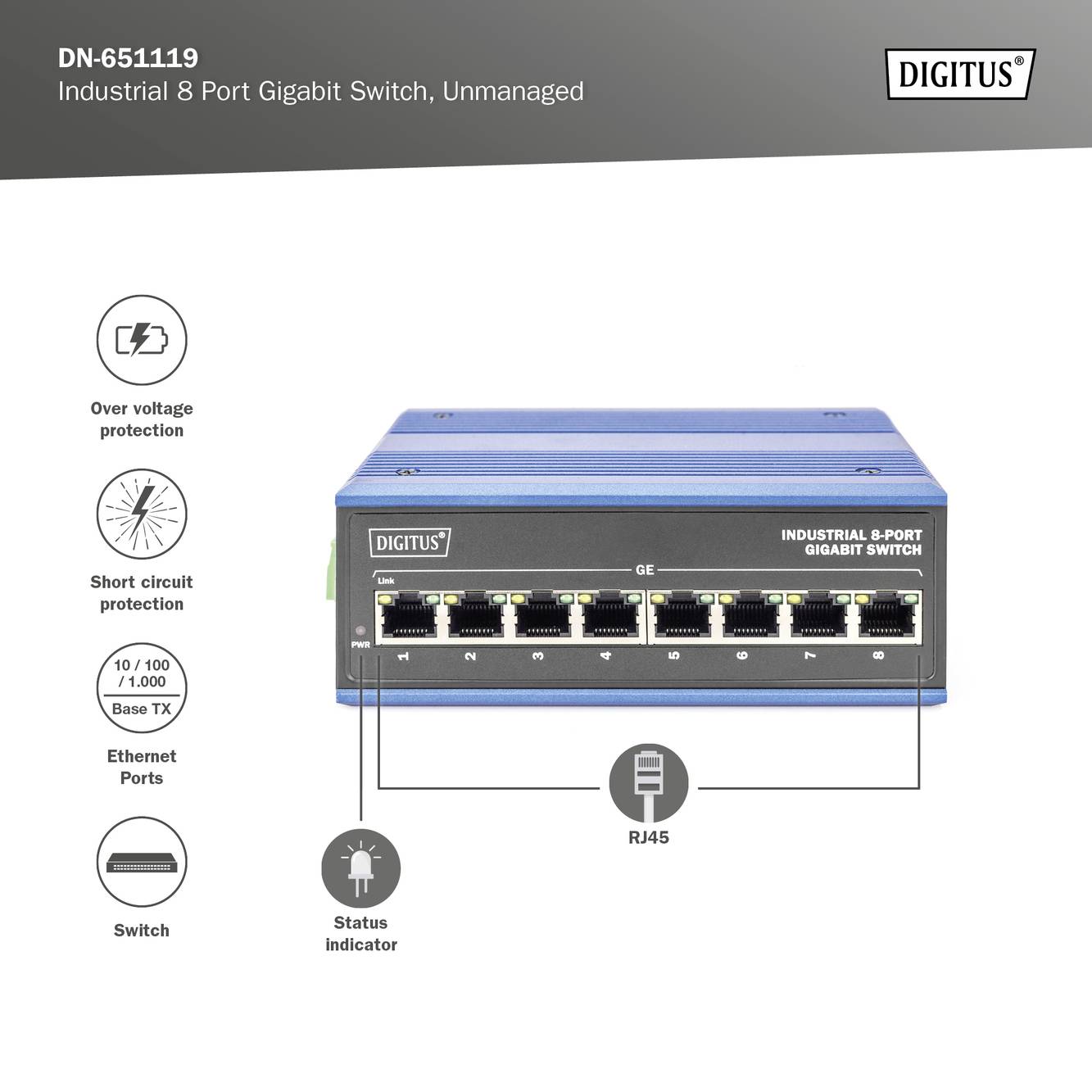

'Industrial 8 Port Gigabit Switch' with eight Ethernet ports and status display. Includes symbols for surge and short-circuit protection.

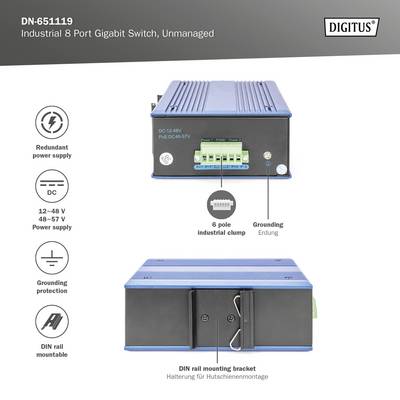

Industrial 8-port Gigabit switch by Digitus, Model DN-651119, unmanaged, supports redundant power supply and DIN rail mounting.

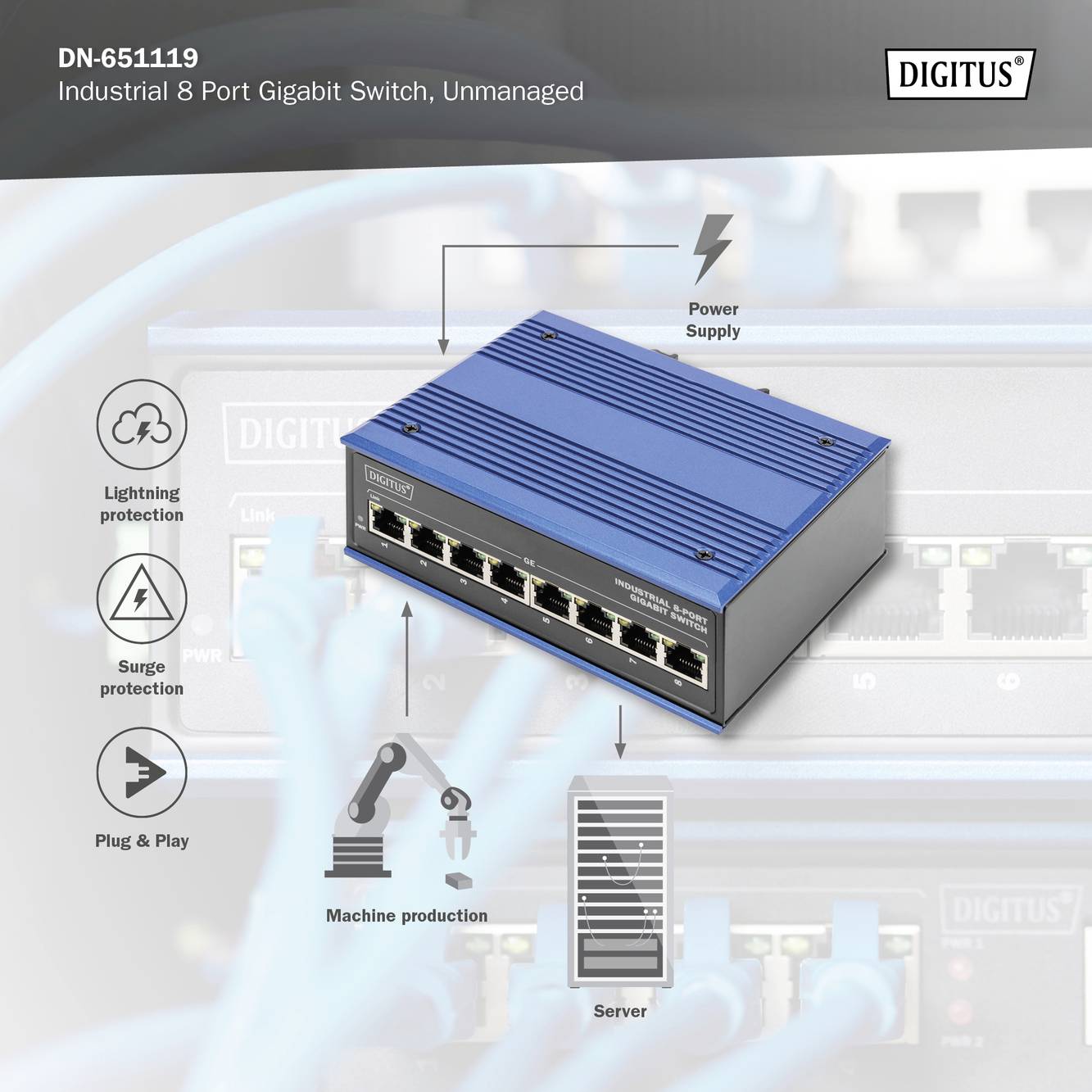

Industrial 8-Port Gigabit Switch. Functions: Lightning protection, surge protection, machine and network cable connection.

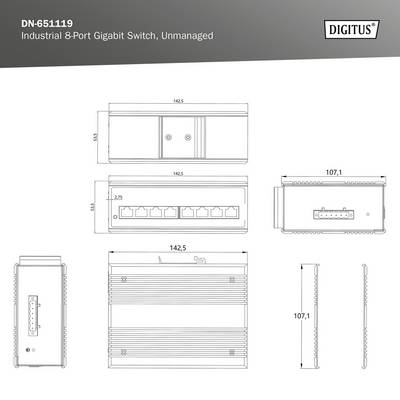

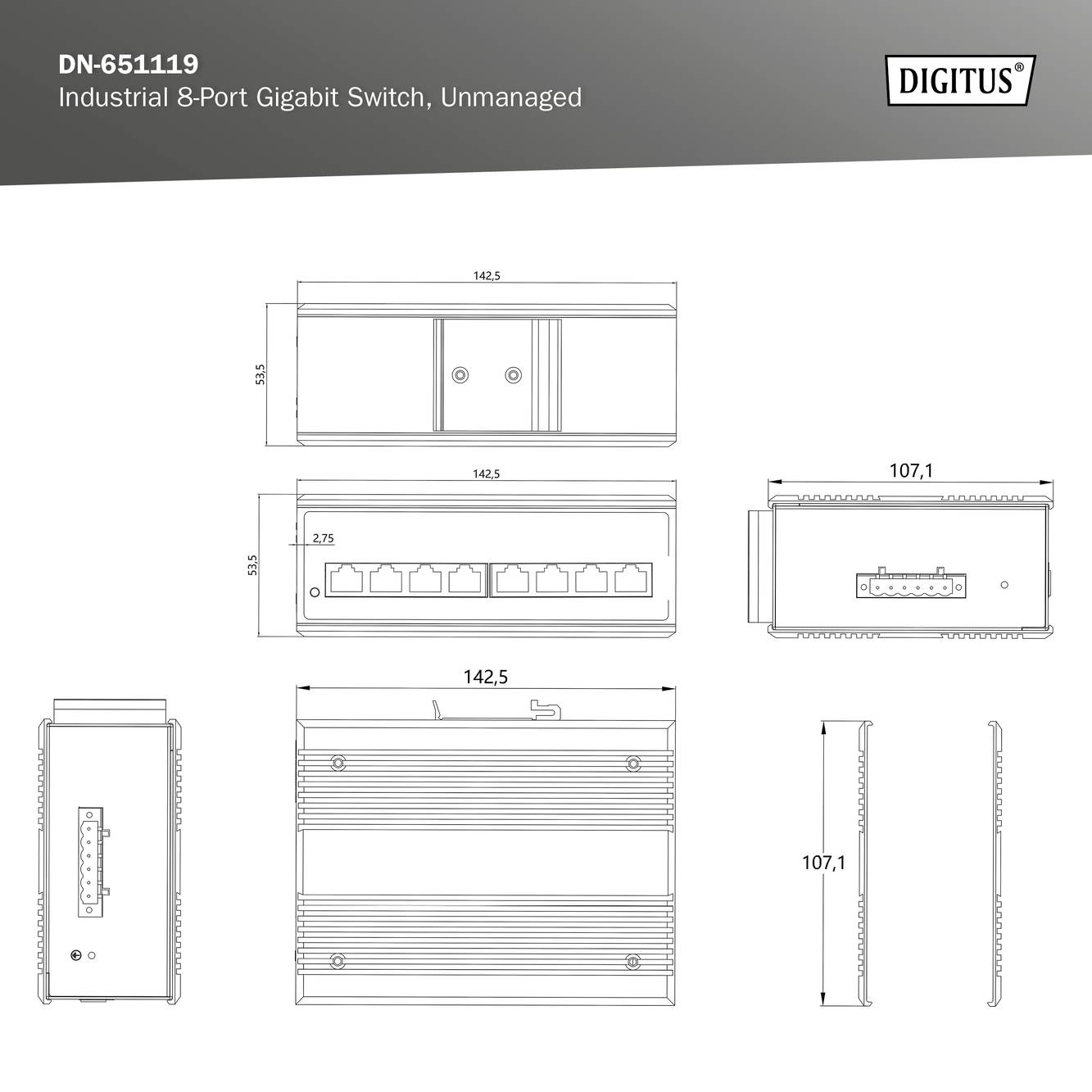

'Technical drawing of an industrial 8-port Gigabit switch, unmanaged, Model DN-651119, with dimensions in millimetres.'

1/9

Datasheet (PDF)

28 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 82.34 / piece)

€

Report legal concerns

Highlights & Details

Industrial 8-Port Gigabit Switch DIN rail, extended temperature range

The Industrial Ethernet switch possesses 8 RJ45 ports with Gigabit Ethernet speed and comes in a robust, compact metal housing, which is held in the colors black & blue
The power supply is designed redundantly and takes place via a terminal connection. In addition, the network switch has a lightning, short-circuit and overvoltage protection
In addition to DIN rail mounting on standardized DIN rails in switch boxes or control cabinets, the industrial switch can also be mounted directly on the wall

Technical specifications

Redundant power supply: 12~48 V DC, redundant power supply with polarity reversal protection function
Extended operating temperature range -40 °C ~ +85 °C.
Removable terminal connection
Protection class: IP40
Ethernet speed: Gigabit
Number of ports: 8
Mounting type: DIN rail, wall

Product type: Industrial Ethernet switch

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s

Transfer rate: 10 / 100 / 1000 MBit/s

Working principle: Unmanaged switch

Ethernet ports: 8

10/100/1000 Mbps ports: 8 x

Port type: RJ45

Auto-uplink at each port: Yes

Jumbo frames: No

Power supply (LOV): mains-powered
mains-powered (redundant)
via terminal
via DC in
via DIN rail PSU

Weight: 710 g

Width: 143 mm

Height: 44 mm

Depth: 104 mm

Type: DN-651119

Interfaces: RJ45

: IP40

Factory colour: Blue
Blue-purple
Blue-black
Blue
Cobalt blue
Black

Operating voltage: 48 V DC

Max. ambient temperature: 85 °C

Min. ambient temperature: -40 °C

Port: 8 ports

Documents & Downloads

Datasheet

Datasheet 2275124 Digitus DN-651119 DN-651119 Industrial Ethernet switch 8 ports 10 / 100 / 1000 MBit/s

User & Safety Instructions

User & Safety Instructions 2275124 Digitus DN-651119 DN-651119 Industrial Ethernet switch 8 ports 10 / 100 / 1000 MBit/s

Description

Digitus DIGITUS® Industrial Gigabit Switch is designed for harsh environments where it is exposed to humidity, temperature fluctuations and vibration. With a temperature range of -40°C to 85°C, the Industrial Gigabit Switch can be used under the most unfavorable conditions. Continuous availability is ensured in highly sensitive areas such as transport, production, transport and security monitoring. The simple plug-and-play system allows the Industrial Gigabit Switch to be quickly integrated into the respective environment. Due to the Gigabit connectivity, the Industrial Gigabit Switch thus represents a flexible, cost-effective solution for the industrial environment.

This text is machine translated.

Features

Thanks to IP40, the gigabit switch is protected against foreign bodies (1 mm) - the extended temperature range is -40 to 85 °C - rained for non-condensing humidity of 5 to 95%
The LAN-Switch possesses Store-and-Forward technology, automatic cable detection (Auto-MDI-/ MDI-X) & Half-/Full-Duplex recognition - Standards: IEEE802.3u, IEEE802.3ab, IEEE802.3x
8 x 10/100/1000Base-TX Ethernet ports
Automatic cable detection - Auto MDI/MDI-X function
Supported standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE802.3ab 1000BaseTX
IEEE802.3x flow control and back pressure
Store-and-forward technology for optimized data transfer
Automatic speed and half/full duplex detection/setting
16 Gbps backplane
MAC address memory 4K
Compact, robust metal housing
Excellent short circuit protection
Lightning protection and overvoltage protection
DIN rail (DIN rail) and wall mounting possible
