Digitus DN-93903 Connection Box Compatible with: CAT 6
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.61
5
5% = € 0.19
€ 3.42
10
7% = € 0.27
€ 3.34
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.61 / piece)
€ 7.55
-52 %
€ 3.61
plus VAT.

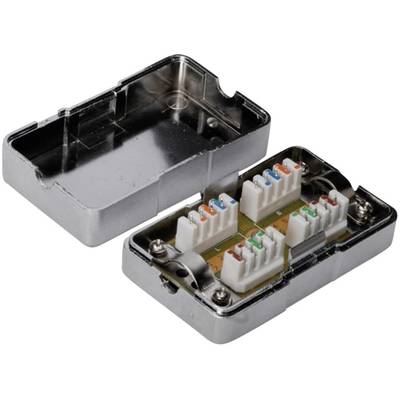

DIGITUS® CAT 6 Connection module for Twisted Pair Cables
Highlights & Details
- Best performance and link quality for your network.
Technical specifications
- Product type
Connection Box
- Compatible with
CAT 6
- Factory colour
Silver
- Port
2 ports
- UKCA
yes
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 1165398 Digitus DN-93903 Connection Box Compatible with: CAT 6
User & Safety Instructions
User & Safety Instructions 1165398 Digitus DN-93903 Connection Box Compatible with: CAT 6
Description
The DIGITUS® Connection module is for the purpose of connecting or extention of Twisted Pair Cables.
· Transmission properties: Category 6
· Area of application: Up to 250 MHz, 1GBase-T
· Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C
· General properties:
· Suitable for installation in trunking, surface and flush mount
· Cable installation via LSA stripes, color-coded as per EIA/TIA 568 A & B
· Suitable for connection of installation cables - extension of cables, replacing of defect cable links
· Integrated strain relief for installation cables
· Suitable for cables with AWG 22-26 diameter
· Technical properties:
· Housing material: ABS UL-94V-0
· RJ45 female material: ABS UL 94V-0
· RJ45 female contact: Tinned phosphor bronze, 0.5 ? gold-plated contact
· RJ45 shielding: Tinned bronze
· LSA termination clamp: Krone LSA+, UL 94V-0, zinc plated phosphor bronze
· Conductor plate: FR4, UL 94V-0
· Physical properties:
· Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
· IDC wire size: 22 – 26 AWG solid and stranded conductor
· Insulation resistance: > 500 MOhm
· Contact resistance: < 20 MilliOhm
· Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
· Transmission properties: Category 6
· Area of application: Up to 250 MHz, 1GBase-T
· Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C
· General properties:
· Suitable for installation in trunking, surface and flush mount
· Cable installation via LSA stripes, color-coded as per EIA/TIA 568 A & B
· Suitable for connection of installation cables - extension of cables, replacing of defect cable links
· Integrated strain relief for installation cables
· Suitable for cables with AWG 22-26 diameter
· Technical properties:
· Housing material: ABS UL-94V-0
· RJ45 female material: ABS UL 94V-0
· RJ45 female contact: Tinned phosphor bronze, 0.5 ? gold-plated contact
· RJ45 shielding: Tinned bronze
· LSA termination clamp: Krone LSA+, UL 94V-0, zinc plated phosphor bronze
· Conductor plate: FR4, UL 94V-0
· Physical properties:
· Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
· IDC wire size: 22 – 26 AWG solid and stranded conductor
· Insulation resistance: > 500 MOhm
· Contact resistance: < 20 MilliOhm
· Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Features
- Integrated strain relief
- LSA EIA/TIA 568 A & B
- Cable entry: up to 6,8mm
- Cu wire diameter: AWG (26/1... 22/1)
- Operating temperature: -40°C ... +80°C
- Current carrying capacity: 1 A at 50°C
- Material LSA Phosphorous-bronze with 50 µ-plating over 60 µ Ni-Beschichtung
- Material pcb: FR4, 1.2 mm thickness
- It can be used with 110 and crown LSA lay out tools
