Name: Digitus DN-95331 DN-95331 Network RJ45 switch 1000 MBit/s
Brand: Digitus
SKU: 2274997

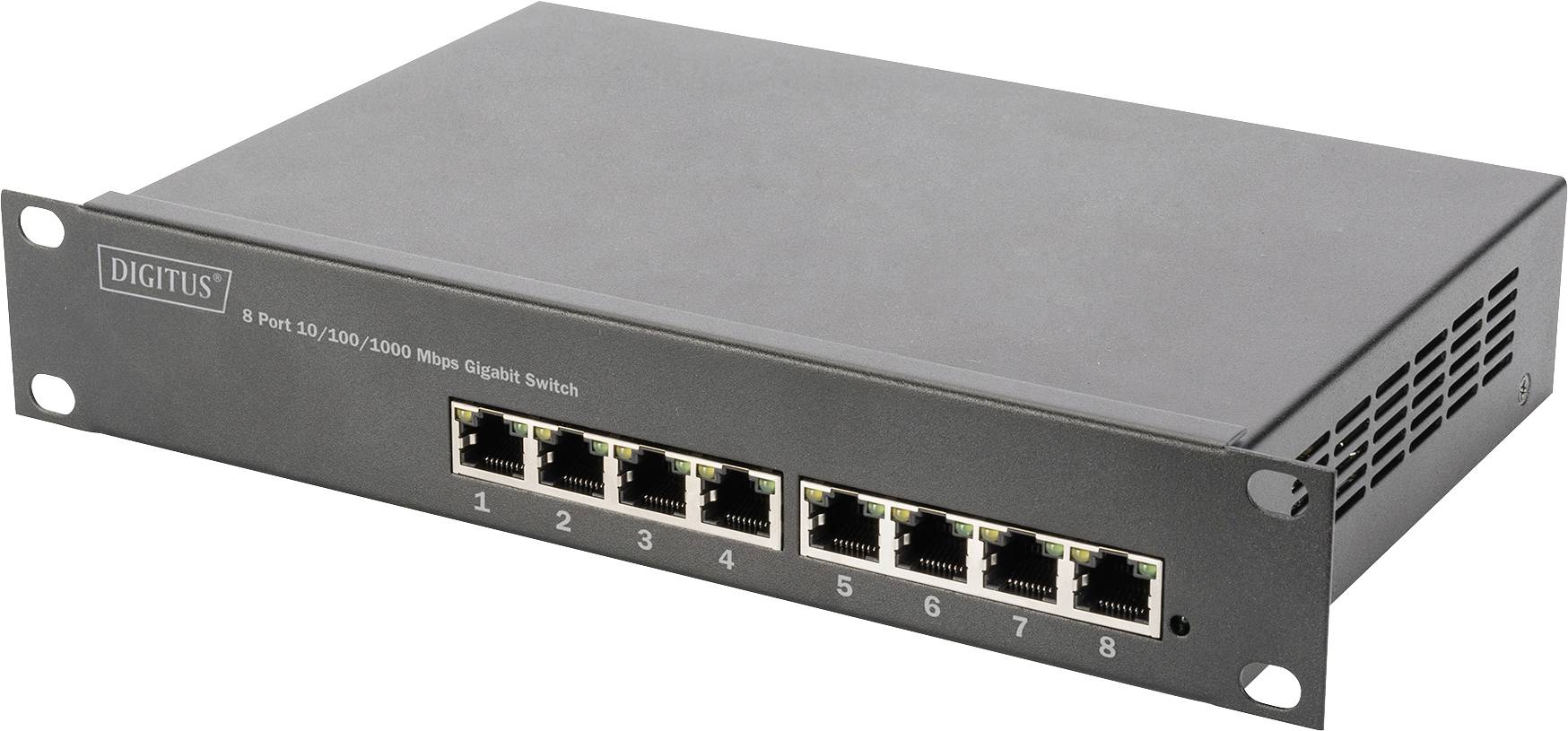

An 8-port Gigabit Ethernet switch, suitable for network connections in IT environments, with numbered ports for easy identification.

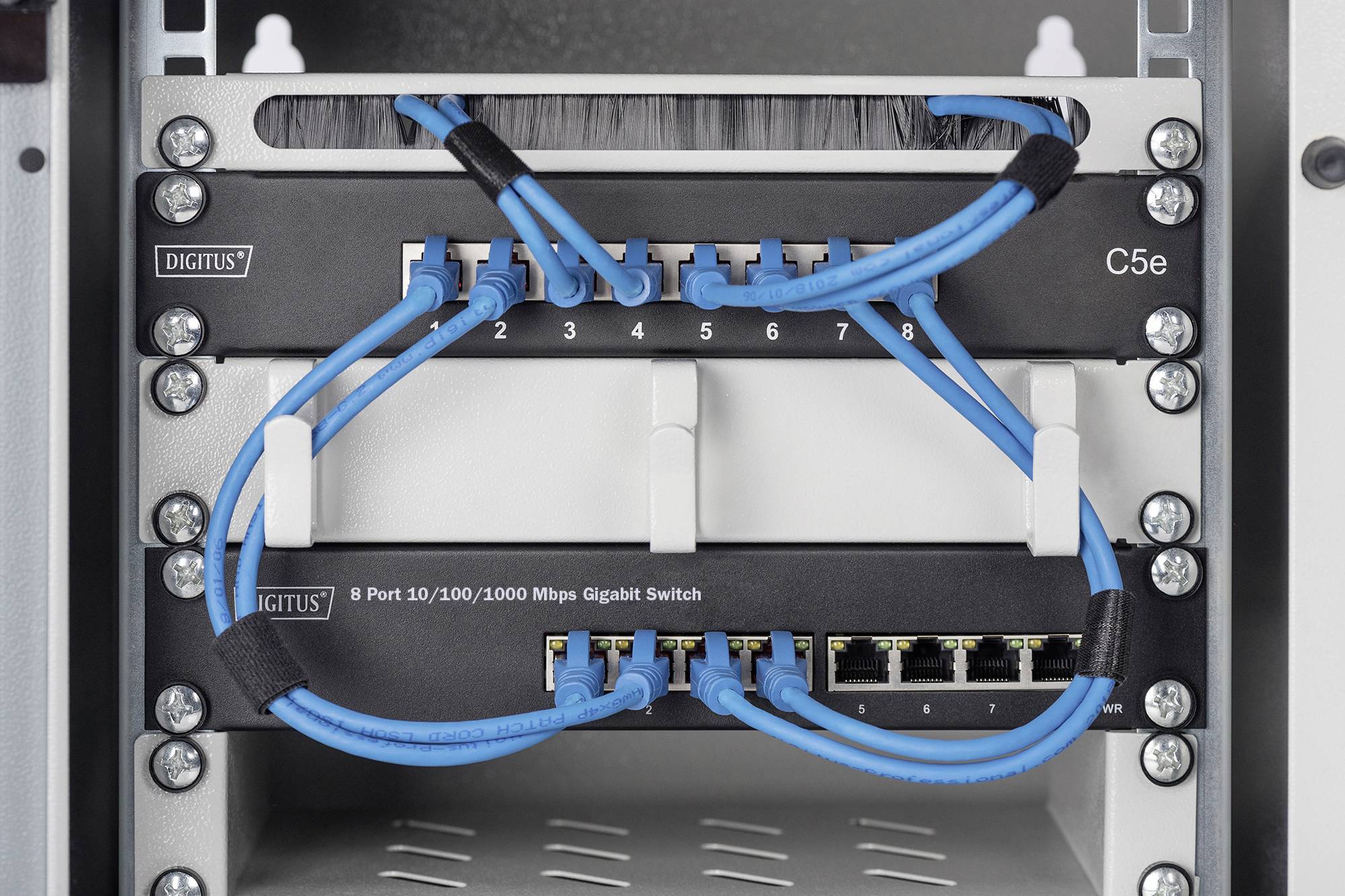

Network switch in the cabinet shows eight connected blue Ethernet cables. Label reads '8 Port 10/100/1000 Mbps Gigabit Switch'.

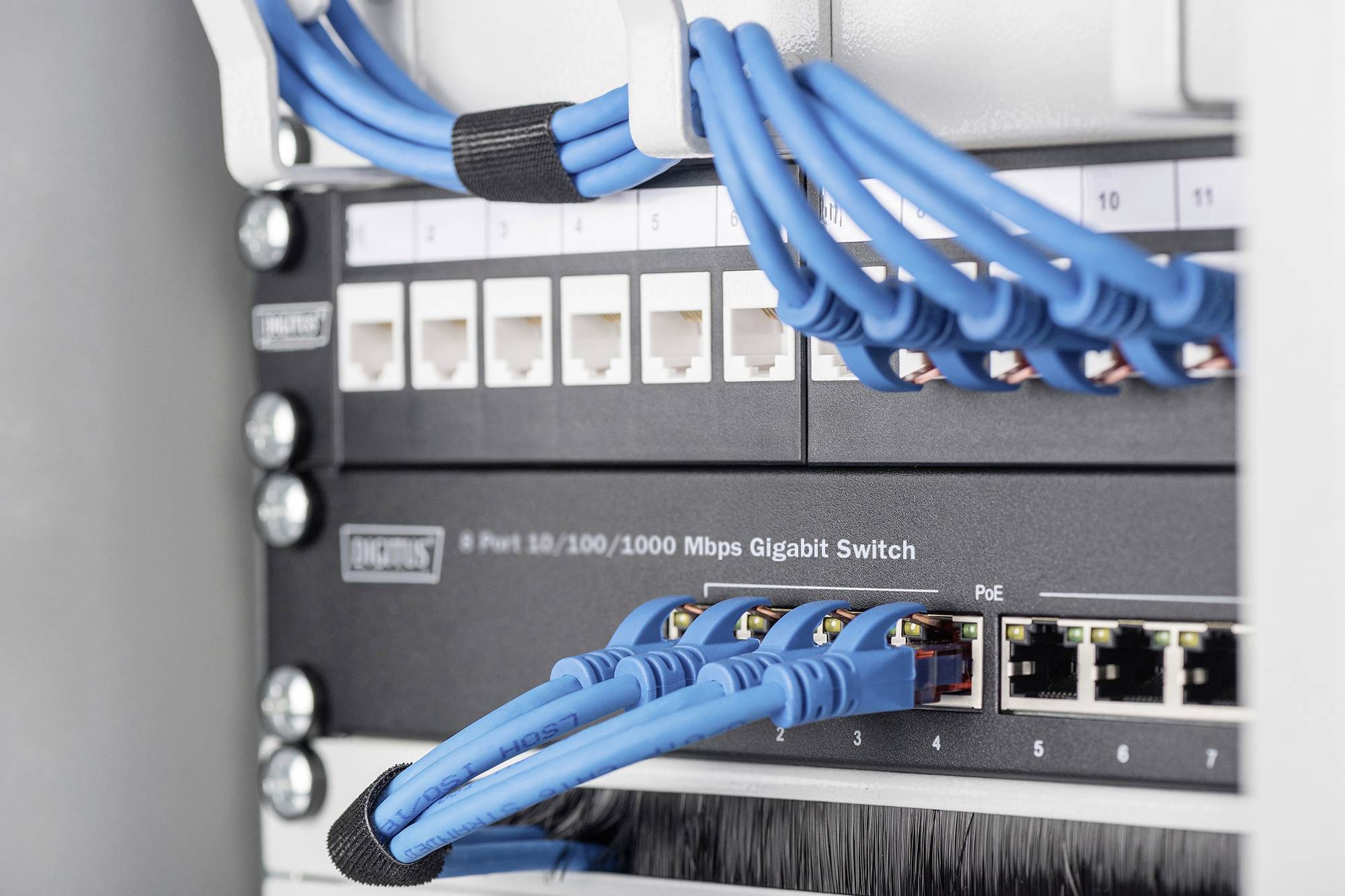

Close-up of a network switch connected with blue Ethernet cables. Ports are numbered, with switch capacity up to 1000 Mbps.

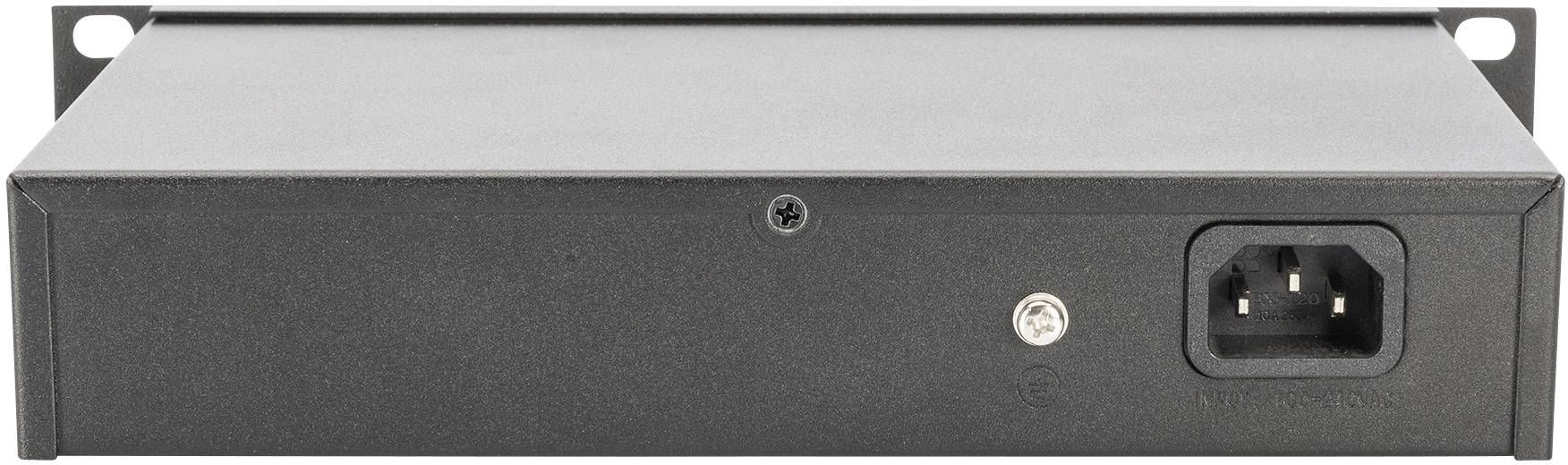

A black, rectangular electrical device with multiple ports on the back, including a cold device connection.

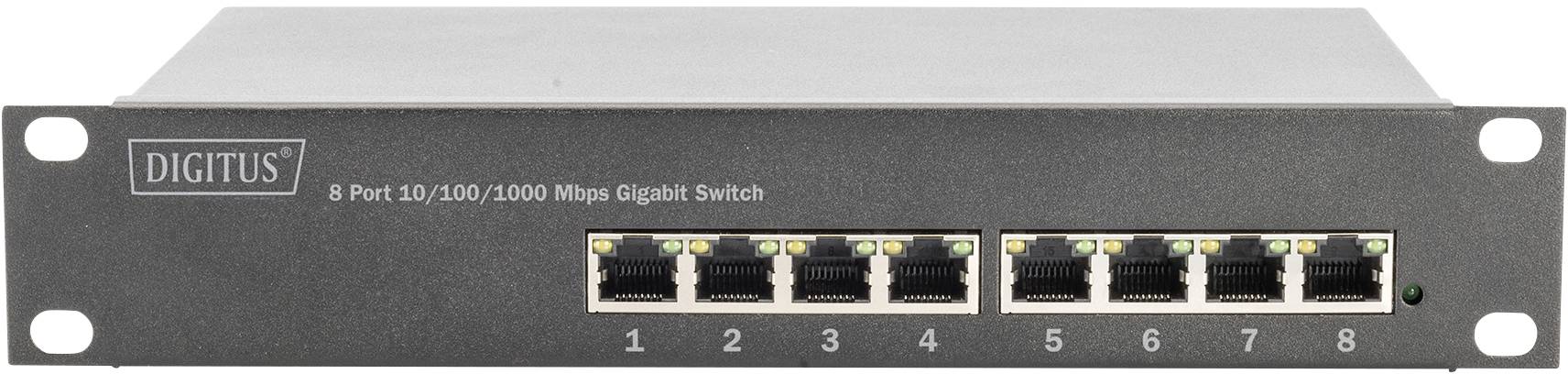

An 8-port Gigabit switch with Ethernet ports, suitable for data transfers of 10/100/1000 Mbps, model by Digitus.

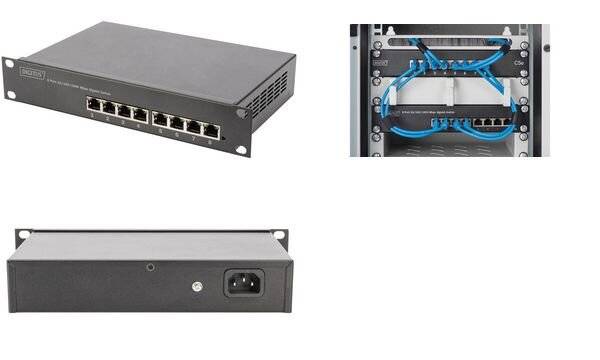

Digitus DN-95331 DN-95331 Network RJ45 switch 1000 MBit/s-5

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

L2 managed Gigabit Ethernet PoE Switch 8-port PoE, 10-inch, 80W PoE budget

Despite its compact dimensions for 10" racks, the managed L2+ PoE switch fulfills the highest network requirements for professional applications, e.g. in small and medium-sized enterprises
Features such as port control, port mirroring, VLAN, and multicast support include Map and administer convergence applications on medium-sized networks with the switch
Thanks to a power budget of 80 watts (max. 30 watts per port), access points, IP telephones or IP cameras can be integrated into the existing network without additional power supply

Technical specifications

No. of PoE ports: 8 x 10/100/1000Base-TX RJ45
Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x Full Duplex Flow Control, IEEE802.3ab Link aggregation
PoE standards: IEEE802.3af, IEEE802.3at
Forwarding rate: 10/100/1000Mbps
LED displays: power, Link/Act
Backplane bandwidth: 16G
Forwarding capacity: 11.9 Mpps
Jumbo frame size: 16K
MAC addresses: 8K
Packet buffer memory: 4.1 Mbit
RAM for CPU: 1 Gbit / Flash memory: 128 Mbit
Total PoE budget: 80 watt power 802.3at (PoE+ support)
PoE budget per port: 30 watts max.
PoE voltage 52 V
PoE pin assignment: V- (RJ45 Pin1, 2), V+ (RJ45 pin 3.6) mode A, end span
PoE management: PoE status and control, PoE Schedule, PD Alive Auto Check
Port features: Port control, port isolation, port loop detection
Port mirroring: Multi to 1 sniffer
VLAN: Port-based & 802.1q tag-based VLANs
Link Aggregation: 8 groups
Rate limit: 64kbps
Spanning Tree: Supports STP, RSTP, MSTP
Ring Protocol: Supports EAPS
Multicast: Supports 256 multicast groups & IGMP snooping for multimedia applications
Supports Static ARP & Static Routing, up to 32 VLAN interfaces
QoS: 4 queues per port, scheduling algorithm: WRR, SP, WFQ, port-based, MAC-based, 802.1p, DSCP classification
ACL: Standard IP, Extend IP, MAC IP, ARP, 512 entries
Security: MAC-based authentication, AAA/RADIUS authentication, WEB/Telnet password protection, Accessing privilege mode password protection
Supports SMNP
Supports ICMPv6, IPv6 Neighbor Discovery, MLD Snooping, IPv6 Telnet
Management interfaces: WEB, SNMP, SSH, CLI, Telnet, TACACS+, RMON
L3-VLAN interface: 32
Operating voltage 100 - 240 V AC, 50/60 Hz, integrated power supply (IEC C13 connector)
Total power consumption 96 W max.
Operating temperature: 0 °C ~ 40°C
Storage temperature -10°C ~ 70°C.
Operating humidity: 5% ~ 95% (non-condensing)
Housing: Metal (with protective conductor connection)
Dimensions: W 250 mm x D 150 mm x H 44 mm
Weight: 1,140 kg (without packaging)
Ethernet speed: Gigabit
Number of ports: 8
PoE (power over Ethernet): true
Managed: true
Mounting type: 10 inch, desktop
VLAN: true
PoE power budget 80W
PoE standard IEEE802.3at (PoE+)

Product type: Network RJ45 switch

LAN transfer rate: 1000 MBit/s

Transfer rate: 1000 MBit/s

Working principle: Managed switch

Ethernet ports: 8

IEEE 802.3af PoE: 8

PoE ports: 8

10/100/1000 Mbps ports: 8 x

Jumbo frames: Yes

Weight: 1450.00

Width: 250 mm

Height: 44 mm

Depth: 150 mm

Type: DN-95331

Rack size: 254 mm (10")

Interfaces: RJ45

Factory colour: Multicolour

Max. ambient temperature: 40 °C

Min. ambient temperature: 0 °C

LAN data transfer rate: 10 / 100 / 1000 MBit/s

PoE: IEEE 802.3af (12.95 W)
IEEE 802.3at (25.5 W)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2274997 Digitus DN-95331 DN-95331 Network RJ45 switch 1000 MBit/s

User & Safety Instructions

User & Safety Instructions 2274997 Digitus DN-95331 DN-95331 Network RJ45 switch 1000 MBit/s

Description

The 8-port Gigabit PoE switch is designed for networks of small to medium-sized enterprises. With special functions such as port control, port mirroring, VLAN functions and multicast support, the switch is optimally tailored to the needs of convergence applications of medium networks. Based on ASIC integration technology, non-blocking Gigabit IP switching solutions are supported. The switch can be used both as a desktop switch and for installation in 10-inch enclosures. Integrated are 8 Gigabit ports with PoE+ support and a total power of 80 watt power, with which you can operate devices such as wireless access points, IP cameras or VoIP telephones. The switch can be configured individually via different interfaces. The overall height is 1HE.

This text is machine translated.

Features

In addition to a separate web interface, the protocols SNMP, SSH, CLI, Telnet, TACACS+ and RMON are available for administration of the LAN switch (including security functions such as password protection)
Supported standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x Full Duplex Flow Control, IEEE802.3ab Link Aggregation - PoE standards: IEEE802.3af, IEEE802.3at

Scope of delivery

10" 8-port Gigabit Ethernet PoE+ Switch, L2+ managed
Mains connection cable with cold device coupling (IEC C13)
QIG
