Name: Digitus DN-PWR-SST-1512 Rail mounted PSU (DIN) 12 V DC 1.25 A 15 W No. of outputs:1 x Content 1 pc(s)
Brand: Digitus
SKU: 3791049
Availability: InStock

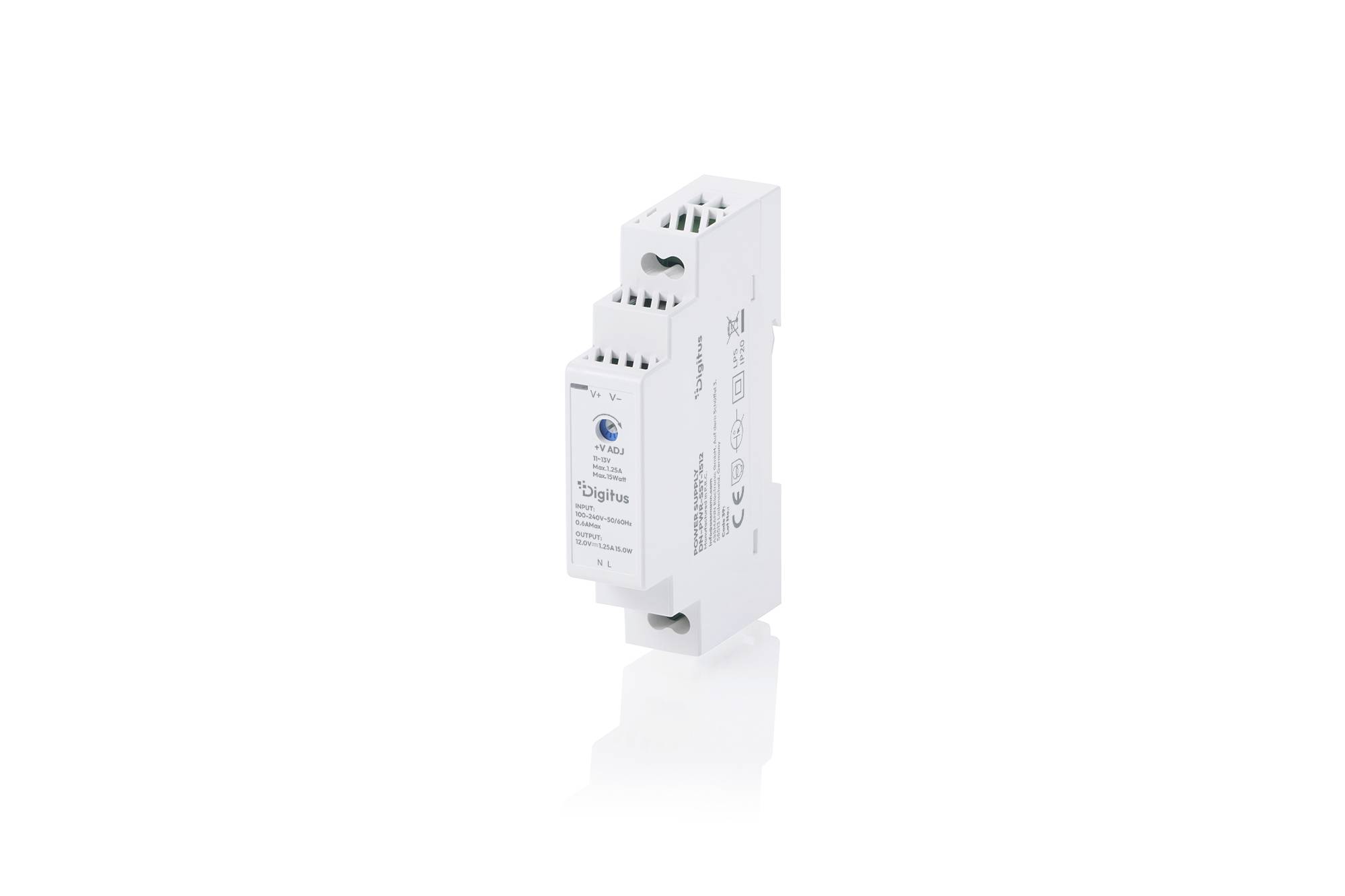

White DIN-rail electrical module shown on a plain white background, with front label and ventilation slots visible.

Digitus industrial power supply unit labeled 12 VDC, 1.25A, 15 W, with icons for wide input voltage range, short-circuit, overvoltage, and free-air convection.

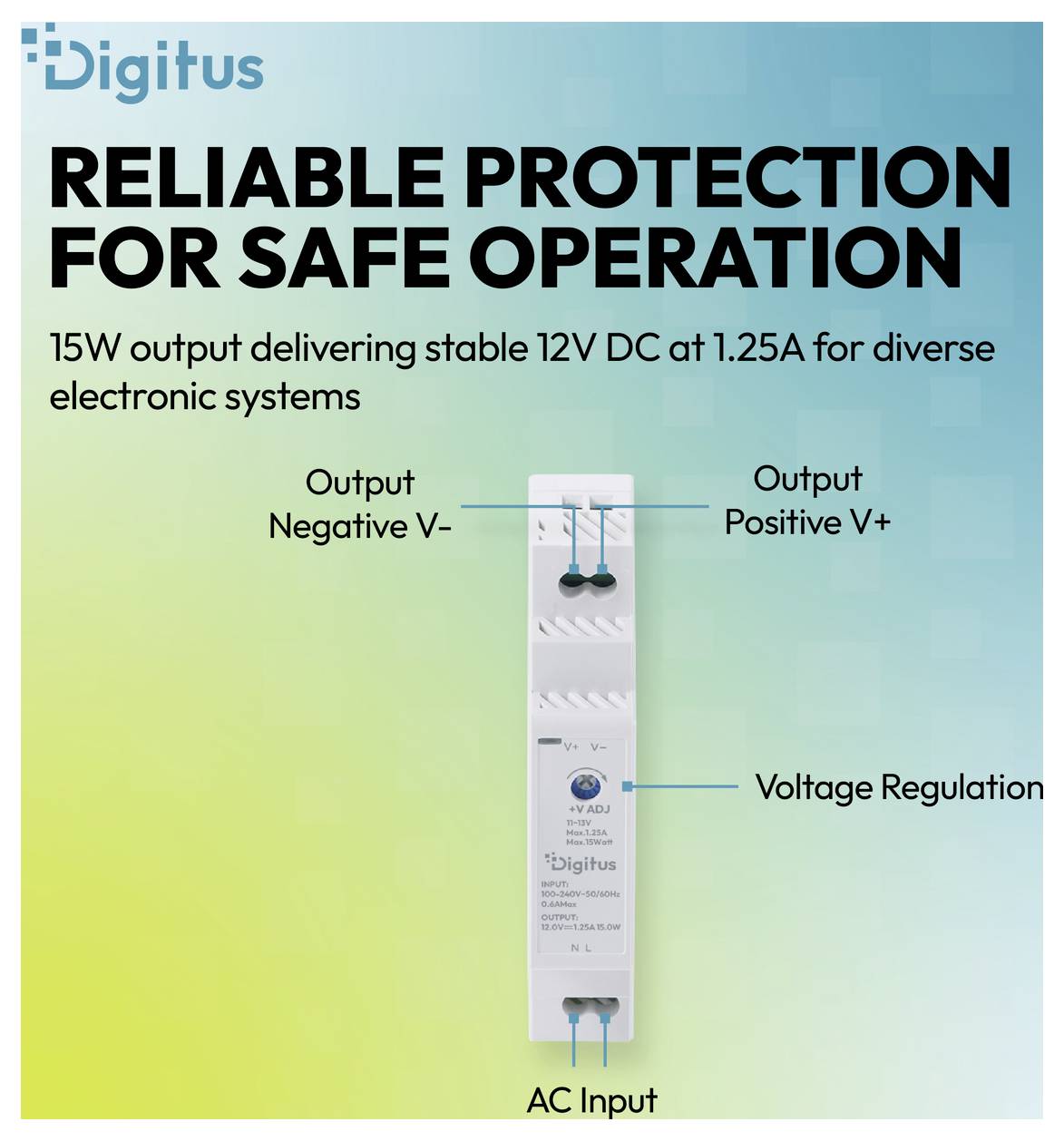

Digitus power supply ad with headline 'RELIABLE PROTECTION FOR SAFE OPERATION,' showing a 15W unit outputting stable 12V DC at 1.25A, with AC input, positive/negative output, and voltage regulation labels.

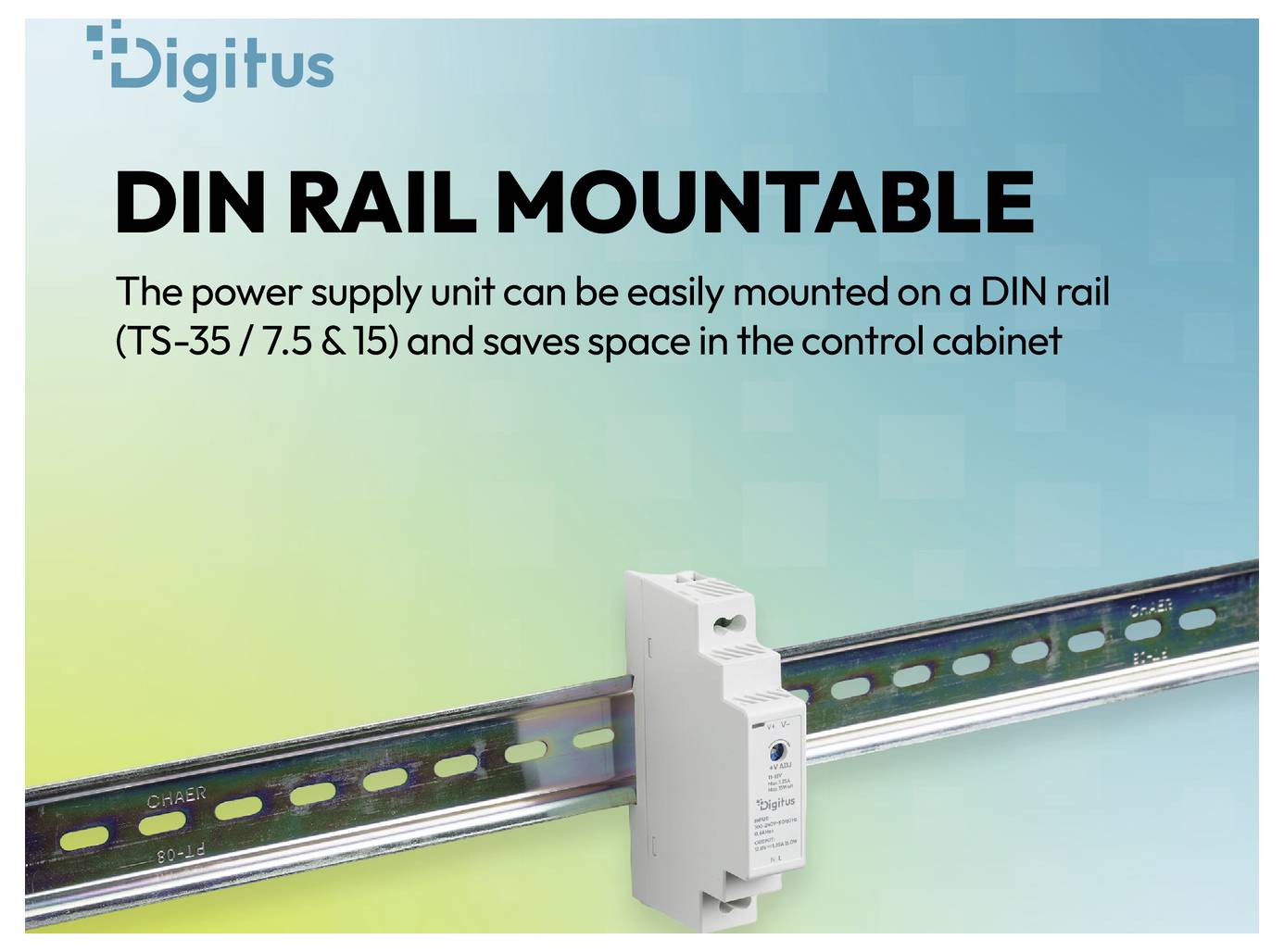

Digitus ad showing a DIN rail mountable power supply unit; text says it mounts on TS-35/7.5/15 DIN rails and saves space in the control cabinet.

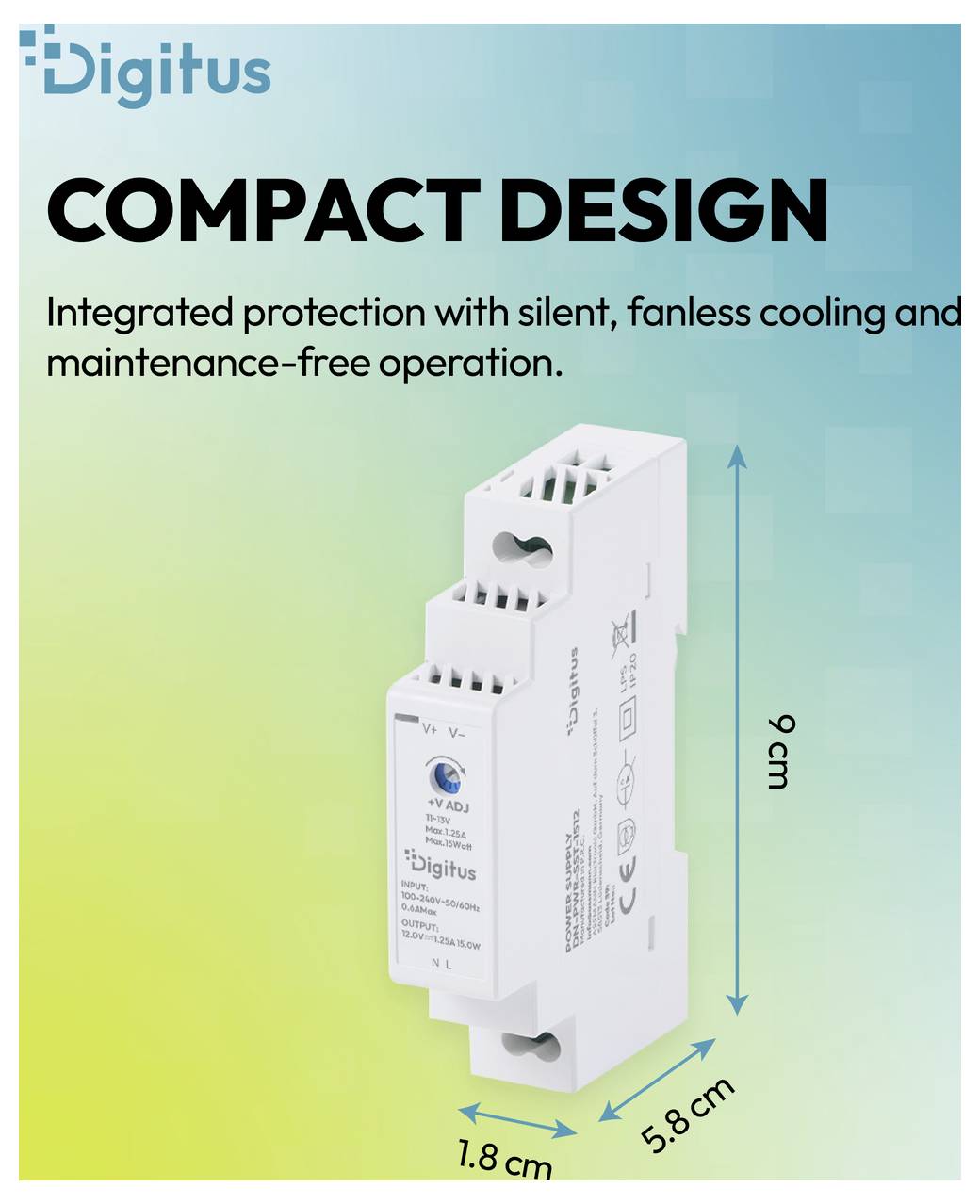

Digitus compact design module shown with dimensions 9 cm tall, 5.8 cm deep, and 1.8 cm wide; text highlights silent, fanless, maintenance-free protection.

DIN rail with a white Schneider Electric electrical module clipped onto it, shown against a plain light background.

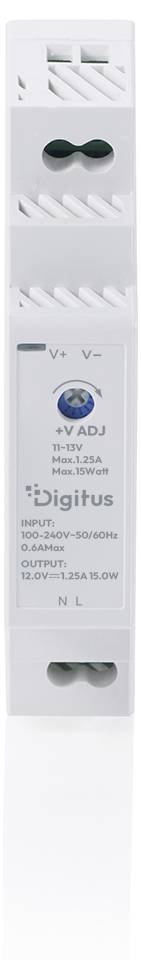

Close-up of a white DIN-rail power supply labeled 'Digitus', with terminals and LED indicator visible.

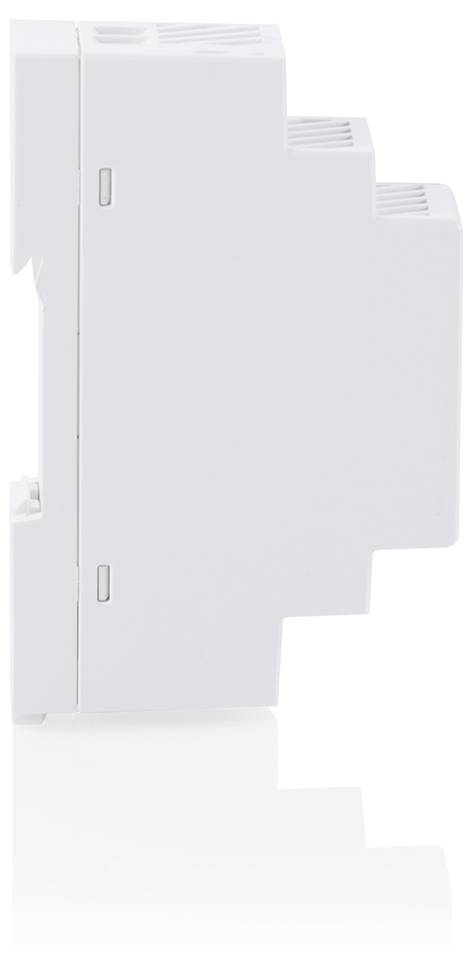

White rectangular plastic electrical device or module shown in side view on a plain background.

White plastic garment clip with a spring-loaded clasp, shown vertically against a plain background.

1/9

Fast track dispatch on Fri 16 Oct

9 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 13.99 / piece)

€ 13.99

incl. VAT

Only 9 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Digitus 12V / 1.25A / 15W step-shape DIN-rail power supply (ultra-slim, class II)

Extremely slim 18 mm step shape housing – Ideal for narrow distribution cabinets.
12 V / 1.25 A / 15 W stable DC power supply - for industrial and building technology.
High efficiency of 85 % – optimized for continuous operation.
Wide-range input 90–264 V AC / 127–370 V DC – can be used globally
Adjustable output voltage 10.8–13.8 V for flexible applications.
Comprehensive protection: Short circuit, overload and overvoltage protection.
DIN-Rail mount (TH35) – tool free and fast.
Insulation Class II & Class 2/LPS - high electrical safety.
Wide temperature range –20 to +47 °C – reliable in demanding environments.
Perfect for control systems, IoT gateways, door and access modules, as well as KNX/Modbus peripherals.

Technical specifications

Output voltage 12 V DC
Output current: 1.25 A
Power output 15 W
Voltage setting range 10.8–13.8 V
Ripple & noise: 120 MVP-p
Voltage Tolerance: ± 2 %
Line regulation: ±1 %
Load regulation: ±1 %
INPUT VOLTAGE 90–264 V AC / 127–370 VDC
Frequency range 47 - 63 Hz
INRUSH CURRENT: 25 A @ 115 V/45 A @ 230 V.
AC POWER CONSUMPTION 0.5 A @ 115 V/0.25 A @ 230 V.
Efficiency: 85%
Overload protection 110-145% (Hiccup mode, auto recovery)
Overvoltage protection (OVP) 14.2 - 16.2 V
Short circuit protection: Yes (auto-recovery)
Working temperature: -20 °C to +47 °C
Storage temperature: −40 °C to +85 °C.
Humidity: 20-90% RH (non-condensing)
MTBF 1,000,000 H (MIL-HDBK-217F)
Vibration: IEC60068-2-6 (10–500 Hz, 2G)
Operating height: Up to 5000 m.
Insulation Class II
Class 2 / LPS
UL62368-1, EN62368-1
EMC (emission/immunity): EN55032 Class B / EN61000-4-2/3/8/11/5/6/4
Insulation voltage 4 kV/AC
Dimensions 18 × 90 × 58 mm
Weight: 78 g
Mounting: DIN rail (TH35)
AC/N (terminal 3), AC/L (terminal 4) connections (input)
Connections (output): +V (1), −V (2)

Nominal input voltage: 124 - 370 V/DC

Product type: Rail mounted PSU (DIN)

Min. input voltage: 90 V AC
127 V DC

Output voltage: 12 V DC

Input voltage (max.): 264 V AC
370 V DC

Max. output current: 1.25 A

Output current (max.) - rounded: 1.25 A

: 15 W

Output type (power supply units): Adjustable

Output voltage (nominal): 12 V DC

No. of outputs: 1 x

Connection: Clamp

Dim: (L x W x H) 58 x 18 x 90 mm

Weight: 78 g

Output voltage (max.): 13.8 V

Output voltage (min.): 10.8 V

Operating temperature (max.): +47 °C

Manufacturer part #: DN-PWR-SST-1512

Content: 1 pc(s)

PSU features: Adjustable voltage output

Width: 18 mm

Height: 90 mm

Length: 58 mm

: IP20

Max. temperature: 47 °C

Min. temperature: -20 °C

Type: DN-PWR-SST-1512 | Ultra-Slim 12V

Efficiency: 85 %

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3791049 Digitus DN-PWR-SST-1512 Rail mounted PSU (DIN) 12 V DC 1.25 A 15 W No. of outputs:1 x Content 1 pc(s)

Description

The Digitus DN-PWR-SST-1512 is an especially compact 12 V rail power supply with 15 W power. With a width of just 18 mm, it is ideal for installations where every millimeter counts - for example in wiring closets, automation or IoT switching cabinets. The broad input voltage range of 90–264 V AC / 127–370 V DC makes a universal application possible. At the output the power supply provides a stable 12 V DC voltage with 1.25 A, Ideal for control systems, sensors, modules and numerous electronic systems. The output voltage can also be finely adjusted between 10.8 and 13.8 V. Thanks to integrated short-circuit, overload and overvoltage protection the power supply works safely and reliably even in demanding environments. With Insulation Class II, Class 2/LPS and tested EMC-conformity the DN-PWR-SST-1512 fulfills high demands in the control cabinet and building installation sector. It is suitable Ideal for applications in building automation, for example for the supply of 12-V sensors and actuators, control modules such as relay cards or low-Power actuators as well as door intercoms, switching modules and Smart home logic. In industrial and automation technology it supplies PLC sub-modules, I/O modules, RS485/RS232 communication devices, mini-PLCs or relay field modules. Also excellent for IoT and Edge applications such as gateways, protocol converters, edge sensors, low Power WLAN or mobile modules and microcontroller applications. In safety and access control technology, it serves as a stable supply for door opener modules, card and RFID readers as well as intercom and intercom systems.

This text is machine translated.
