Name: Digitus DS-55507 HDMI / RJ45 Adapter [1x HDMI socket - 1x HDMI socket] Black 4K UHD
Brand: Digitus
SKU: 2860266
Availability: InStock

Two black HDMI extender boxes by Digitus with connections for HDMI and network cables, lying side by side.

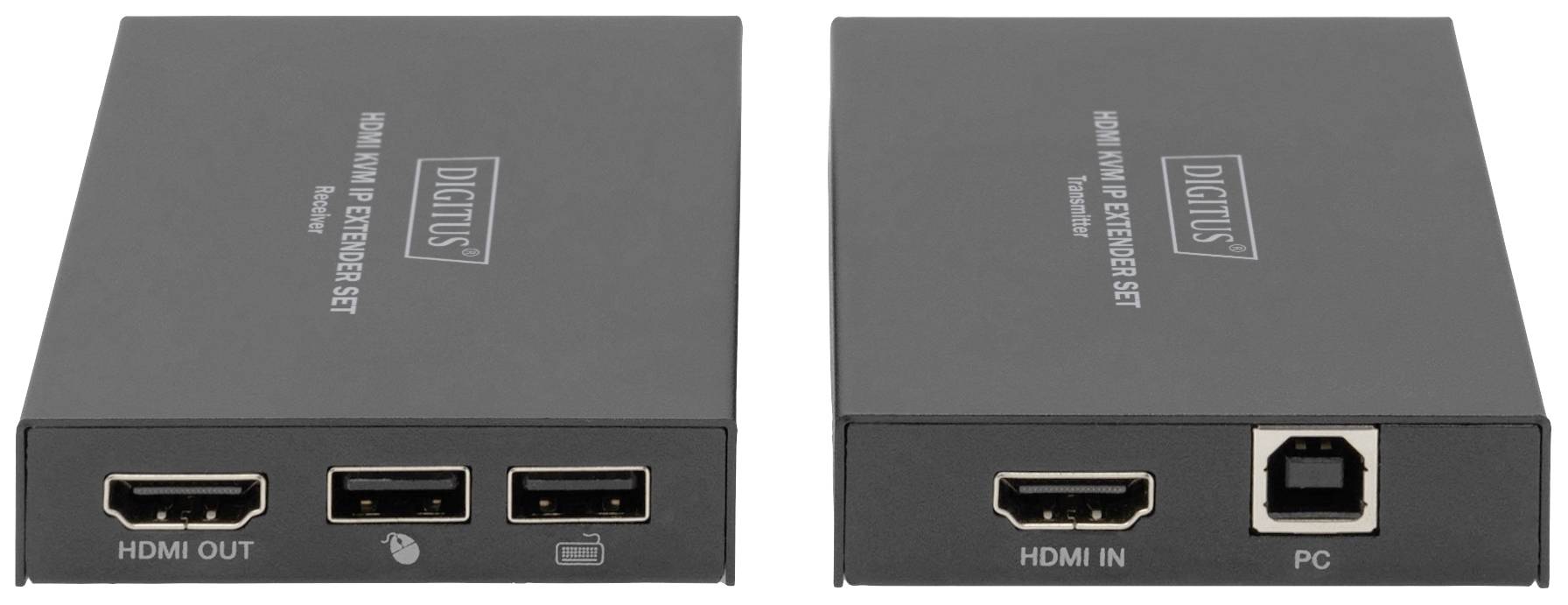

Two black Digitus HDMI extenders. One shows two HDMI ports and an RJ45 socket, the other an HDMI and a USB port.

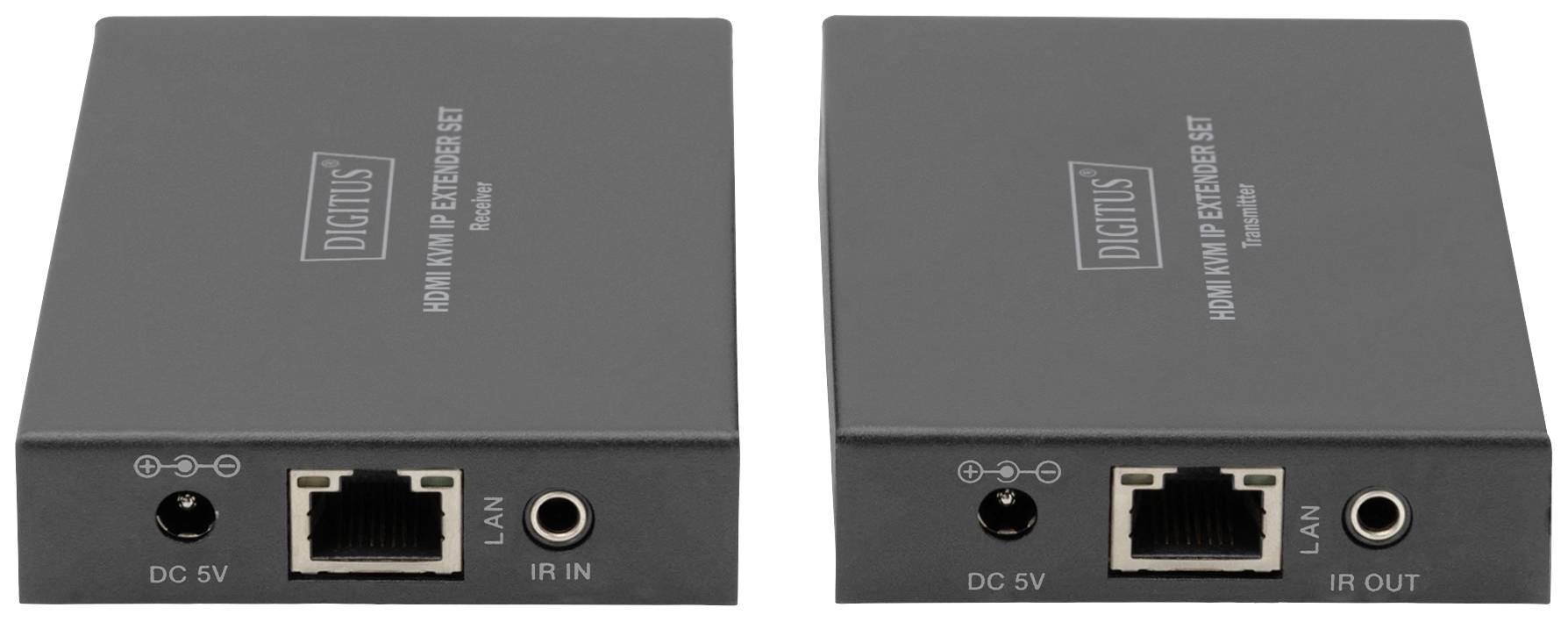

Two black HDMI / AV IP extenders with connections for DC 5V, LAN and IR. Left: 'IR IN', Right: 'IR OUT'.

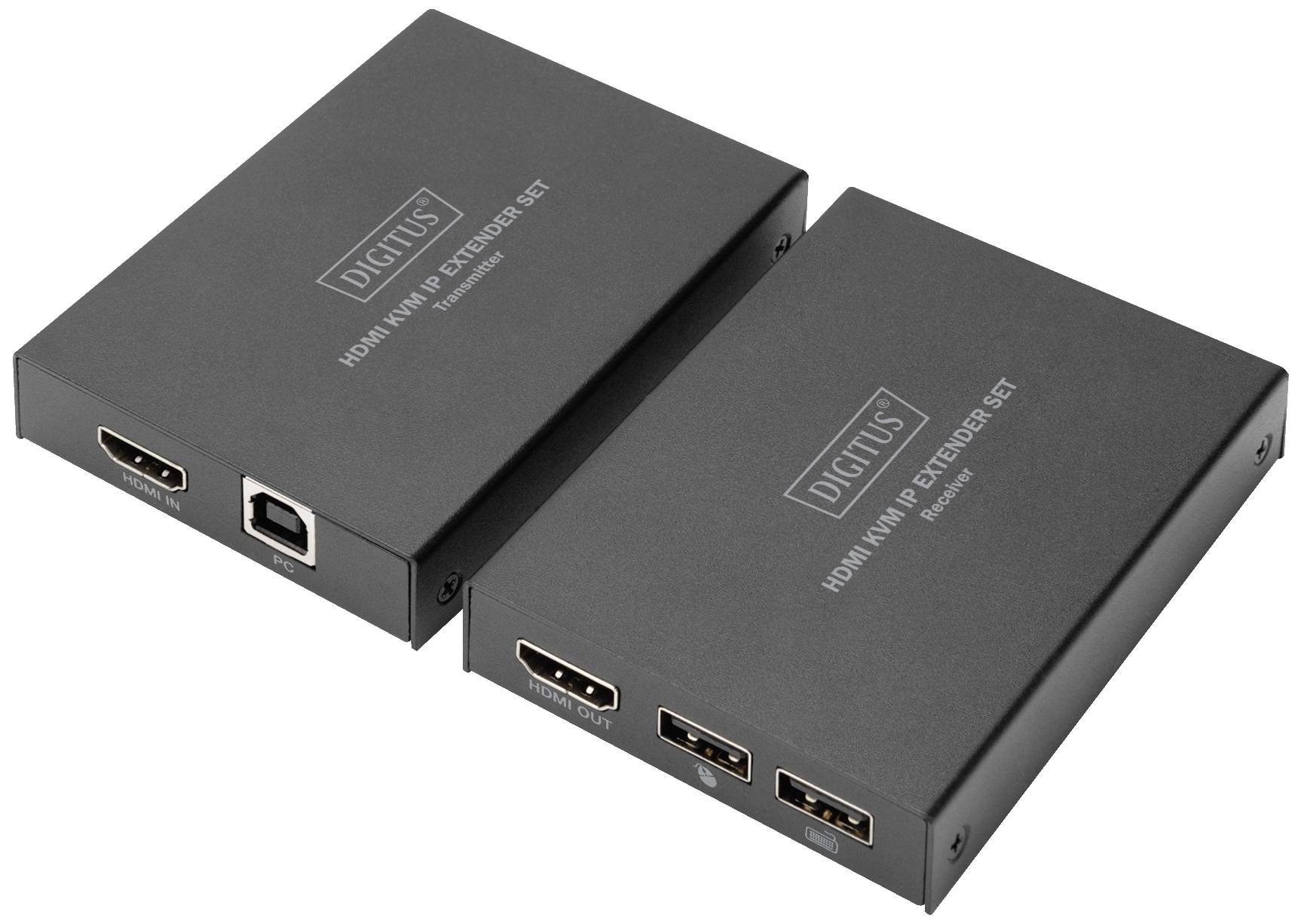

'Digitus HDMI KVM Extender Set' on two black devices, one with HDMI and network output, the other with HDMI and USB ports.

1/4

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

6 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 169.99 / piece)

€ 169.99

incl. VAT

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Digitus DS-55507 HDMI / RJ45 Adapter [1x HDMI socket - 1x HDMI socket] Black 4K UHD

Extends the maximum HDMI cable length to up to 150 m using a simple network cable
Extension of the signal (unlimited distance) via the existing local network infrastructure or by means of commercially available network switches (IP-connection)
Supports Full-HD video resolutions (1920x1200/60 Hz, 4:4:4)

Technical specifications

HDMI 1.4
6.75 Gbps video bandwidth
Supports Full HD, 1920x1200/60 Hz, 4:4:4
HDCP 1.4
Supports CAT 5e, 6, 6A, 7, 8 network cables
Maximum transmission distance: 150 m (point-to-point connection)
Supports H.256 encoding/decoding
USB 1.1
Compression: H.265
Connections in the transmitter unit:
1x HDMI input (1920x1200/60Hz) - connection signal source
1x RJ45 output - connection CAT transfer cable
1x USB-B input - connection Host PC for using the KVM-functionality
1x IR output - connection of IR transmitter
1x power supply input (DC 5V/1A) - connection of external power supply
Connections receiver unit:
1x HDMI output (1920x1200/60Hz) - connection output device
1x RJ45 input - connection CAT transfer cable
2x USB-A (1.1) input - mouse & keyboard connection
1x IR input - IR receiver connection
1x power supply input (DC 12V/1A) - connection of external power supply
ESD Protection
Operating temperature -10-50°
Power consumption: Transmitter approx. 1.4W, receiver approx. 1.7W
Housing: metal
Dimensions (1 unit): L 9.15 x W 6.7 x H 1.75 cm
Weight: transmitter 155 g, receiver 150 g.
Colour, black
KVM: No.
Power over Ethernet (PoE): No.

Product type: TV/monitor Adapter

Connection type: HDMI
RJ45

No. of A connectors: 1 x

Type A: HDMI socket

No. of B connections: 1 x

Type B: HDMI socket

Factory colour: Black

Video resolution: 1920 x 1080 Pixel
2040 x 1080 Pixel
2560 x 1440 Pixel
3840 x 2160 Pixel

Cable features: 4K UHD

Cable use: TV/monitor

Version: Adapter

Range of use: Monitors/TV adapters

HDMI version: HDMI 2.0

Cable version: HDMI Premium High Speed

Cable specs: HDMI 2.0

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2860266 Digitus DS-55507 HDMI / RJ45 Adapter [1x HDMI socket - 1x HDMI socket] Black 4K UHD

Description

The HDMI KVM IP Extender Set comprises of a transmission unit (local location) as well as a receiver unit (remote location). The HDMI signal can be extended to a maximum distance of 150 m via a network cable (CAT 5e or higher) (point-to-point connection). The HDMI signal can also be extended to an unlimited distance over the existing network infrastructure or using standard IP network switches (IP connection). The highest supported video resolution is Full HD (1920x1200/60 Hz, 4:4:4). Similarly, it enables the comfortable access to a computer (mouse & keyboard) via the USB-ports on the receiver unit. It is perfect for industrial, commercial and public applications.

This text is machine translated.
