Name: DIN 43650 Black Molex WOD Industrial Solution Pins:3 1210230341 Molex Content: 1 pc(s)
Brand: Molex
SKU: 2447154
Availability: InStock

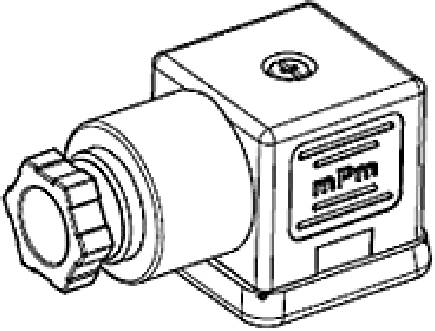

A rectangular, brown electrical plug socket with a visible screw on top.

1/2

Packaging type

Bulk

Product type

Square connector

Type

A standard

Connection

Plug

IP rating

IP65

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

33 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2.79 / piece)

€ 2.79

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

DIN 43650

mPm DIN Valve Connector, Form A-18mm, PG9 Internal Threads, 3 Pole Plus Ground Terminal, 250V AC/300V DC, Black, NBR Profiled Gasket and Screw, Bulk Pack, Mounted
This text is machine translated.

Our service for you

Technical specifications

Shape 18 mmCoupling type: Internal threadMaterial - Connector housing: PolyamideMaximum current per connection: 16 A.Orientation: 90°Pitch - plug-in range 18 mmType: Connector for field mounting

Packaging type: Bulk

Pins: 3

Conductor material: Brass silver plated

Product type: Square connector

Type: A standard

Connection: Plug

: IP65

Number of pins: 3

Nominal voltage: 250 V AC
300 V DC

Total no. of pins: 3

Weight: 24.914 g

Manufacturer part #: 1210230341

Factory colour: Black

Content: 1 pc(s)

Cable Ø: 8 mm

RoHS-compliant: Yes

Standard: DIN

Max. temperature: +90 °C

Min. temperature: -40 °C

Type: Molex WOD Industrial Solution

Fastening type: PG9

Engineering Part No: C18309N21

Engineering Series Name: DIN FIELD ATT.

Engineering Series No: 121023

Documents & Downloads

Datasheet

Datasheet 2447154 DIN 43650 Black Molex WOD Industrial Solution Pins:3 1210230341 Molex Content: 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2447154 DIN 43650 Black Molex WOD Industrial Solution Pins:3 1210230341 Molex Content: 1 pc(s)

Circuit diagramm

Circuit diagramm 2447154 DIN 43650 Black Molex WOD Industrial Solution Pins:3 1210230341 Molex Content: 1 pc(s)

Description

mPm DIN Valve Connector, Form A-18mm, PG9 Internal Threads, 3 Pole Plus Ground Terminal, 250V AC/300V DC, Black, NBR Profiled Gasket and Screw, Bulk Pack, Mounted

Description

mPm DIN Valve Connector, Form A-18mm, PG9 Internal Threads, 3 Pole Plus Ground Terminal, 250V AC/300V DC, Black, NBR Profiled Gasket and Screw, Bulk Pack, Mounted
