Name: DIN 43650 Black Molex WOD Industrial Solution Pins:3 1210230377 Molex Content: 1 pc(s)
Brand: Molex
SKU: 2447155
Availability: SoldOut

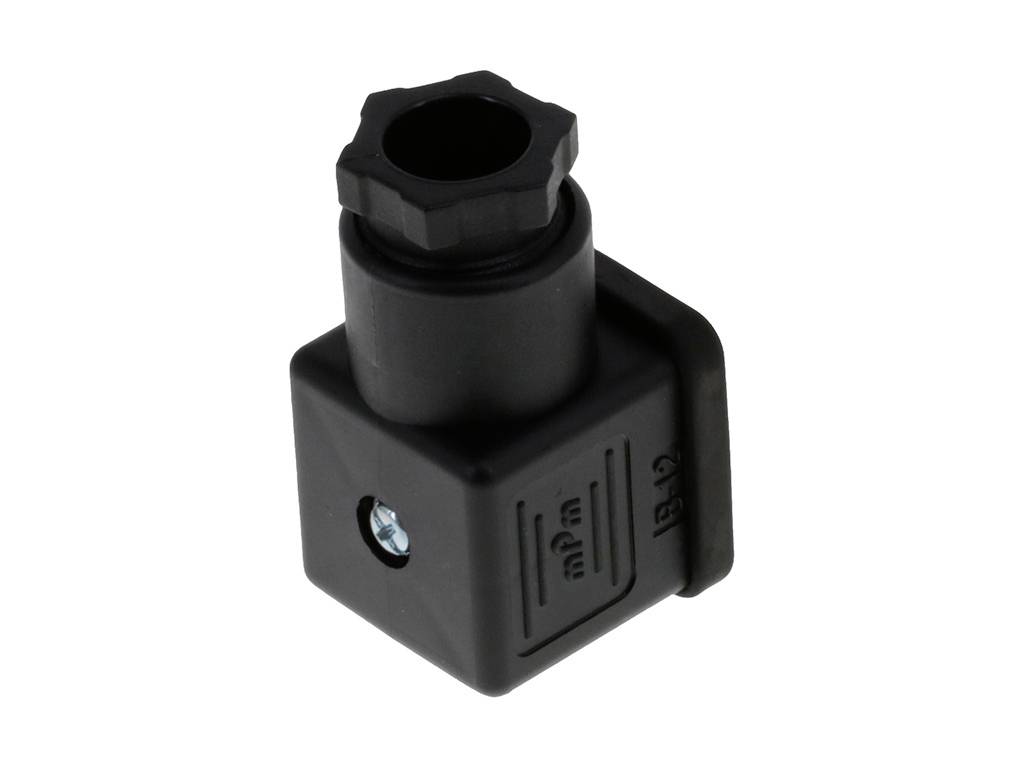

A black square-shaped angled plug with a screw terminal, suitable for industrial applications.

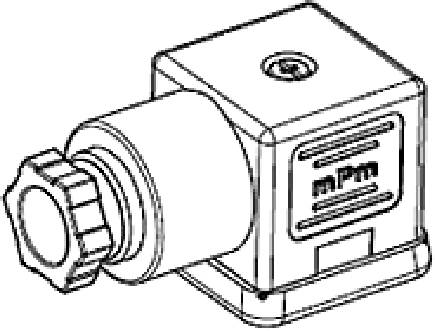

Technical drawing of a valve with a rotary knob on the left side and a label 'mpm' on the front.

1/2

Image similar

Packaging type

Bulk

Product type

Square connector

Type

A standard

Connection

Connector

IP rating

IP65

IP67

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 2.99 / piece)

€ 2.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

DIN 43650

mPm DIN Valve Connector, Form A-18mm, PG11 Internal Threads, 3 Pole Plus Ground Terminal, 250V AC/300V DC, Black, Nitrile Gasket and Screw, Bulk Pack Mounted
This text is machine translated.

Our service for you

Technical specifications

Shape 18 mmCoupling type: Internal threadMaterial - Connector body: PolypropyleneMaximum current per connection: 16 A.Orientation: 90°Pitch - plug-in range 18 mmType: Connector for field mounting

Packaging type: Bulk

Pins: 3

Conductor material: Brass silver plated

Product type: Square connector

Type: A standard

Connection: Connector

: IP65
IP67

Number of pins: 3

Nominal voltage: 250 V AC
300 V DC

Total no. of pins: 3

Weight: 25.118 g

Manufacturer part #: 1210230377

Factory colour: Black

Content: 1 pc(s)

RoHS-compliant: Yes

Standard: DIN

Connector type: right angle

Max. temperature: +90 °C

Min. temperature: -40 °C

Type: Molex WOD Industrial Solution

Features: Built-in sealing

Fastening type: PG9

Engineering Part No: C18311N21

Engineering Series Name: DIN FIELD ATT.

Engineering Series No: 121023

Documents & Downloads

Datasheet

Datasheet 2447155 DIN 43650 Black Molex WOD Industrial Solution Pins:3 1210230377 Molex Content: 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2447155 DIN 43650 Black Molex WOD Industrial Solution Pins:3 1210230377 Molex Content: 1 pc(s)

Circuit diagramm

Circuit diagramm 2447155 DIN 43650 Black Molex WOD Industrial Solution Pins:3 1210230377 Molex Content: 1 pc(s)

Description

mPm DIN Valve Connector, Form A-18mm, PG11 Internal Threads, 3 Pole Plus Ground Terminal, 250V AC/300V DC, Black, Nitrile Gasket and Screw, Bulk Pack Mounted

Description

mPm DIN Valve Connector, Form A-18mm, PG11 Internal Threads, 3 Pole Plus Ground Terminal, 250V AC/300V DC, Black, Nitrile Gasket and Screw, Bulk Pack Mounted
