Name: DIN 43650 Black Molex WOD Industrial Solution Pins:3 1210230467 Molex Content: 1 pc(s)
Brand: Molex
SKU: 2447159
Availability: InStock

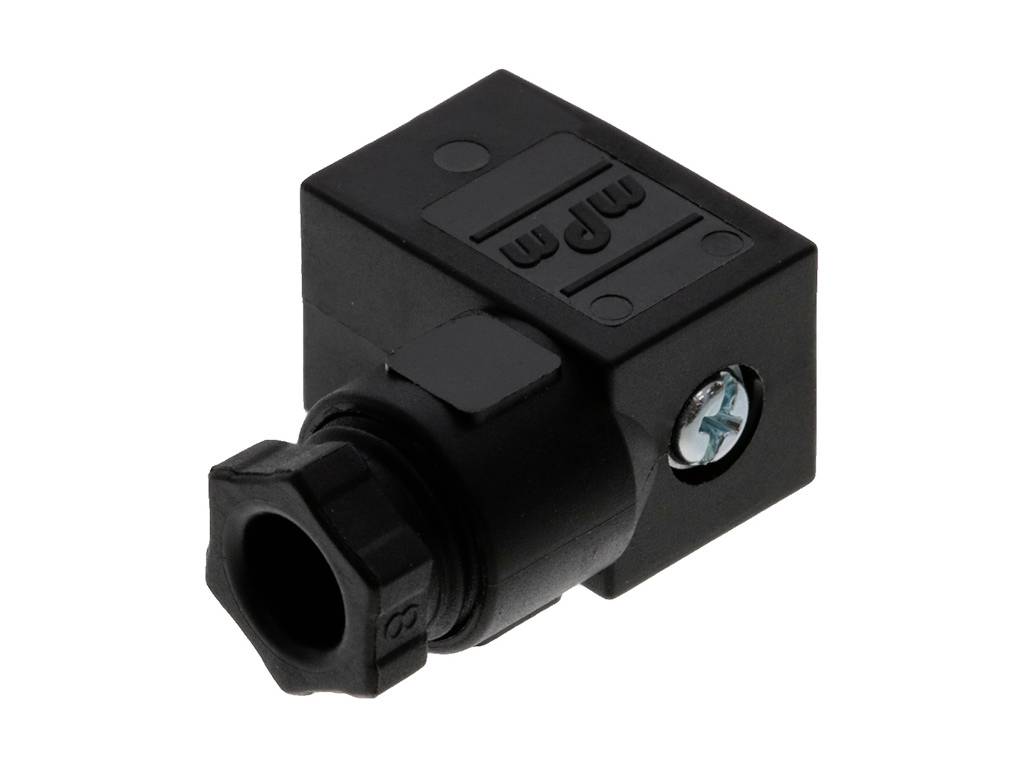

A rectangular black plastic component with a screw and cable connection. Potential use in electronic devices.

1/2

Image similar

Packaging type

Bulk

Product type

Square connector

Type

C standard

Connection

Connector

IP rating

IP65

IP67

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

248 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 3.49 / piece)

€ 3.65

€ 3.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

DIN 43650

mPm DIN Valve Connector, Form C-Micro 9.4mm, PG7 Internal Threads, 3 Pole Plus Ground Terminal, 250V AC/300V DC, Black, Nitrile Flat Gasket and Screw, Bulk Pack Mounted
This text is machine translated.

Our service for you

Technical specifications

Shape: 9.4 mmCoupling type: Internal threadMaterial - Connector body: PolypropyleneMaximum current per connection: 16 A.Orientation: 90°Grid dimension - plug-in range: 9.4 mmType: Connector for field mounting

Packaging type: Bulk

Pins: 3

Conductor material: Brass silver plated

Product type: Square connector

Type: C standard

Connection: Connector

: IP65
IP67

Number of pins: 3

Nominal voltage: 250 V AC
300 V DC

Total no. of pins: 3 + PE

Weight: 10.886 g

Manufacturer part #: 1210230467

Factory colour: Black

Content: 1 pc(s)

RoHS-compliant: Yes

Standard: DIN

Max. temperature: +90 °C

Min. temperature: -40 °C

Type: Molex WOD Industrial Solution

Features: Built-in sealing

Fastening type: PG9

Leading contact (PE): Yes

Engineering Part No: C19307N62

Engineering Series Name: DIN FIELD ATT.

Engineering Series No: 121023

Documents & Downloads

Datasheet

Datasheet 2447159 DIN 43650 Black Molex WOD Industrial Solution Pins:3 1210230467 Molex Content: 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2447159 DIN 43650 Black Molex WOD Industrial Solution Pins:3 1210230467 Molex Content: 1 pc(s)

Circuit diagramm

Circuit diagramm 2447159 DIN 43650 Black Molex WOD Industrial Solution Pins:3 1210230467 Molex Content: 1 pc(s)

Description

mPm DIN Valve Connector, Form C-Micro 9.4mm, PG7 Internal Threads, 3 Pole Plus Ground Terminal, 250V AC/300V DC, Black, Nitrile Flat Gasket and Screw, Bulk Pack Mounted

Description

mPm DIN Valve Connector, Form C-Micro 9.4mm, PG7 Internal Threads, 3 Pole Plus Ground Terminal, 250V AC/300V DC, Black, Nitrile Flat Gasket and Screw, Bulk Pack Mounted
