Image similar
Image similar

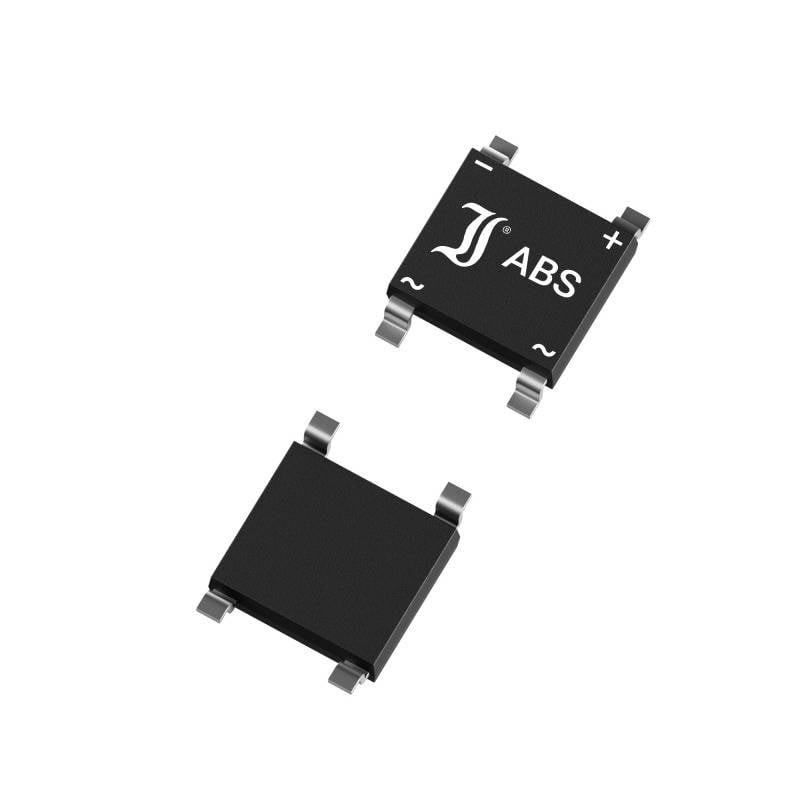

Diotec ABS15D Diode bridge SO-DIL ABS 4mm 200 V 2 A
Part number:
Item no:
Datasheet (PDF)
4017 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
100
-
€ 0.05742
300
9% = € 0.01
€ 0.05219
500
13% = € 0.01
€ 0.05010
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 100
Total (€ 0.05742 / piece)
€
Technical specifications
- Type SMDHousing: SO-DIL ABS 4mmPeriodic Peak Reverse Voltage - VRRM 200 VContinuous current - IFAV 2.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 1500 nsSurge current - IFSM 50.00 AForward voltage - VF 1.10 VIF 2.00 AReverse current - IR 5,000 µAVR 200 VLock layer capacity - CJ 15 pFVR 4 V
- Type
ABS15D
- Enclosure
SO-DIL ABS 4mm
- Manufacturer
Diotec
- U(RRM)
200 V
- Forward current I(F)
2 A
- Forward voltage U(F)
1.10 V
- I(FSM) 50Hz
50 A
- Reverse leakage current I(r)
5 µA
- Operating temperature (max.)
150 °C
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Product type
Diode bridge
Documents & Downloads
Datasheet
Datasheet 2809054 Diotec ABS15D Diode bridge SO-DIL ABS 4mm 200 V 2 A
Description
Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
