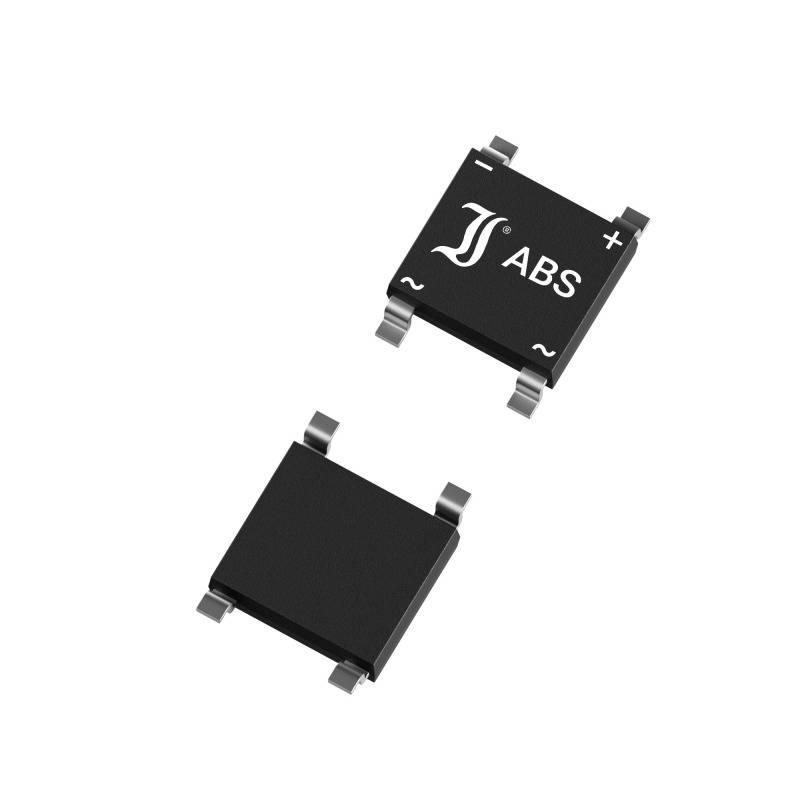

An electronic component labelled 'ABS' on a component, set against a white background, consisting of two square black chips.

An electronic component labelled 'ABS' on a component, set against a white background, consisting of two square black chips.

Image similar

Product type

Diode bridge

Enclosure

SO-DIL ABS 4mm

U(RRM)

1200 V

Forward current I(F)

2 A

Forward voltage U(F)

1.10 V

Datasheet (PDF)

Diotec

Fast track dispatch on Wed 14 Oct

4879 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 100

Total (€ 0.07345 / piece)

€ 7.35

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Diode bridge

Our service for you

Technical specifications

Type SMDHousing: SO-DIL ABS 4mmPeriodic Peak Reverse Voltage - VRRM 1200 VContinuous current - IFAV 2.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 1500 nsSurge current - IFSM 50.00 AForward voltage - VF 1.10 VIF 2.00 AReverse current - IR 5,000 µAVR 1000 VLock layer capacity - CJ 15 pFVR 4 V

Type: ABS15S

Product type: Diode bridge

Enclosure: SO-DIL ABS 4mm

Manufacturer: Diotec

Manuf. code: DIO

U(RRM): 1200 V

Forward current I(F): 2 A

Forward voltage U(F): 1.10 V

Forward voltage reference: 2.00 A

I(FSM) 50Hz: 50 A

I(FSM) 60Hz: 50.00 A

Reverse leakage current I(r): 5 µA

Reverse leakage current I(r) reference: 1000 V

Operating temperature (max.): 150 °C

Mounting type: Surface-mount

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Datasheet 2809059 Diotec ABS15S Diode bridge SO-DIL ABS 4mm 1200 V 2 A

User & Safety Instructions

User & Safety Instructions 2809059 Diotec ABS15S Diode bridge SO-DIL ABS 4mm 1200 V 2 A

Description

Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.

Description

Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
