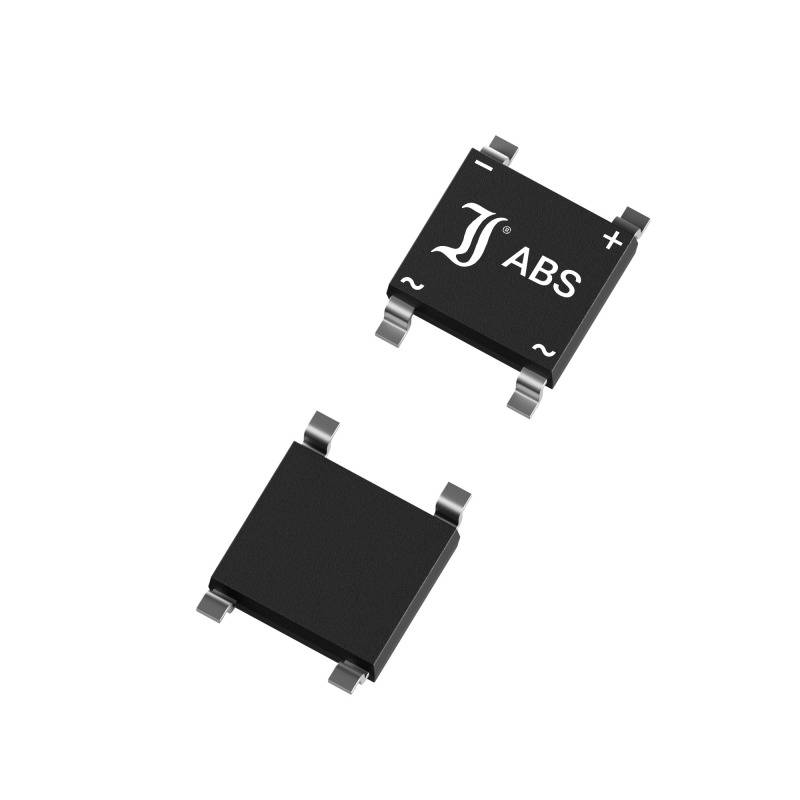

Two black SMD rectifiers marked 'J ABS'. Ideal for electronic circuits for converting alternating current to direct current.

Two black SMD rectifiers marked 'J ABS'. Ideal for electronic circuits for converting alternating current to direct current.

Image similar

Product type

Diode bridge

Enclosure

SO-DIL ABS 4mm

U(RRM)

2000 V

Forward current I(F)

2 A

Forward voltage U(F)

1.10 V

Datasheet (PDF)

Diotec

Dispatches on Tue, 12 Jan 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 90

Total (€ 0.16874 / piece)

€ 15.19

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type SMDHousing: SO-DIL ABS 4mmPeriodic Peak Reverse Voltage - VRRM 2000 VContinuous current - IFAV 2.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 1500 nsSurge current - IFSM 50.00 AForward voltage - VF 1.10 VIF 2.00 AReverse current - IR 5,000 µAVR 1000 VLock layer capacity - CJ 15 pFVR 4 V

Type: ABS15Y

Product type: Diode bridge

Enclosure: SO-DIL ABS 4mm

Manufacturer: Diotec

Manuf. code: DIO

U(RRM): 2000 V

Forward current I(F): 2 A

Forward voltage U(F): 1.10 V

Forward voltage reference: 2.00 A

I(FSM) 50Hz: 50 A

Reverse leakage current I(r): 5 µA

Reverse leakage current I(r) reference: 1000 V

Operating temperature (max.): 150 °C

Mounting type: Surface-mount

RoHS-compliant: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2809060 Diotec ABS15Y Diode bridge SO-DIL ABS 4mm 2000 V 2 A

User & Safety Instructions

User & Safety Instructions 2809060 Diotec ABS15Y Diode bridge SO-DIL ABS 4mm 2000 V 2 A

Description

Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.

Description

Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
