Name: Diotec ABSF15M Diode bridge SO-DIL ABS 4mm 1000 V 0.80 A
Brand: Diotec
SKU: 2809068
Availability: BackOrder

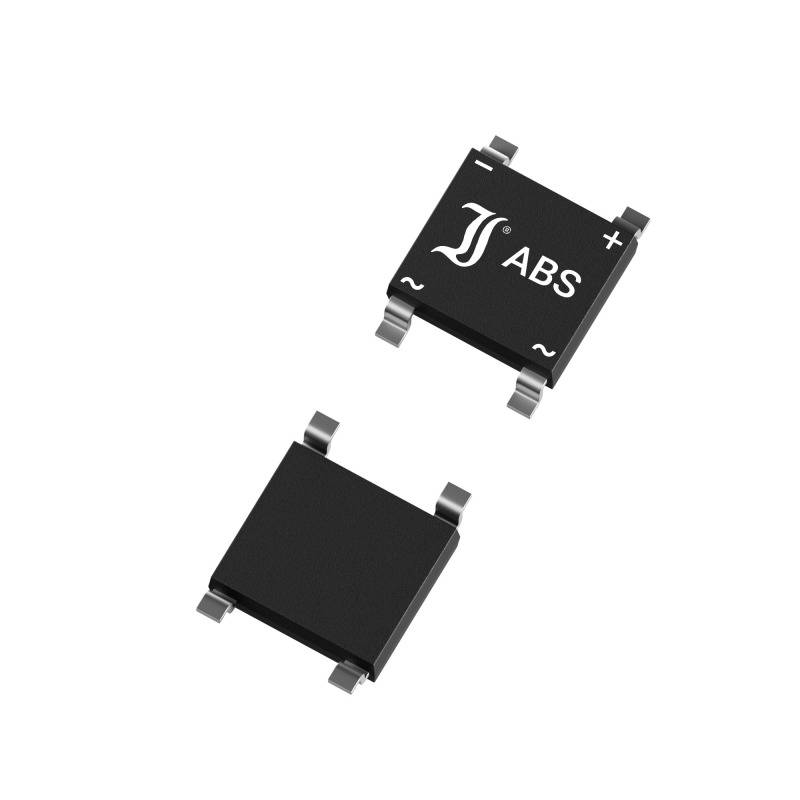

Two electronic components with four pins, each represented as a chip. One chip is labelled 'J ABS' and symbolises electrical connections.

Image similar

Product type

Diode bridge

Enclosure

SO-DIL ABS 4mm

U(RRM)

1000 V

Forward current I(F)

0.80 A

Forward voltage U(F)

1.30 V

Datasheet (PDF)

Dispatches on Mon 7 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 300

Total (€ 0.08729 / piece)

€ 26.19

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type SMDHousing: SO-DIL ABS 4mmPeriodic Peak Reverse Voltage - VRRM 1000 VContinuous current - IFAV 1.50 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 150 nsSurge current - IFSM 50.00 AForward voltage - VF 1.30 VIF 0.80 AReverse current - IR 2,000 µAVR 1000 VLock layer capacity - CJ 15 pFVR 4 V

Type: ABSF15M

Product type: Diode bridge

Enclosure: SO-DIL ABS 4mm

Manufacturer: Diotec

Manuf. code: DIO

U(RRM): 1000 V

Forward current I(F): 0.80 A

Forward voltage U(F): 1.30 V

Forward voltage reference: 0.80 A

I(FSM) 50Hz: 50 A

Reverse leakage current I(r): 2 µA

Reverse leakage current I(r) reference: 1000 V

Operating temperature (max.): 150 °C

Mounting type: Surface-mount

RoHS-compliant: Yes
