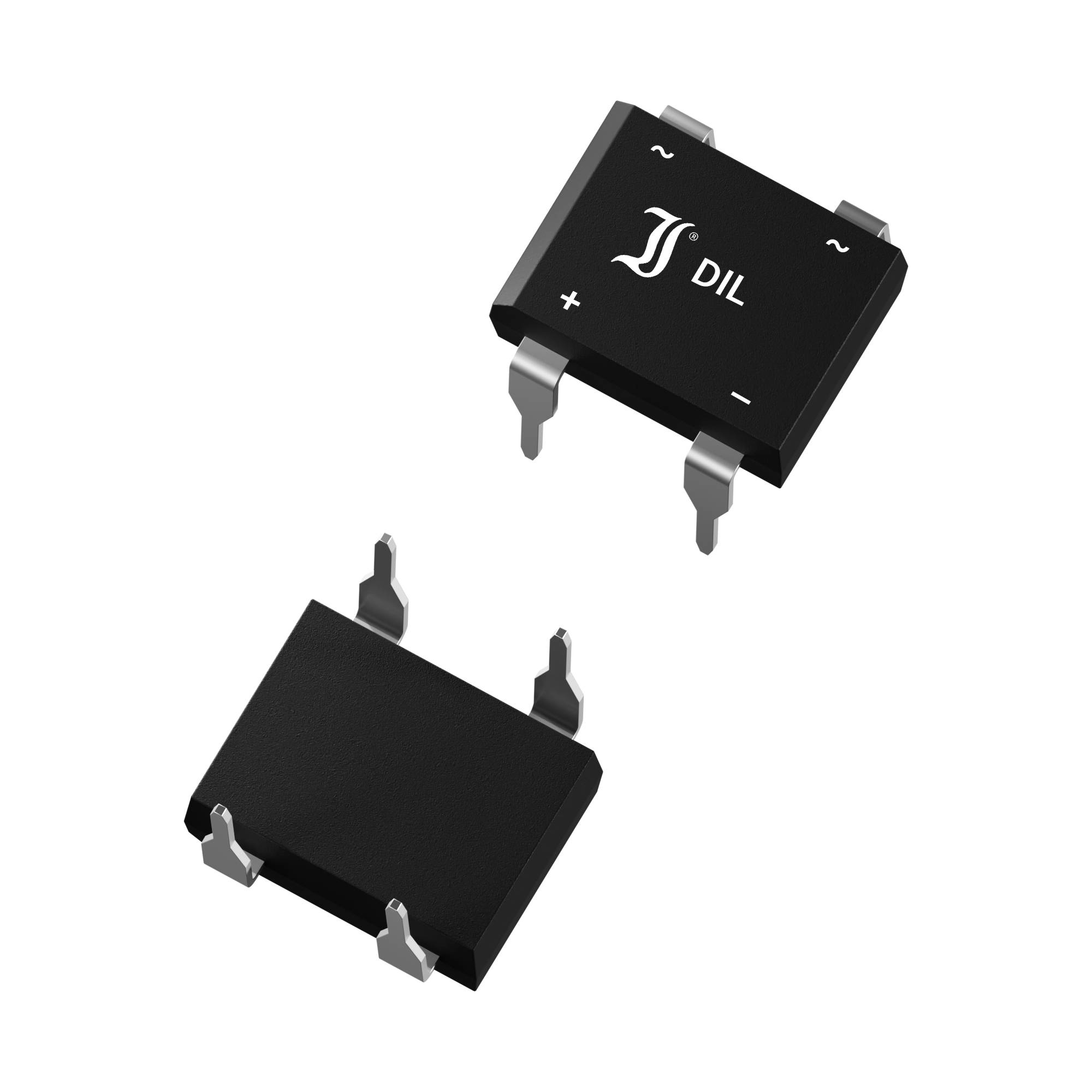

Two black electronic components in a DIL package. They each have four pins and display a '+' and '-' symbol on the top surface.

Two black electronic components in a DIL package. They each have four pins and display a '+' and '-' symbol on the top surface.

Image similar

Product type

Diode bridge

Enclosure

DIL

U(RRM)

600 V

Forward current I(F)

1 A

Forward voltage U(F)

1.30 V

Datasheet (PDF)

Diotec

Dispatches on Tue, 15 Dec 2026

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 150

Total (€ 0.19341 / piece)

€ 29.01

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type SMDDIL casingPeriodic Peak Reverse Voltage - VRRM 600 VContinuous current - IFAV 1.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 300 nsSurge current - IFSM 40.00 AForward voltage - VF 1.30 VIF 1.00 AReverse current - IR 5,000 µAVR 600 VLock layer capacity - CJ: PFVR V

Type: B250FS

Product type: Diode bridge

Enclosure: DIL

Manufacturer: Diotec

U(RRM): 600 V

Forward current I(F): 1 A

Forward voltage U(F): 1.30 V

Forward voltage reference: 1.00 A

I(FSM) 50Hz: 40 A

I(FSM) 60Hz: 40.00 A

Reverse leakage current I(r): 5 µA

Reverse leakage current I(r) reference: 600 V

Operating temperature (max.): 150 °C

Mounting type: Surface-mount

RoHS-compliant: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2809084 Diotec B250FS Diode bridge DIL 600 V 1 A

User & Safety Instructions

User & Safety Instructions 2809084 Diotec B250FS Diode bridge DIL 600 V 1 A

Description

Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.

Description

Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
