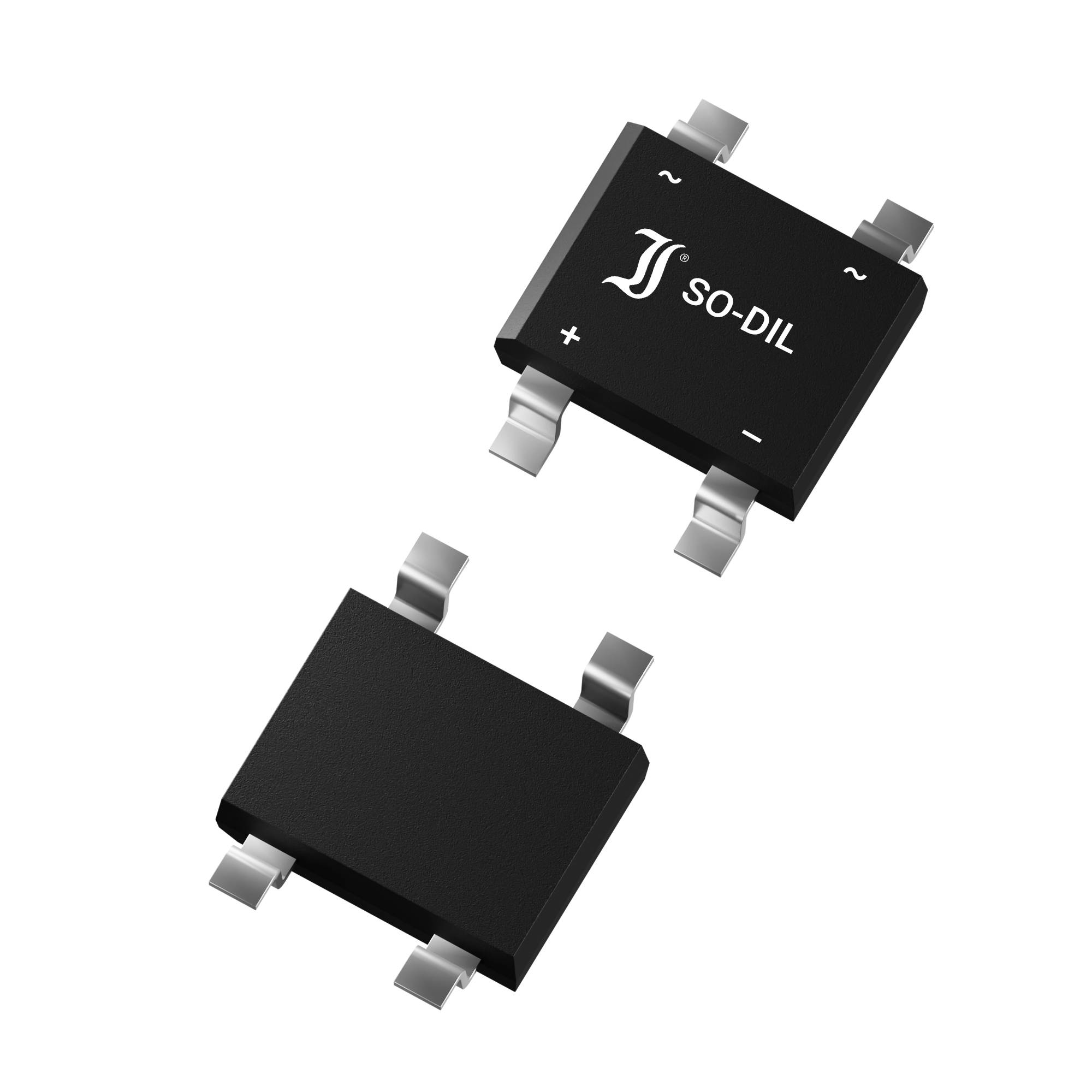

An electronic chip with four connection pins, labelled 'SO-DIL', indicates electrical polarity, suitable for circuitry.

An electronic chip with four connection pins, labelled 'SO-DIL', indicates electrical polarity, suitable for circuitry.

Image similar

Product type

Diode bridge

Enclosure

SO-DIL SLIM

U(RRM)

600 V

Forward current I(F)

1.50 A

Forward voltage U(F)

1.10 V

Datasheet (PDF)

Diotec

Dispatches on Fri 20 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 200

Total (€ 0.12547 / piece)

€ 25.09

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type SMDSO-DIL SLIM CASINGPeriodic Peak Reverse Voltage - VRRM 600 VContinuous current - IFAV 1.50 AJunction temperature - Tjmax 150 °CReverse delay time - trr: NsSurge current - IFSM 45.00 AForward voltage - VF 1.10 VIF 1.50 AReverse current - IR 5,000 µAVR 600 VLock layer capacity - CJ: PFVR V

Type: B250S15A

Product type: Diode bridge

Enclosure: SO-DIL SLIM

Manufacturer: Diotec

Manuf. code: DIO

U(RRM): 600 V

Forward current I(F): 1.50 A

Forward voltage U(F): 1.10 V

Forward voltage reference: 1.50 A

I(FSM) 50Hz: 45 A

I(FSM) 60Hz: 45.00 A

Reverse leakage current I(r): 5 µA

Reverse leakage current I(r) reference: 600 V

Operating temperature (max.): 150 °C

Mounting type: Surface-mount

RoHS-compliant: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2809085 Diotec B250S15A Diode bridge SO-DIL SLIM 600 V 1.50 A

Description

Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.

Description

Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
