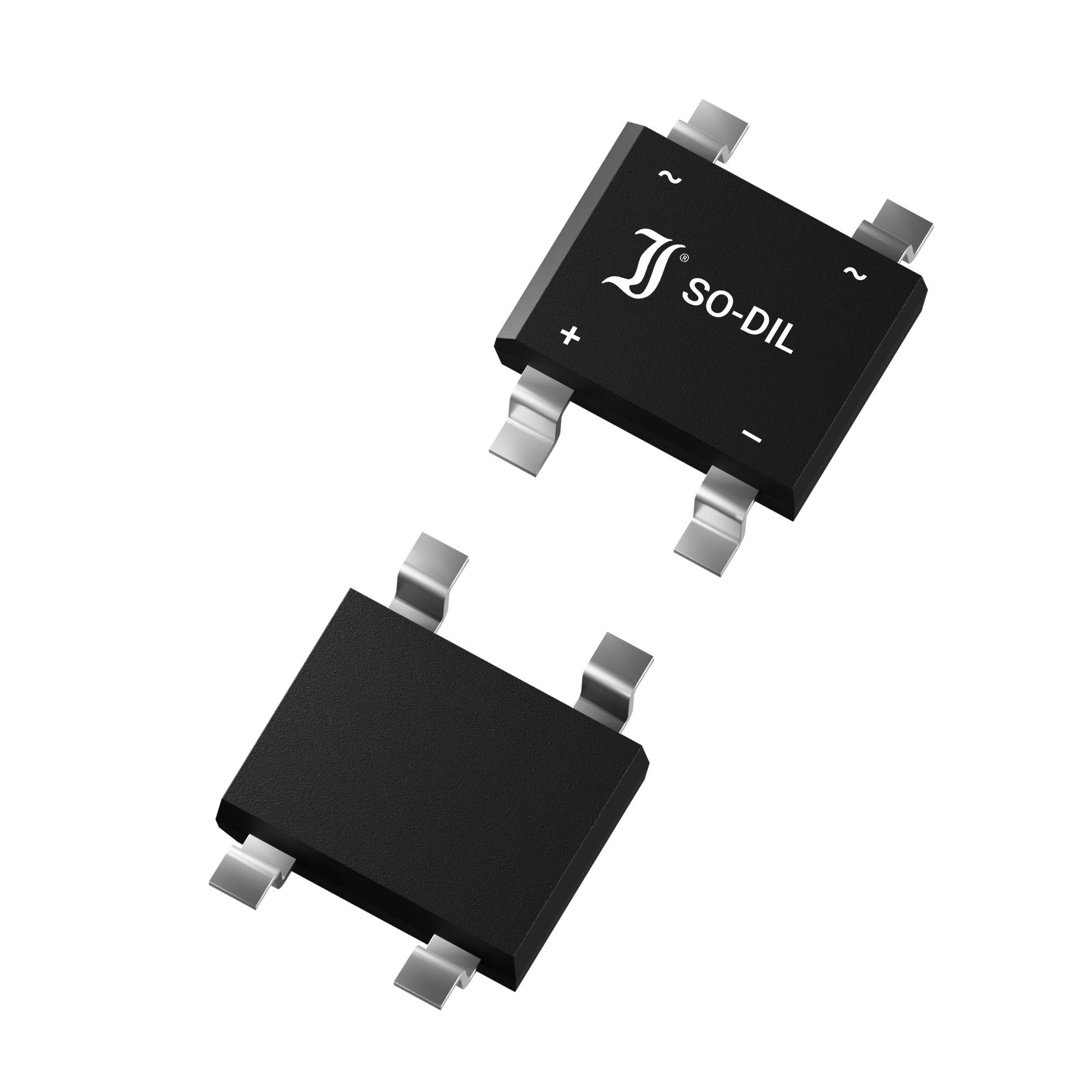

An electronic component with the inscription 'SO-DIL'. It has four connections and is black. An identical component is visible in the background.

An electronic component with the inscription 'SO-DIL'. It has four connections and is black. An identical component is visible in the background.

Image similar

Product type

Diode bridge

Enclosure

SO-DIL SLIM

U(RRM)

1000 V

Forward current I(F)

1.50 A

Forward voltage U(F)

1.10 V

Datasheet (PDF)

Diotec

Dispatches on Thu 19 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 200

Total (€ 0.12547 / piece)

€ 25.09

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type SMDSO-DIL SLIM CASINGPeriodic Peak Reverse Voltage - VRRM 1000 VContinuous current - IFAV 1.50 AJunction temperature - Tjmax 150 °CReverse delay time - trr: NsSurge current - IFSM 45.00 AForward voltage - VF 1.10 VIF 1.50 AReverse current - IR 5,000 µAVR 1000 VLock layer capacity - CJ: PFVR V

Type: B500S15A

Product type: Diode bridge

Enclosure: SO-DIL SLIM

Manufacturer: Diotec

Manuf. code: DIO

U(RRM): 1000 V

Forward current I(F): 1.50 A

Forward voltage U(F): 1.10 V

Forward voltage reference: 1.50 A

I(FSM) 50Hz: 45 A

Reverse leakage current I(r): 5 µA

Reverse leakage current I(r) reference: 1000 V

Operating temperature (max.): 150 °C

Mounting type: Surface-mount

RoHS-compliant: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2809108 Diotec B500S15A Diode bridge SO-DIL SLIM 1000 V 1.50 A

User & Safety Instructions

User & Safety Instructions 2809108 Diotec B500S15A Diode bridge SO-DIL SLIM 1000 V 1.50 A

Description

Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.

Description

Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
