Name: Diotec MYS380 Diode bridge MicroDIL 800 V 0.50 A
Brand: Diotec
SKU: 2810287
Availability: BackOrder

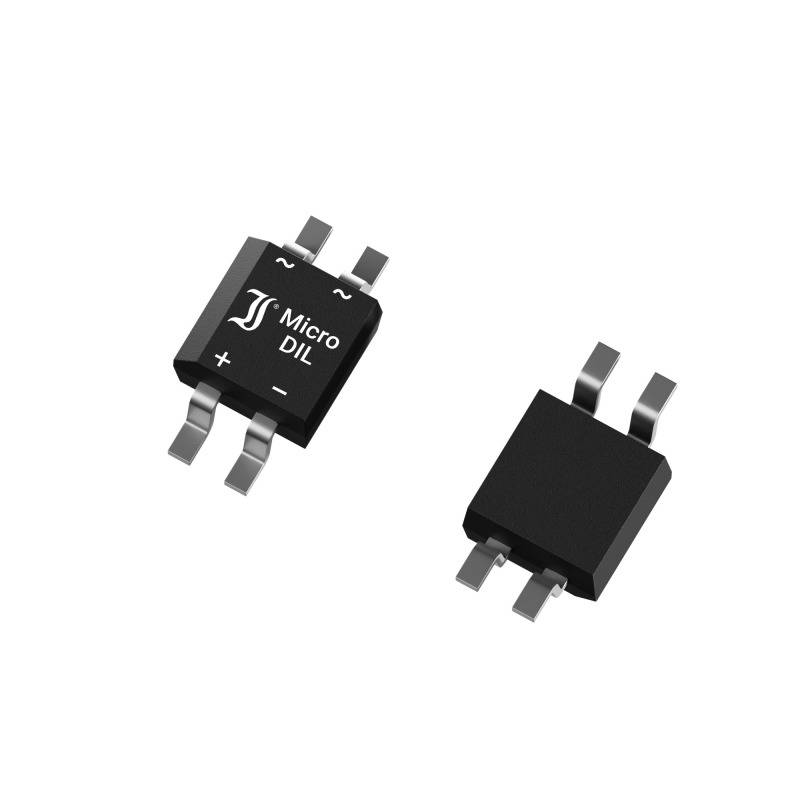

Two black electronic components with four flat plug contacts. One is marked 'Micro DIL'. They are intended for printed circuit board mounting.

Image similar

Product type

Diode bridge

Enclosure

MicroDIL

U(RRM)

800 V

Forward current I(F)

0.50 A

Forward voltage U(F)

1.20 V

Datasheet (PDF)

Dispatches on Fri, 9 Apr 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 4000

Multiple: 4000

Total (€ 0.19113 / piece)

€ 764.52

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Diode bridge

Our service for you

Technical specifications

Type: MYS380

Product type: Diode bridge

Enclosure: MicroDIL

Manufacturer: Diotec

Manuf. code: DIO

U(RRM): 800 V

Forward current I(F): 0.50 A

Forward voltage U(F): 1.20 V

Forward voltage reference: 0.50 A

I(FSM) 50Hz: 20 A

Reverse leakage current I(r): 5 µA

Reverse leakage current I(r) reference: 800 V

Operating temperature (max.): 150 °C

Mounting type: Surface-mount

RoHS-compliant: Yes
