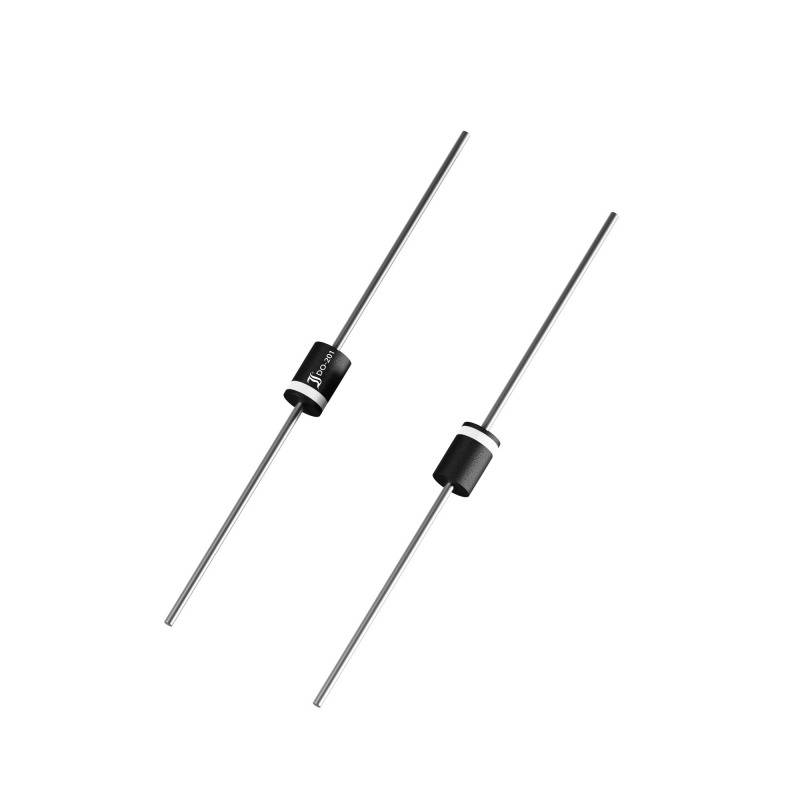

Two electronic diodes with black casings and silver connecting wires on a white background.

Two electronic diodes with black casings and silver connecting wires on a white background.

Image similar

Product type

Rectifier

Enclosure

DO 201

Forward current I(F)

3 A

Reverse voltage U(R)

800 V

Forward voltage U(F)

1.20 V

Datasheet (PDF)

Diotec

Fast track dispatch on Thu 15 Oct

574 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 250

Total (€ 0.1018 / piece)

€ 25.45

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type AxialDO-201 housingPeriodic Peak Reverse Voltage - VRRM 800 VContinuous current - IFAV 3.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 500 nsSurge current - IFSM 100.00 AForward voltage - VF 1.20 VIF 3.00 AReverse current - IR 5,000 µAVR 800 VLock layer capacity - CJ: PFVR V

Type: BY399

Product type: Rectifier

Enclosure: DO 201

Manufacturer: Diotec

Forward current I(F): 3 A

Reverse voltage U(R): 800 V

Forward voltage U(F): 1.20 V

Reverse leakage current I(r): 5 µA

Operating temperature (max.): 150 °C

Mounting type: Through-hole mounting

I(FSM) 50Hz: 100 A

Reverse recovery time T(rr): 500 ns

RoHS-compliant: Yes

UKCA: yes
