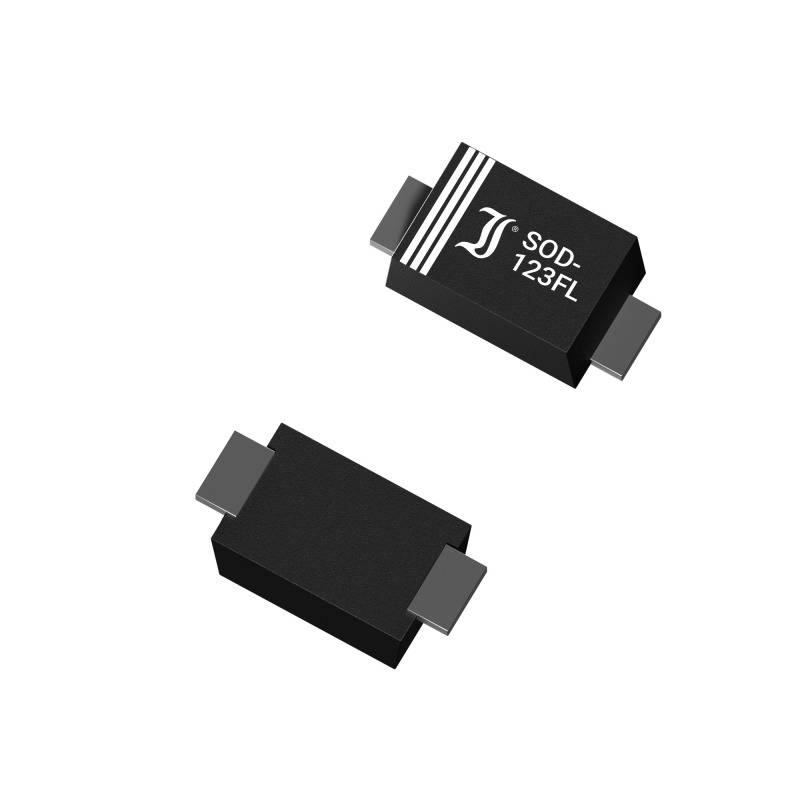

Two black SMD diodes with 'SOD-123FL' marking, rectangular shape, metal ends for printed circuit board mounting.

Two black SMD diodes with 'SOD-123FL' marking, rectangular shape, metal ends for printed circuit board mounting.

Image similar

Product type

Rectifier

Enclosure

SOD 123FL

Forward current I(F)

1 A

Reverse voltage U(R)

800 V

Forward voltage U(F)

1.30 V

Datasheet (PDF)

Diotec

Dispatches on Thu 22 Oct

1500 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 750

Total (€ 0.01628 / piece)

€ 12.21

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Rectifier

Our service for you

Technical specifications

Type SMDSOD 123FL housingPeriodic Peak Reverse Voltage - VRRM 800 VContinuous current - IFAV 1.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 500 nsSurge current - IFSM 27.00 AForward voltage - VF 1.30 VIF 1.00 AReverse current - IR 5,000 µAVR 800 VLock layer capacity - CJ: PFVR V

Type: FRL1K

Product type: Rectifier

Enclosure: SOD 123FL

Manufacturer: Diotec

Forward current I(F): 1 A

Reverse voltage U(R): 800 V

Forward voltage U(F): 1.30 V

Reverse leakage current I(r): 5 µA

Operating temperature (max.): 150 °C

Mounting type: Surface-mount

I(FSM) 50Hz: 27 A

Reverse recovery time T(rr): 500 ns

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Datasheet 2807808 Diotec Rectifier FRL1K SOD 123FL 800 V 1 A

User & Safety Instructions

User & Safety Instructions 2807808 Diotec Rectifier FRL1K SOD 123FL 800 V 1 A
